Art-Net interface for output of 8 universes on XLR
- Parallel DMX input possible (1024 channels)

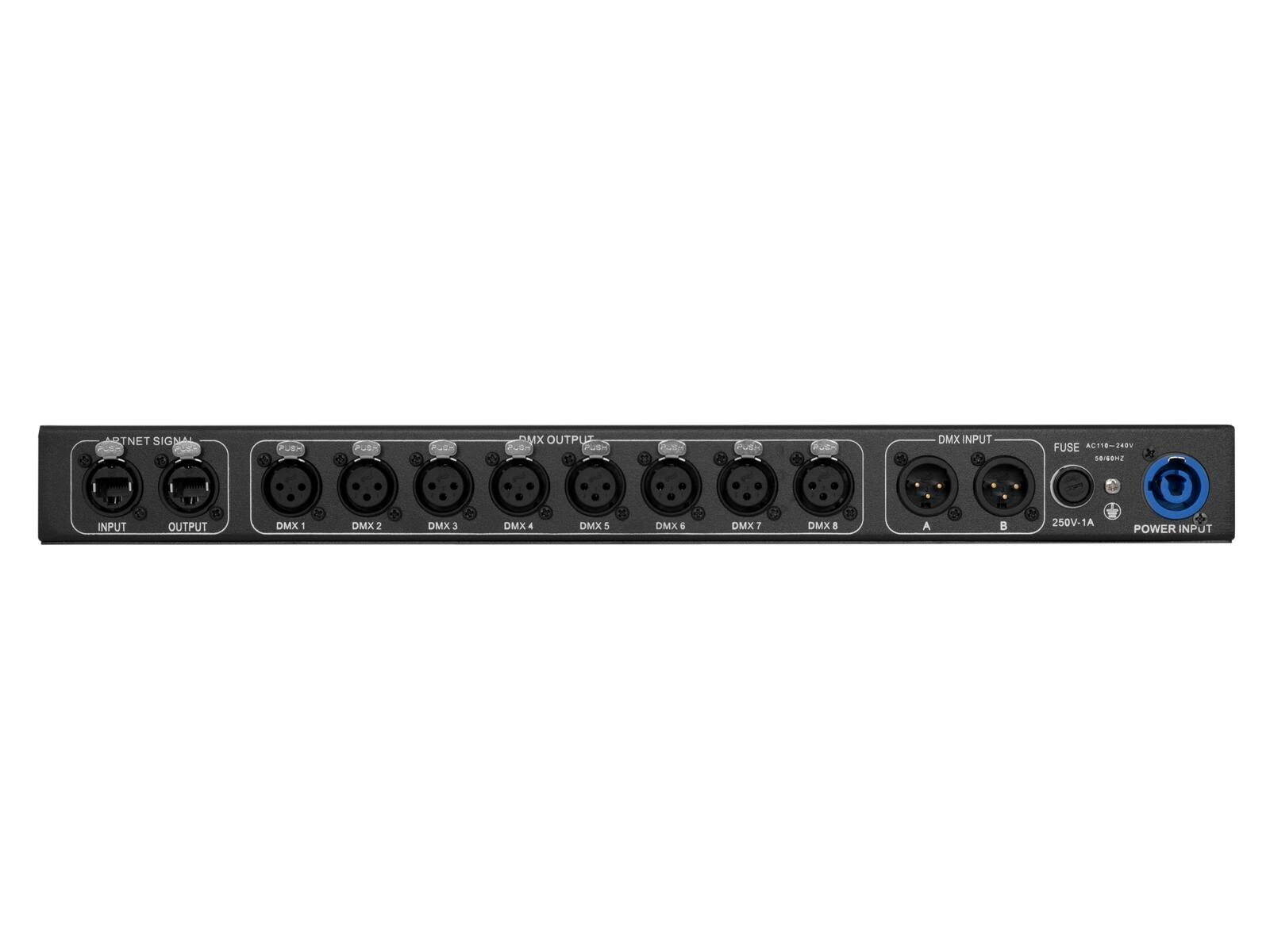

- 8 optically isolated XLR plugs (3-pin) for DMX output
- 2 XLR jacks (3-pin) for DMX input
- Variable data routing capabilities for all DMX outputs

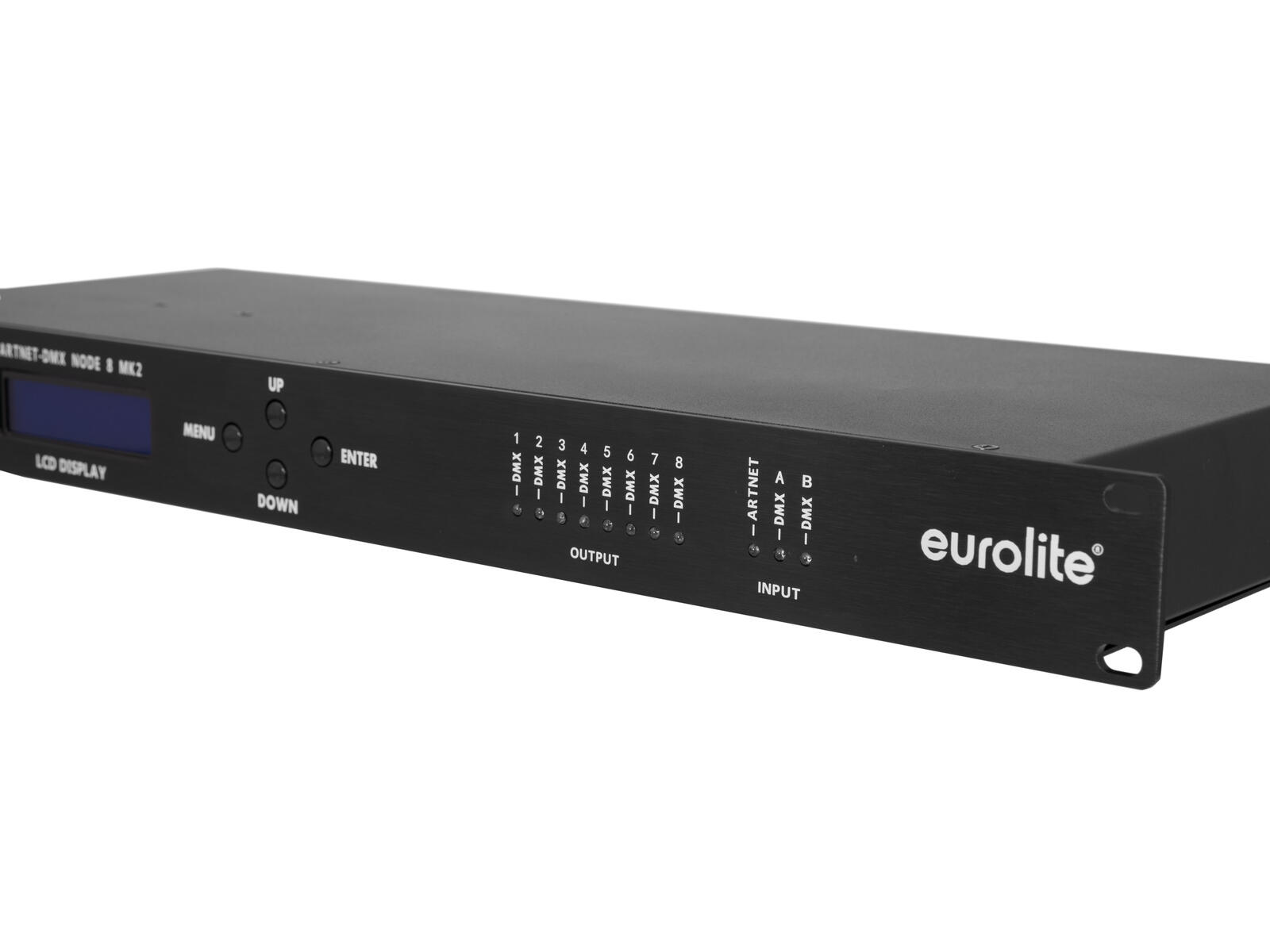

- User-friendly configuration directly at the front panel via 4 operating buttons and alphanumeric LCD screen (2 x 16 characters)
- LED indication for functions
- Splitter operation possible
- Can transmit up to 4096 DMX channels
- Control via Art-Net
- The device can be connected via RJ-45 (F) mounting version to the PC
- (19") 48.3 cm rack installation
Scope of delivery
- 1 x device
- 1 x user manual
- 1 x power cord
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 5 W |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| DMX channels: | Output 4096 |
| DMX input: | 2 x 3-pin XLR (M) mounting version |
| DMX output: | 8 x 3-pin XLR (F) mounting version |
| Network connection: | Protocol: Art-Net 3 via 2x RJ-45 (F) mounting version |
| Control: | Art-Net |
| Connections: | 2 x RJ-45 E-Con (F) mounting version |
| PC connect: | Via RJ-45 (F) mounting version |
| Housing design: | (19") 48.3 cm rack installation |
| Dimensions: | Width: 48.3 cm Depth: 17.5 cm Height: 4.45 cm |
| Weight: | 2.20 kg |
