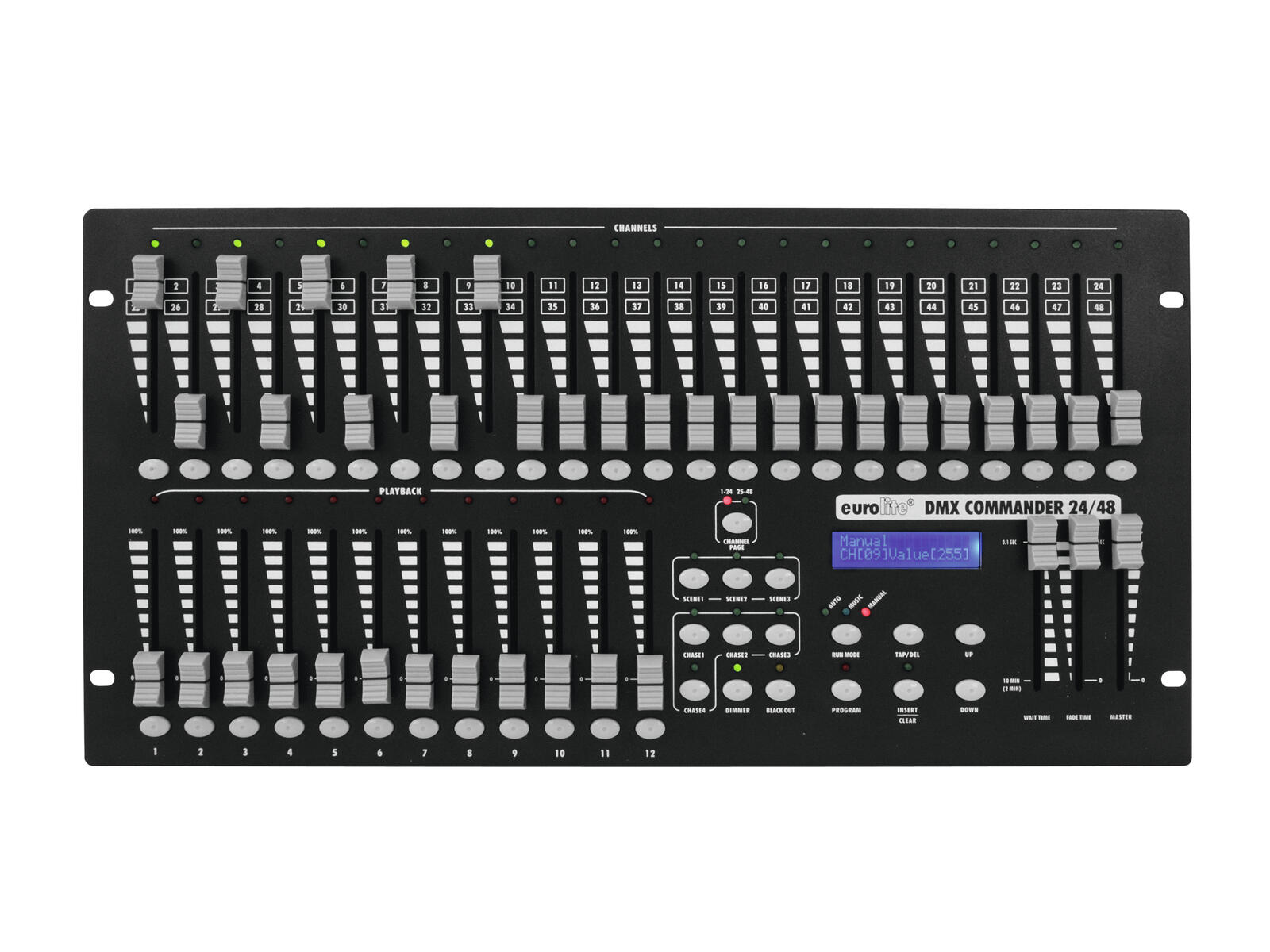

Theater light console for 48 DMX channels, brightness control for each scene
- Good visual control of scenes and chasers through intelligent status LEDs
- Blackout function
- Firmware update and data backup via USB connection
- Programmable 84 scenes/chases and distributed over 7 page/s
- Can transmit up to 48 DMX channels
- Control via DMX; sound to light via microphone; sound to light via RCA (F) mounting version; RDM
- (19") 48.3 cm rack installation 6 U
- For application areas such as: Clubs/dancing school; Trade fair and shop fitting; stage; theater; restaurants, bars and hotels
- Silent operation
Scope of delivery
- 1 x controller
- 1 x external mains adapter
- 1 x user manual
| Power supply: | 230 V AC, 50 Hz 9V DC 300 mA |
| Power consumption: | 3.00 W |
| Power connection: | Mains input via coaxial power connector (M) mounting version power supply cord with AC adapter (provided) |
| Programs: | Programmable 84 scenes/chases and distributed over 7 page/s |
| DMX channels: | Output 48 |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Control: | DMX; sound to light via microphone; sound to light via RCA (F) mounting version; RDM |
| Housing color: | Black |
| Color: | Black |
| Mounting depth: | 80 mm |
| Housing design: | (19") 48.3 cm rack installation 6 U |
| Dimensions: | Width: 48.3 cm Depth: 24.5 cm Height: 8.9 cm |
| Weight: | 3.95 kg |
| Noise classification: | Class 0 (no noise at all) |
