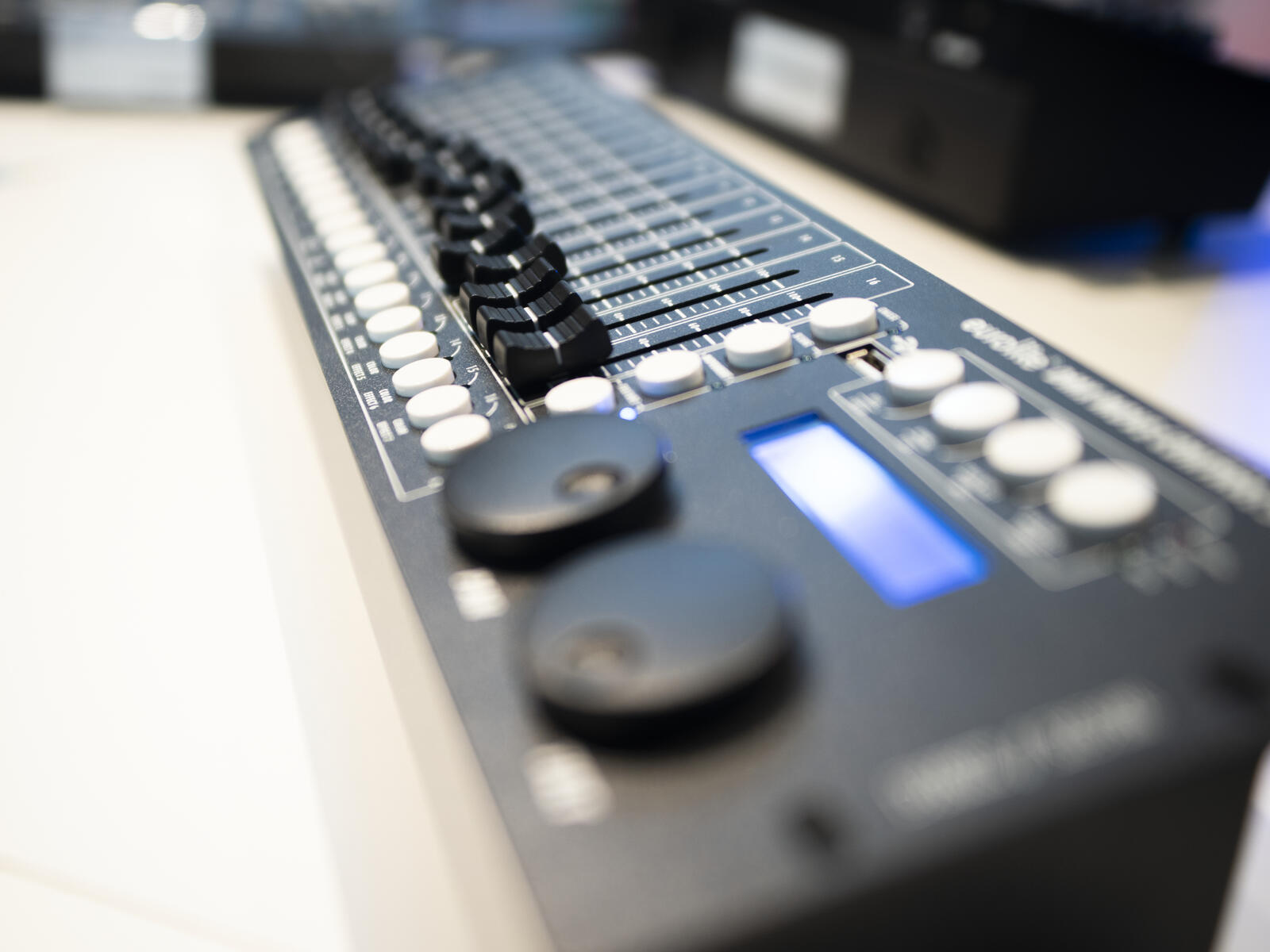

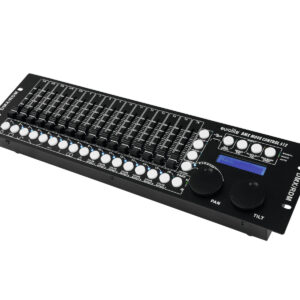

Controller with color & motion effects (28 devices, 18 control channels each)
- DMX controller for DMX light effect units such as moving heads, scanners and LED spot lights with RGBW color mixture
- 512 DMX channels can be assigned and inverted as desired to 32 control channels (softpatch)
- For 28 fixtures with 18 control channels each
- USB port for storing program data
- Quick programming thanks to 9 integrated movement patterns and 7 color effects (PAN/TILT position, fade time and running time adjustable)
- Manual, time-controlled or sound-controlled chase running mode
- 2 DMX fixture levels can be controlled, each with up to 18 channels
- 16 DMX channel faders
- 2 jog wheels for pan/tilt
- Blackout function
- Can transmit up to 512 DMX channels
- (19") 48.3 cm rack installation 3 U
- Programmable 32 scenes/chases each with 600 cues
- Control via DMX; RDM
- Monochrome LCD display
- Firmware can be updated
- Desktop console housing
- For application areas such as: Clubs/dancing school; stage; mobile djs / entertainer
- Silent operation
Scope of delivery
- 1 x controller
- 1 x user manual
- 1 x external mains adapter
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 2.70 W |
| Protection class: | Protection class III |
| Power connection: | Mains input via coaxial power connector (M) mounting version power supply cord with AC adapter (provided) |
| Programs: | Programmable 32 scenes/chases each with 600 cues |
| DMX channels: | Output 512 |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Control: | DMX; RDM |
| Housing color: | Black |
| Display type: | Monochrome LCD display |
| Available storage media: | USB devices (FAT 32) |
| USB port: | Type A |
| PC connect: | , firmware can be updated |
| Housing design: | (19") 48.3 cm rack installation 3 U Desktop console housing |
| Dimensions: | Width: 48.3 cm Depth: 13 cm Height: 8.9 cm |
| Weight: | 2.39 kg |
| Noise classification: | Class 0 (no noise at all) |
