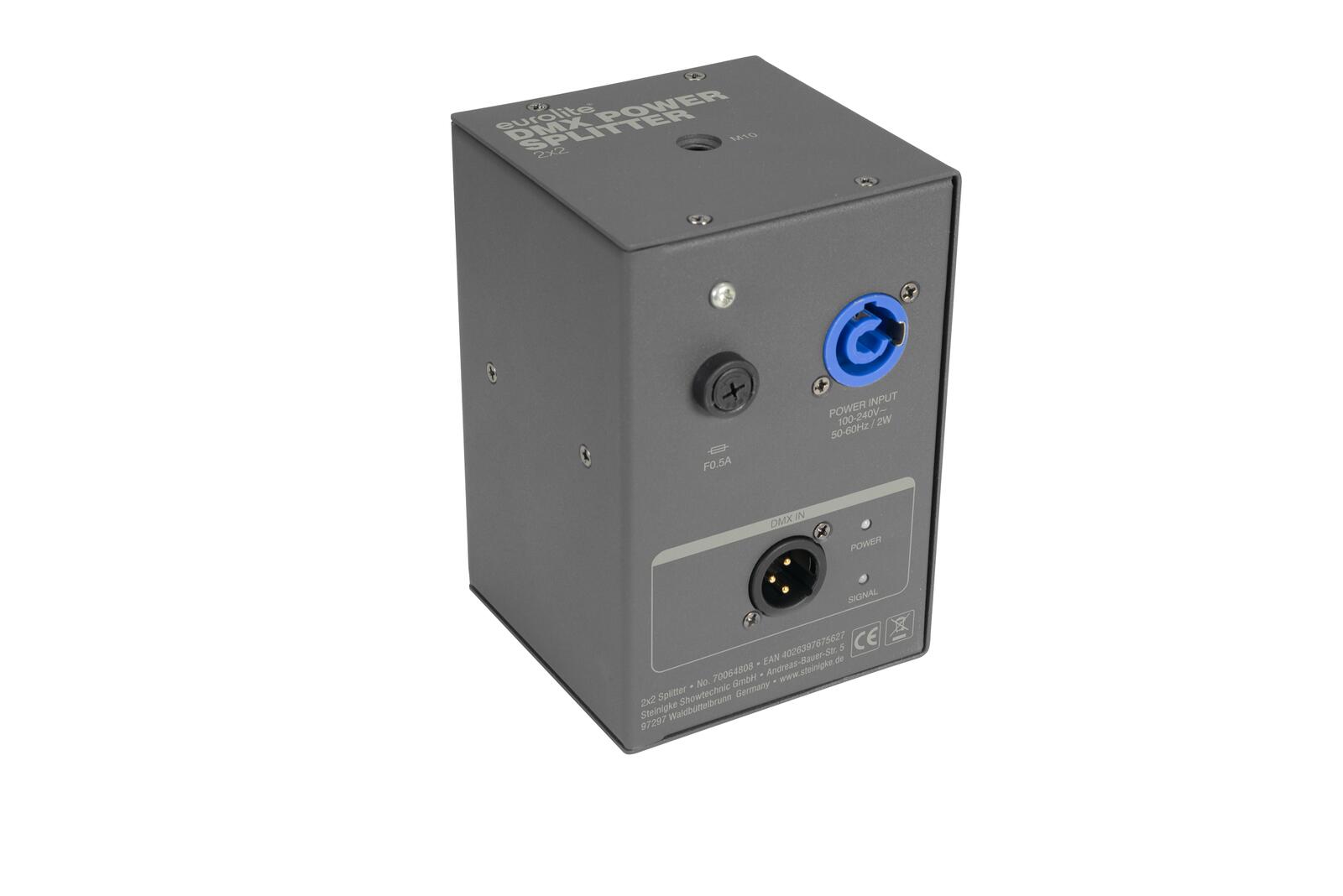

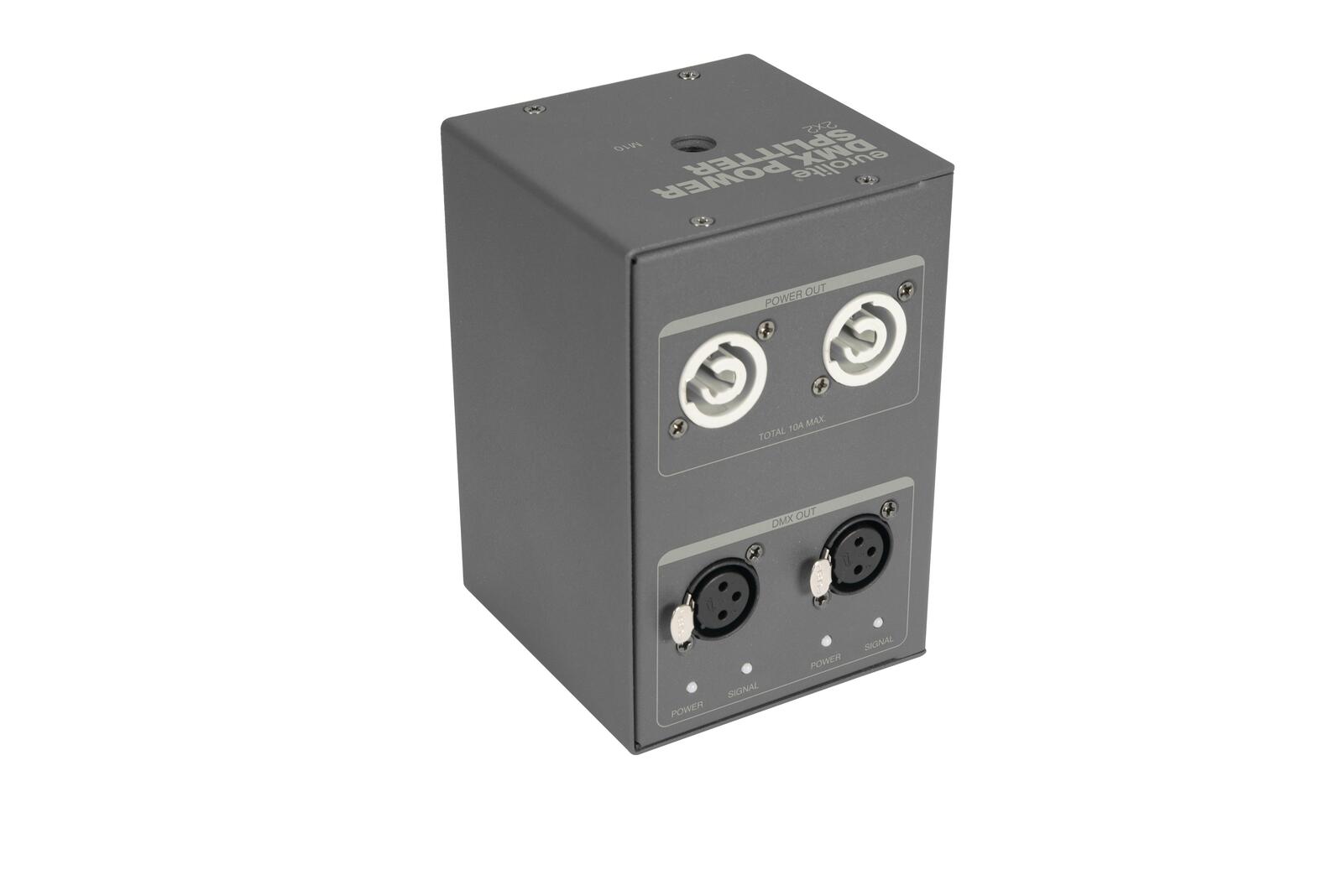

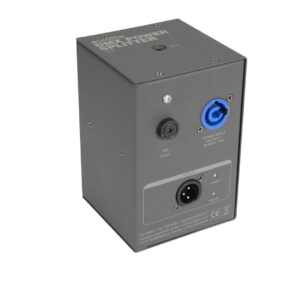

2-fold power and DMX splitter for truss mounting
- Reliable power and DMX distributor
- 1 P-Con input to 2 outputs, max. 10 A
- 1 DMX input to 2 outputs
- Input and outputs galvanically isolated
- Rugged metal housing
- Each DMX output with independent driver and status indicator
Scope of delivery
- 1 x device
- 1 x power cord
- 1 x user manual
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 2 W |
| Output current: | Max. 2 x 5 A per channal |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug |
| Power output: | 2 x P-Con (gray), mounting version |
| DMX input: | 3-pin XLR (M) |
| DMX output: | 2 x 3-pin XLR (F) separate (galvanic) with independent driver and status indicator |
| Status LED: | Power, DMX |
| Dimensions: | Width: 9 cm Depth: 10 cm Height: 13.6 cm |
| Weight: | 1.00 kg |
