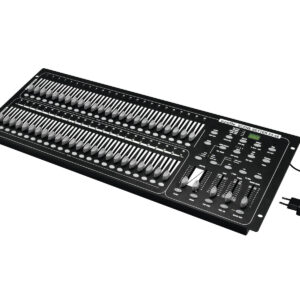

Theater light console for 48 DMX channels, brightness control for each scene
- Blackout function
- Mix and single chase function
- Blind/home function
- Supports standard MIDI
- Programmable 96 scenes/chases distributed over 4 page/s
- Can transmit up to 48 DMX channels
- Control via DMX; sound to light via microphone; sound to light via RCA (F) mounting version
- Desktop console housing
- For application areas such as: Stage; theater
- Silent operation
Scope of delivery
- 1 x controller
- 1 x user manual
- 1 x external mains adapter
| Power supply: | 100-240 V AC, 50/60 Hz 12V DC 500 mA |
| Pin configuration: | Inside + / outside – |
| Power consumption: | 8.00 W |
| Power connection: | Mains input via coaxial power connector (M) mounting version power supply cord with AC adapter (provided) |
| Programs: | Programmable 96 scenes/chases distributed over 4 page/s |
| DMX channels: | Output 48 |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Control: | DMX; sound to light via microphone; sound to light via RCA (F) mounting version |
| Housing color: | Black |
| Control elements: | DMX polarity selector, power switch |
| Color: | Black |
| Housing design: | Desktop console housing |
| Dimensions: | Width: 71 cm Depth: 26.4 cm Height: 9 cm |
| Weight: | 6.05 kg |
| Noise classification: | Class 0 (no noise at all) |
