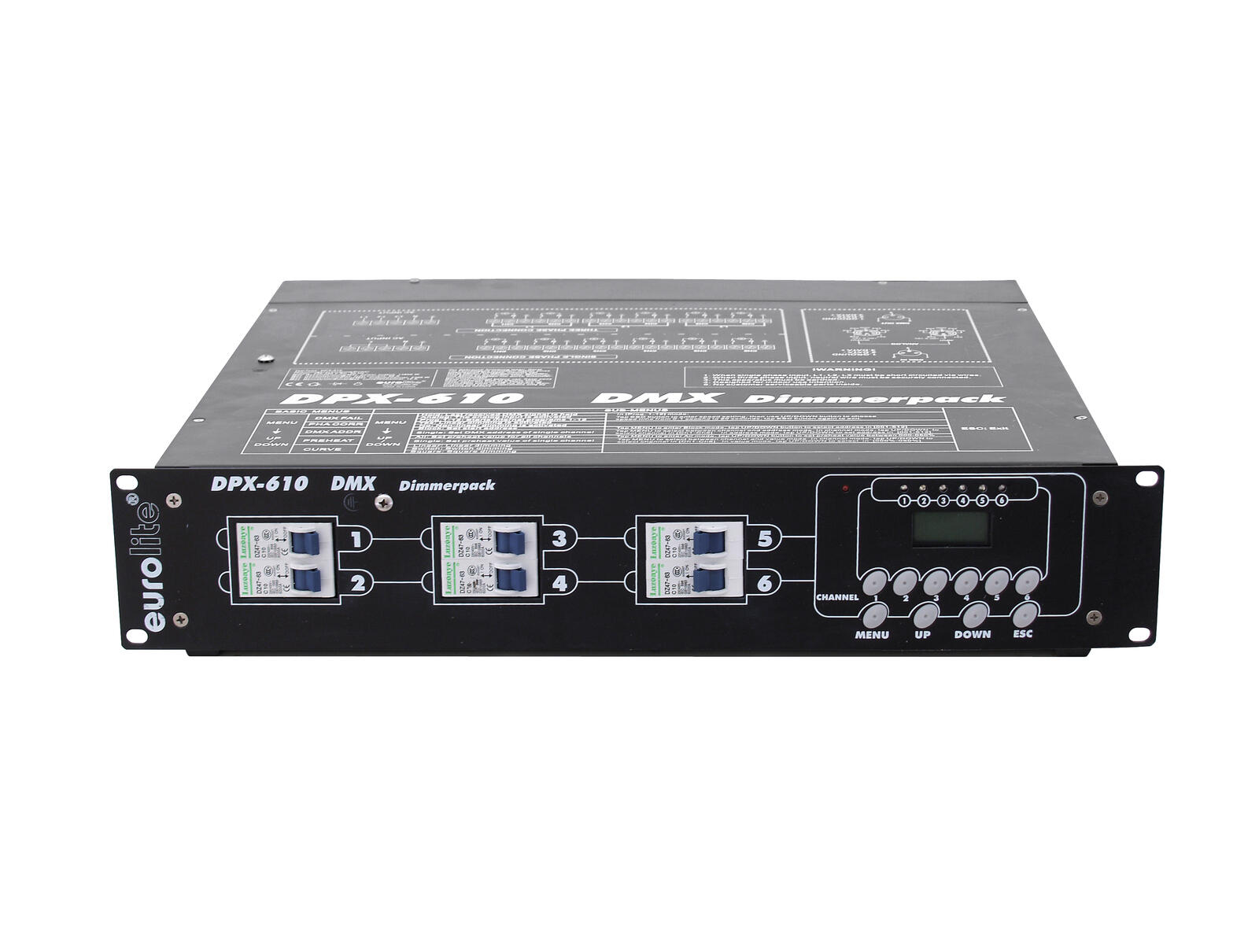

6x10A dimmer for DMX & analog signals, connection via terminal blocks
- Universal dimmer pack for professional use
- Can be operated 1-phase or 3-phase
- DMX control or analog control possible
- The DMX-starting address can be adjusted on the device
- Synchronization of several devices possible via DMX
- Adjusting the lamp pre-heat
- With automatic circuit breaker per channel
- Channel-outputs on the rearpanel via pole connectors
- Only for professional use
- Preprogrammed 12 scenes/chases
- Control via analog 0-10 V; stand-alone; DMX
- (19") 48.3 cm rack installation 2 U
- For application areas such as: Trade fair and shop fitting; stage; theater; rental
- Very quiet working noise
Scope of delivery
- 1 x device
- 1 x user manual
| Power supply: | 230/380 V AC, 50 Hz |
| Output power: | Max. 13800 W Max. 2300 W per channal |
| Output current: | Max. 60 A |
| Power connection: | Mains input via screw terminal |
| Power output: | Screw terminal |
| Power output fuse per channel: | C 10 A fuse resettable |
| Programs: | Preprogrammed 12 scenes/chases |
| DMX channels: | 6 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Control: | Analog 0-10 V; stand-alone; DMX |
| Control channels: | 6 |
| Color: | Black |
| Housing design: | (19") 48.3 cm rack installation 2 U |
| Dimensions: | Width: 48.3 cm Depth: 41 cm Height: 8.9 cm |
| Weight: | 7.50 kg |
| Noise classification: | Class 1 (very slight noise, suitable for noise-sensitive environments) |
