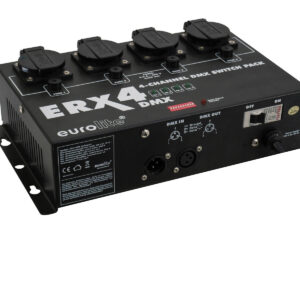

4-channel switch pack, up to 5 A load per channel, control with relay
- Relay allows for controlling luminaires with electronic transformers (e.g. LED effects)
- 4 controllable channels
- LED indicator per channel
- 5 A load per channel
- Rugged metal housing
- Control via stand-alone; DMX
- For application areas such as: Clubs/dancing school; party room; theater; restaurants, bars and hotels
- Silent operation
Scope of delivery
- 1 x device
- 1 x user manual
| Power supply: | 230 V AC, 50 Hz |
| Output power: | Max. 3680 W Max. 1150 W per channal |
| Output current: | Max. 16 A |
| Power connection: | Fixed power supply cord with safety plug |
| Power output: | 4 x safety contact (F), hinged lid mounting version |
| Power output fuse per channel: | 5 x 20 mm, T 6.3 A fuse replaceable |
| DMX channels: | 4 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Control: | Stand-alone; DMX |
| Control channels: | 4 |
| Color: | Black |
| Dimensions: | Width: 30 cm Depth: 19 cm Height: 8.5 cm |
| Weight: | 2.51 kg |
| Noise classification: | Class 0 (no noise at all) |
