Floor cable duct Set consists of a duct base for cable attachment and a duct lid to be clipped to the base.With our electrical installation ducts, your electrical wires are well stowed.Easy installation: Depending on the surface you can simply screw or glue the duct to the ground, insert the cables and close the lid.
Rugged floor cable channel
- Made in Germany

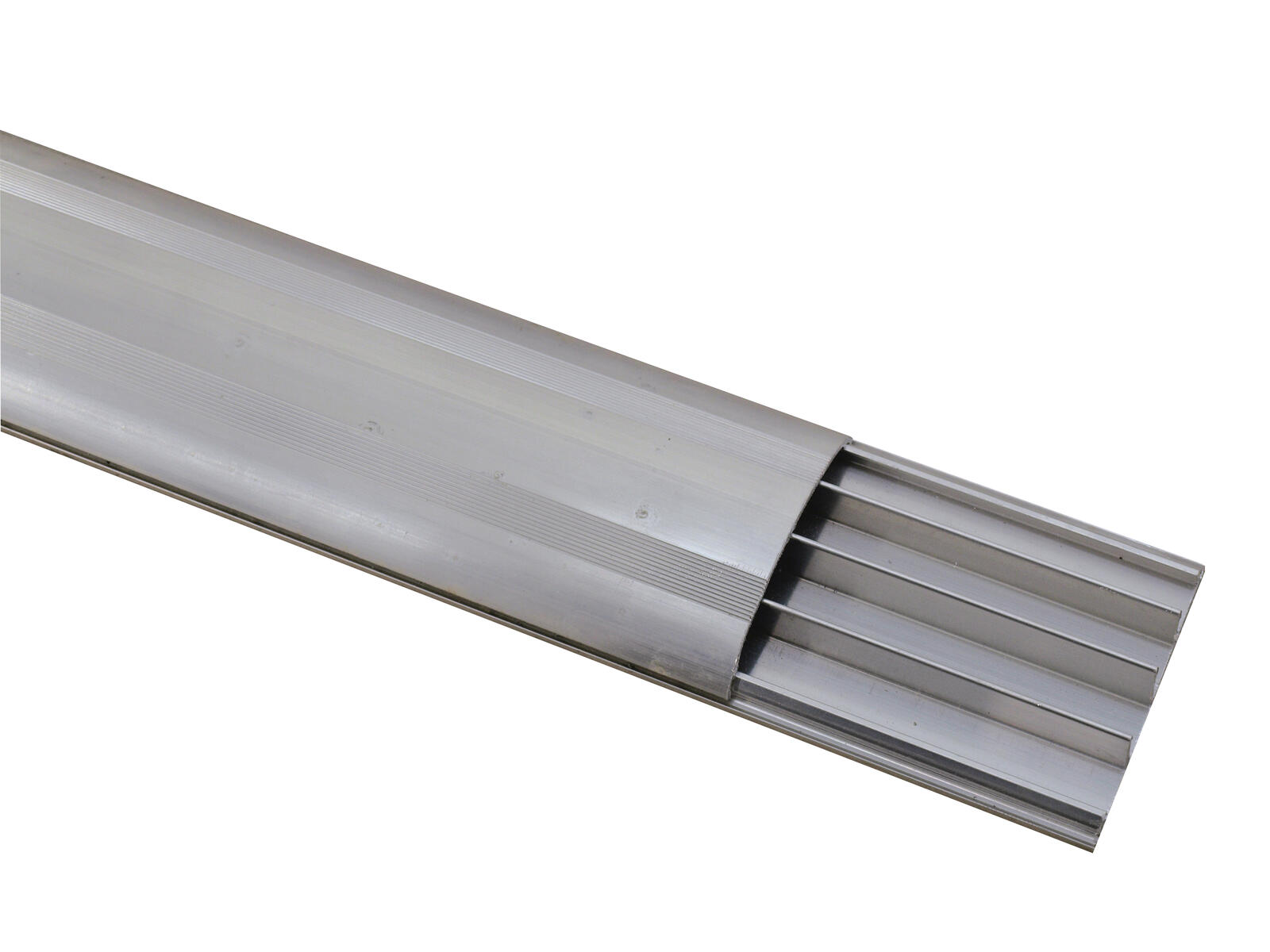

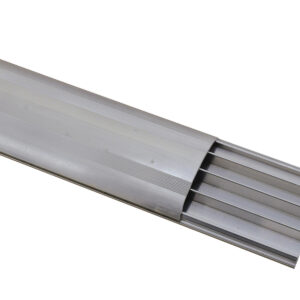

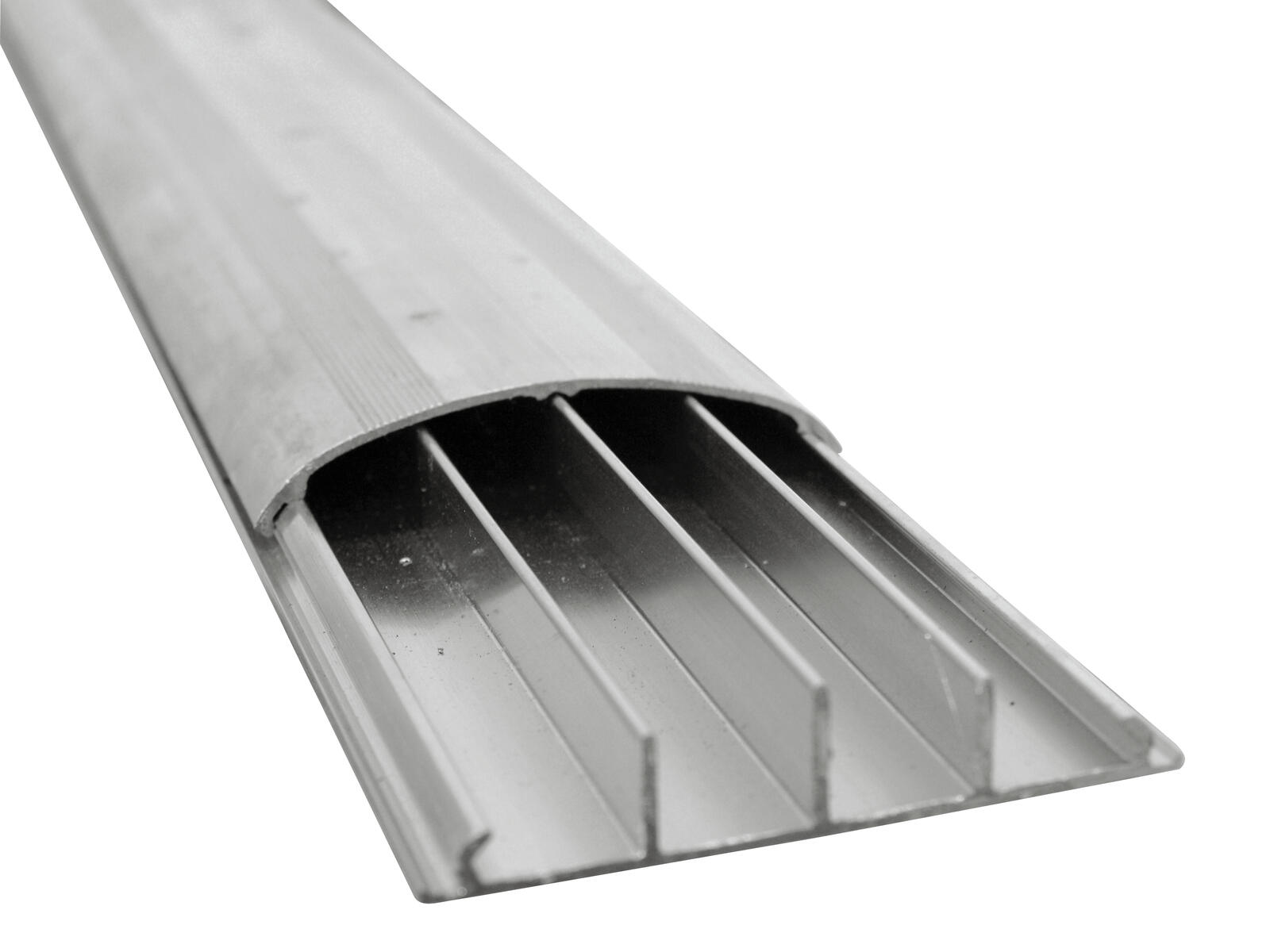

EUROLITE Floor cabel channel, bottom, 75mm, alu /m
Rugged floor cable channel
- Material: aluminum
- Dimensions: W: 75 mm, H: 17 mm
- Available lengths: 2000 mm or 4000 mm
- Sections (for installing the cables): 4
- Cable run: 4 x 11 mm ø (z. B. NYM 3 x 1,5 mm²)
- Color: anodic silver
- With slip-resistant surface on the cover
- Wheelchairs can easily overcome the channel
- Extreme stability
- Easy installation
- Low weight
- For exhibition and shop installers, discotheque and theatre installations
Scope of delivery
| Number of cable ways: | 4 |
| Color: | Silver |
| Dimensions: | Length: 200 cm Width: 7.5 cm Height: 1.7 cm |
| Weight: | 0.75 kg |
| EUROLITE Floor cabel channel, cover, 75mm, alu /m | |
| Weight: | 0.30 kg |
