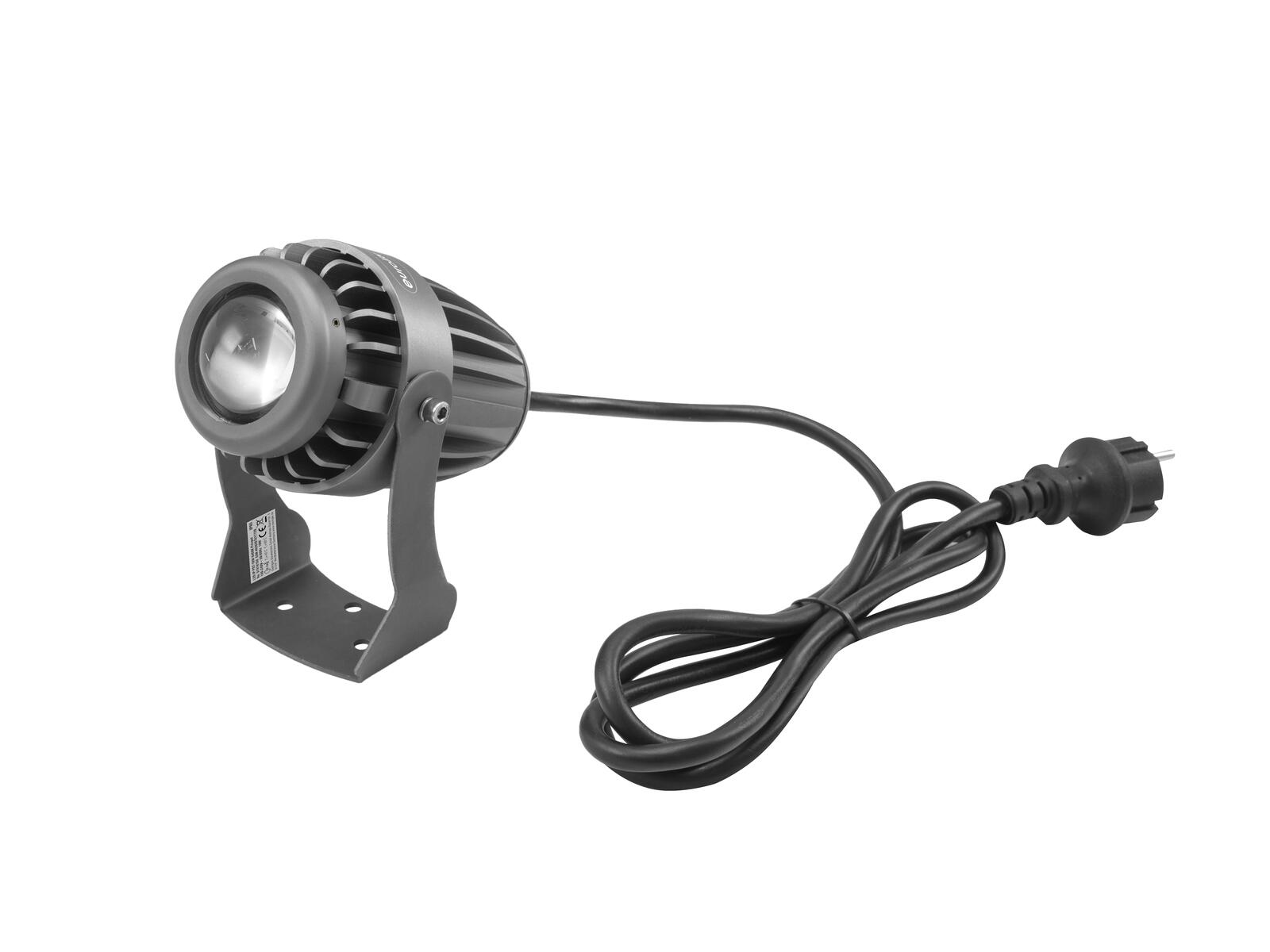

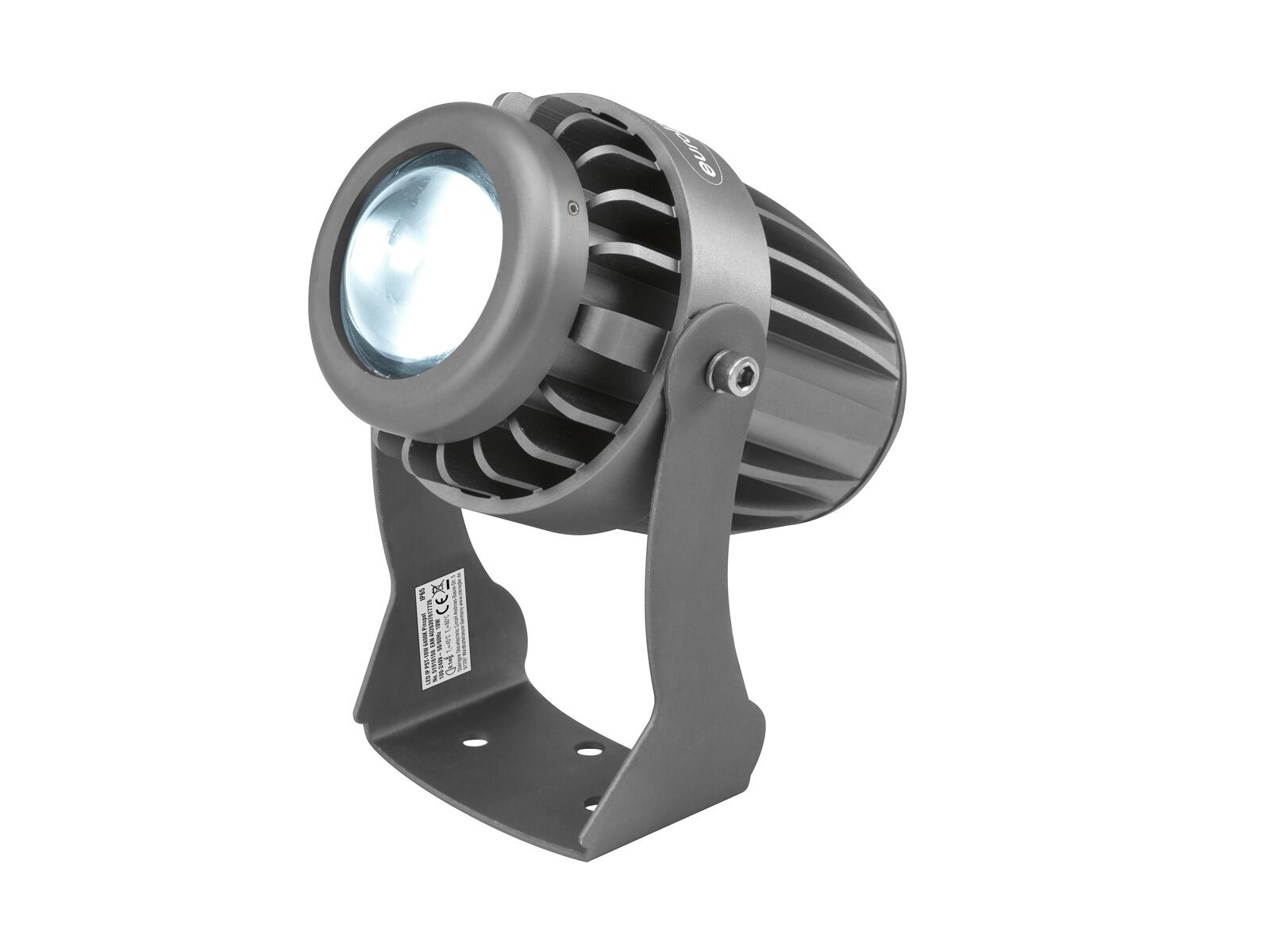

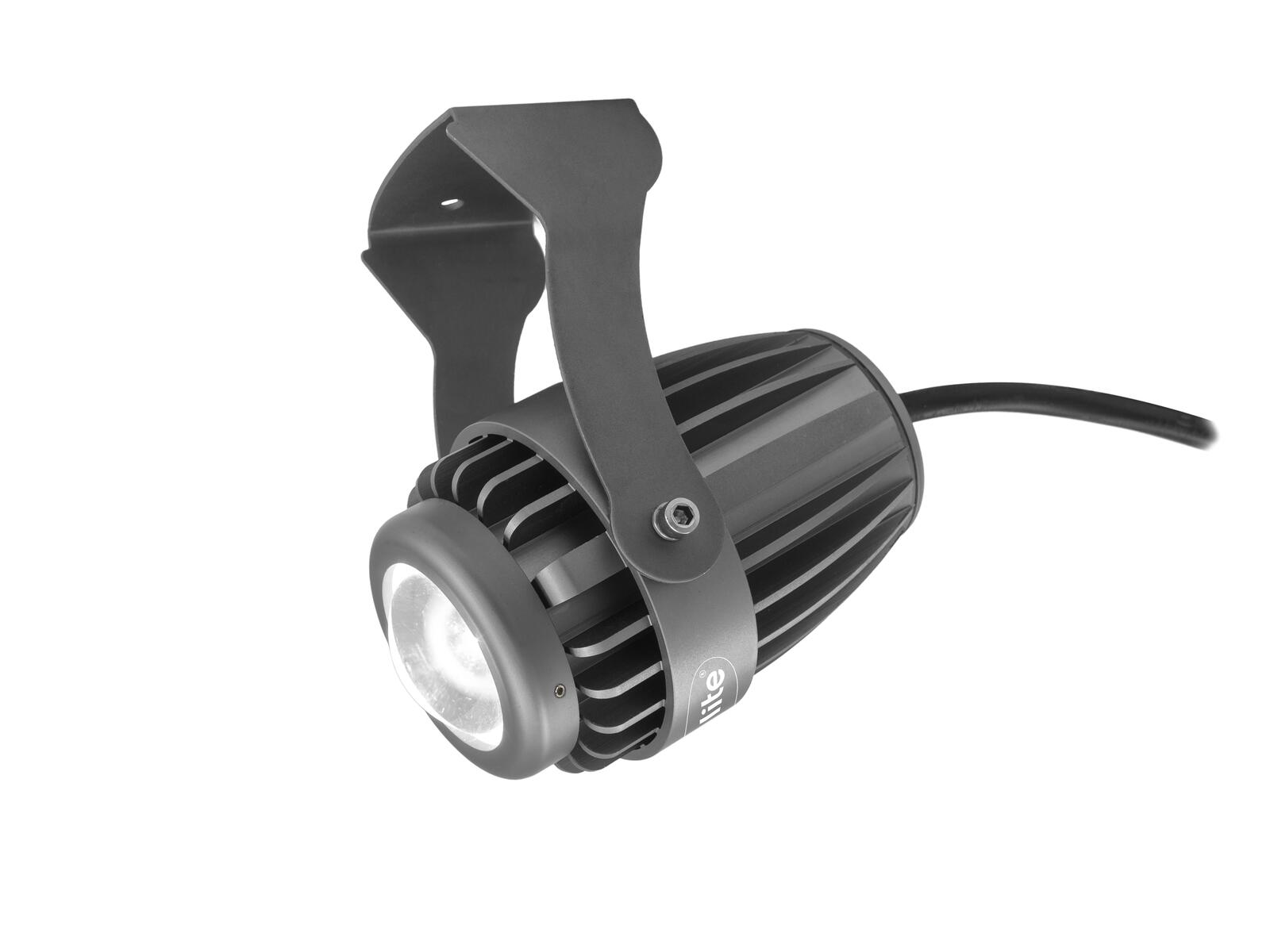

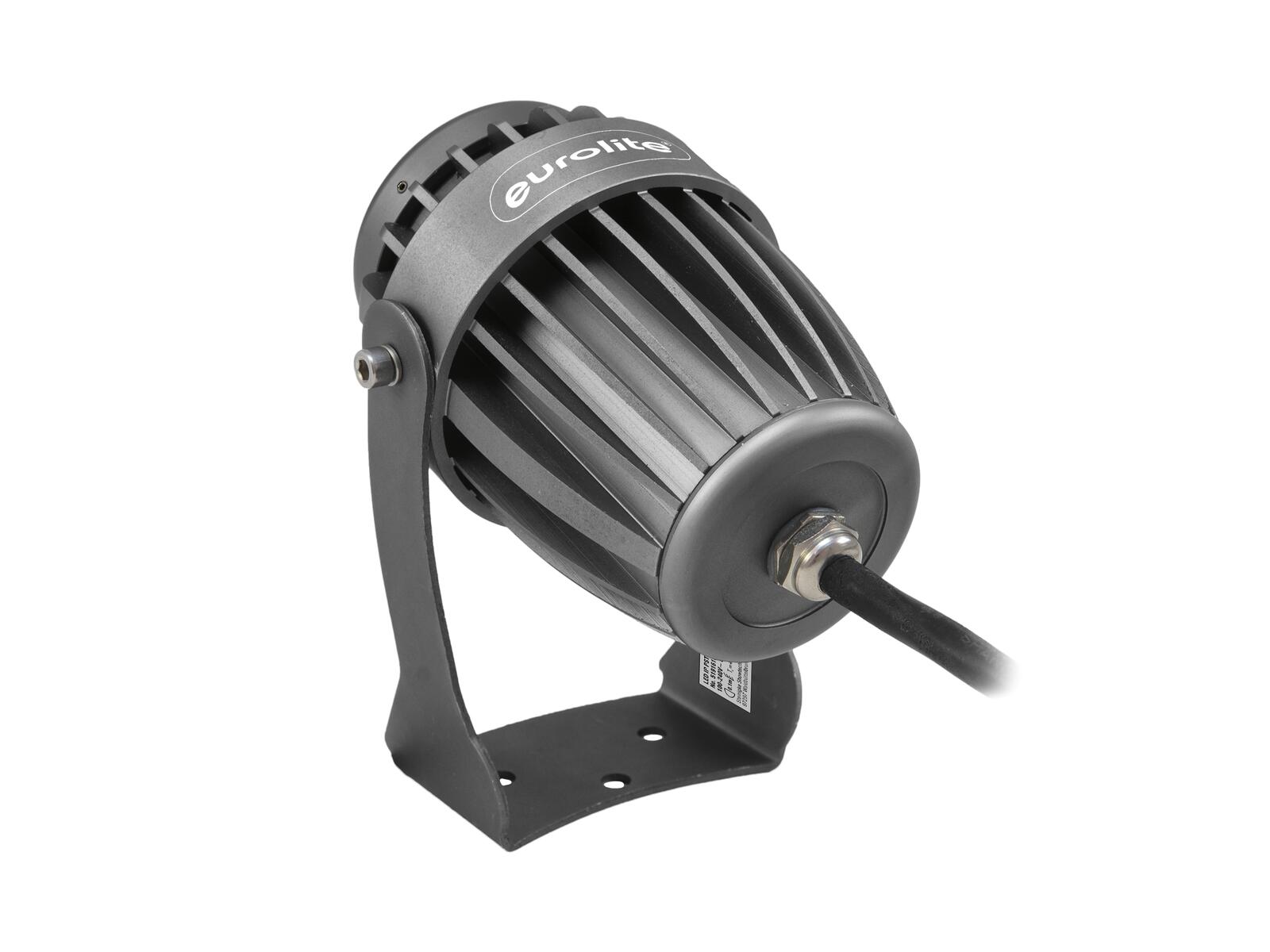

Weather-proof pinspot (IP65) with strong 10 W LED in cold white (CW)
- Compact aluminum housing
- 1 LED 10 W high-power cold white (CW)
- Beam effect
- The device is cooled by passive convection cooling
- Control via plug and play
- With a beam angle of 4°
- With mounting bracket
- Suitable for outdoor use IP65
- For application areas such as: Architecture; clubs/dancing school; decoration; restaurants, bars and hotels
- Silent operation
- Application possibility: Suspended
Scope of delivery
- 1 x device
- 1 x user manual
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 10 W |
| IP classification: | IP65 |
| Protection class: | Protection class I |
| Power connection: | Fixed power supply cord with safety plug |
| Cable length: | Approx. 0.9 m |
| Lamp type: | LED lamp |
| LED type: | 1 x 10 W high-power cold white (CW) |
| Cooling: | Passive convection cooling |
| Control: | Plug and play |
| Beam angle (1/2 peak): | 4° |
| Beam angle (1/10 peak): | 6° |
| Color temperature: | 6400K |
| Illuminance in Lux (lx): | 1m: 39687 lx, 3m: 4446 lx, 6m: 1255 lx |
| Luminous flux: | 887 lm |
| Housing color: | Grey |
| Attachment system: | Mounting bracket |
| Material: | Aluminum casting |
| Dimensions: | Width: 10.5 cm Depth: 15 cm Height: 14.7 cm |
| Weight: | 0.75 kg |
| Noise classification: | Class 0 (no noise at all) |
| Energy efficiency class (A – G): | F |
| EPREL-Nr: | 1064813 |
| Mounting bracket | |
| Diameter mounting holes: | 3 x Ø6mm |
| Material: | Aluminum, 2 mm |
