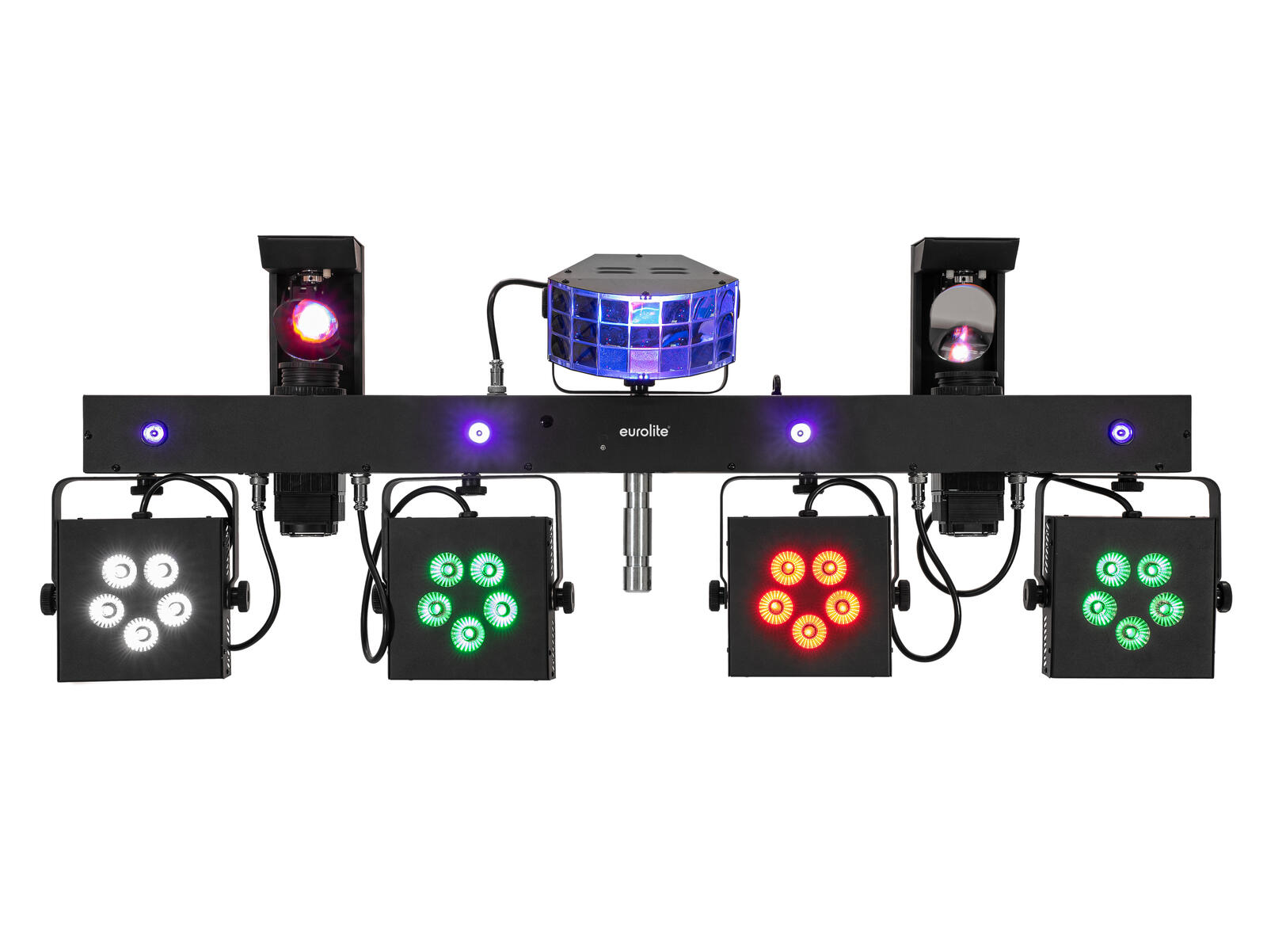

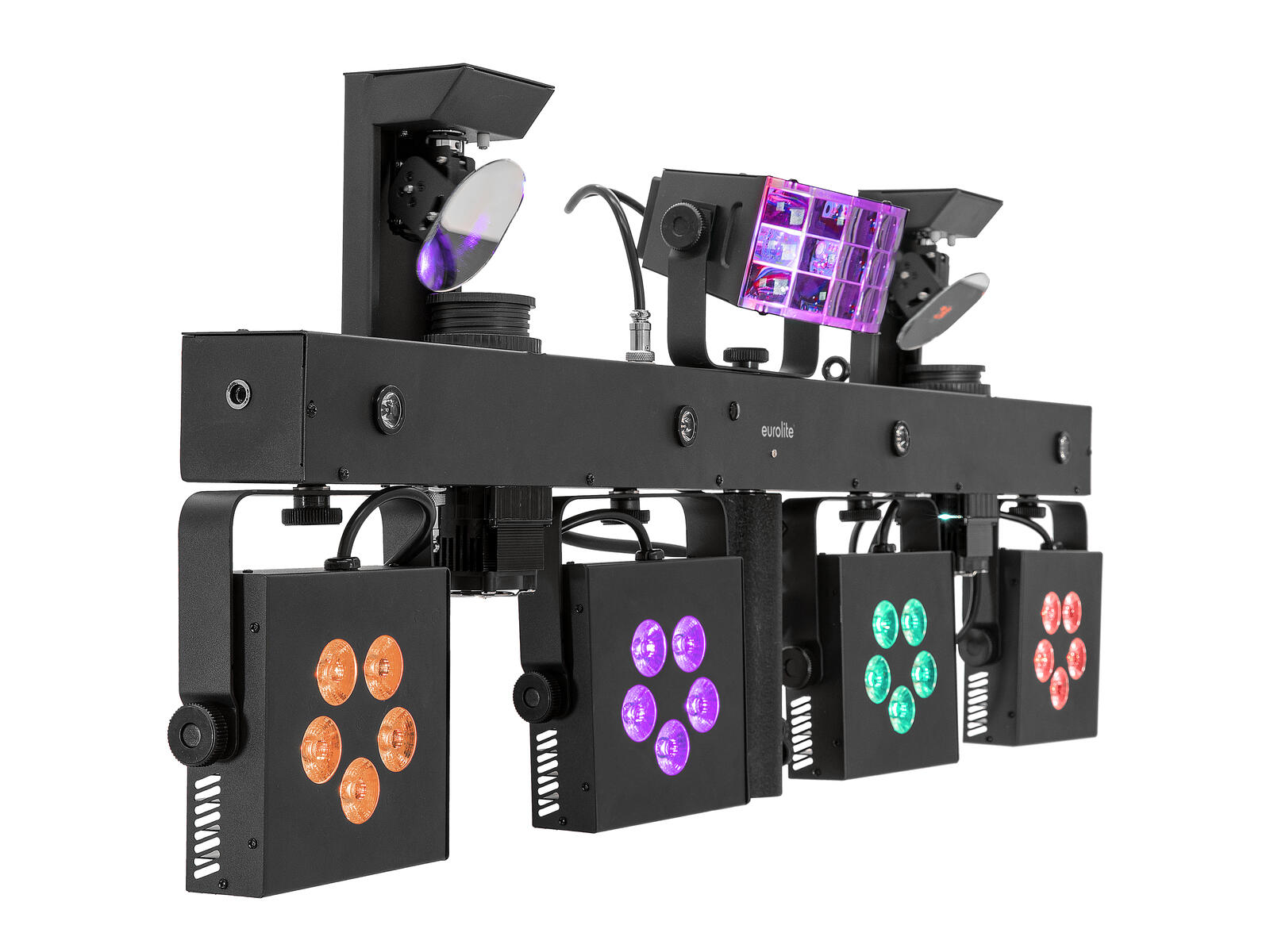

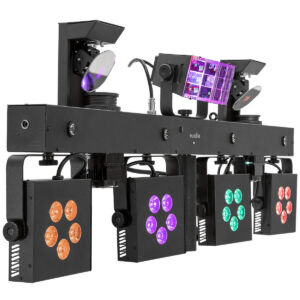

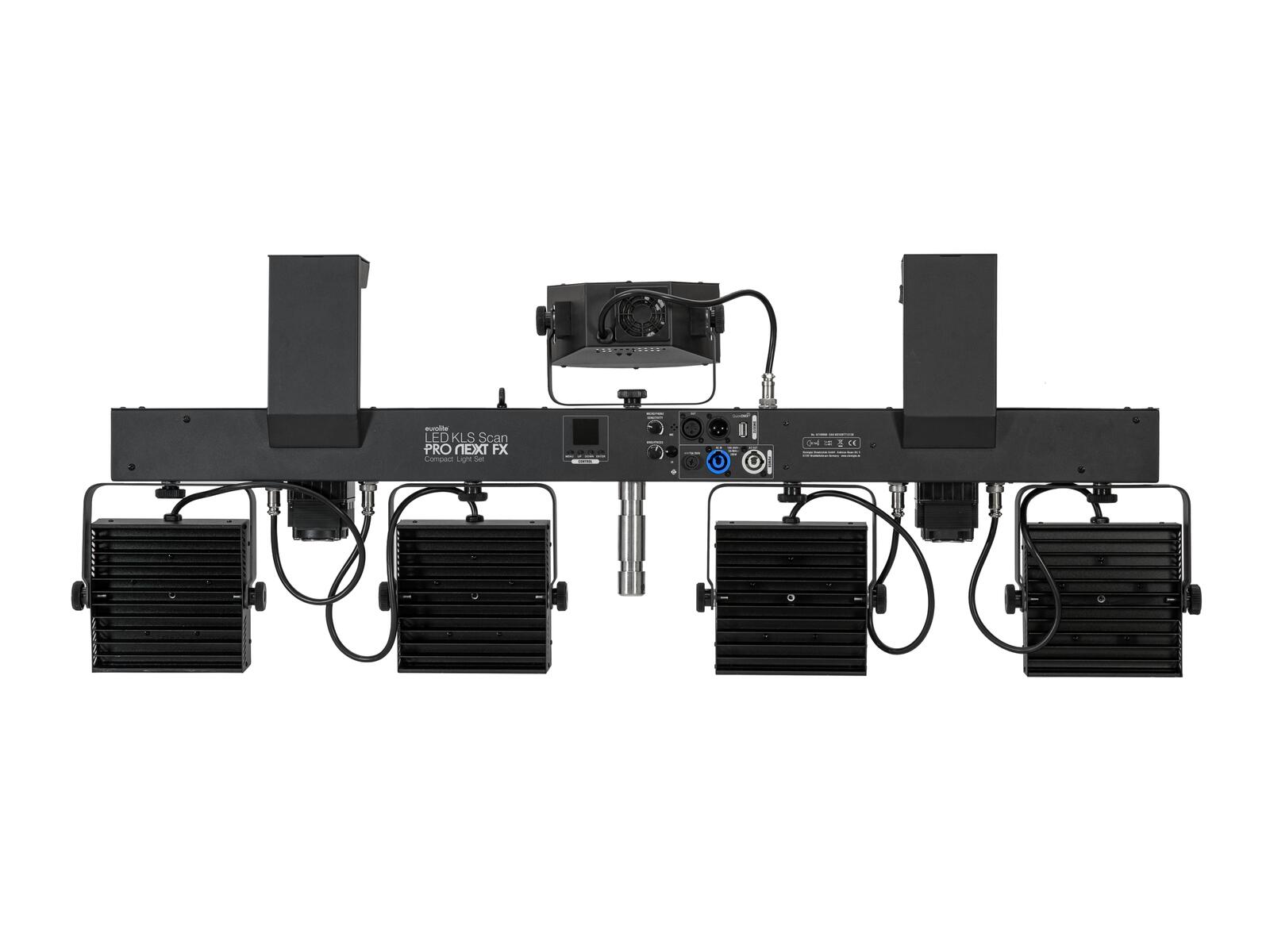

Compact bar with derby, spots, scanners, UV effect, QuickDMX port and bag
- Heart gobo for romantic occasions
- Positioning within
- Color wheel; gobo wheel with static gobos
- Program selection; Dimmer electronic; color blend stepless
- Strobe effect; multi beam effect; UV effect
- Color wheel with 7 dichroic filters plus open
- Gobo wheel with static gobos, 7 gobos and open
- 20 integrated show programs
- The device is cooled by cooling fan
- Control via stand-alone; sound to light via microphone; master/slave function; IR remote control; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); wireless footswitch (optional); quick select potentiometer for brightness
- Flicker-free
- The article is delivered with practical transport bag
- The article is delivered pre-assembled
- With mounting bracket
- OLED display
- Mains input and output for power linking up to 8 units
- For application areas such as: Clubs/dancing school; wedding/gala/events; party room; mobile djs / entertainer; restaurants, bars and hotels
- Application possibility: Suspended; on stand
spotlight
- 5 LEDs 7 W SMD 9080 4in1 RGB/WW (homogenous color mix)
4 spots controlled separately - With a beam angle of 15°
light effect
- 2 LEDs 3 W R/G/B
moving light
- 1 LED 37.5 W cold white (CW)
bar
- 4 LEDs 1 W SMD 8072 ultra violet (UV)
LEDs controlled separately
Scope of delivery
- 1 x device
- 1 x user manual
- 1 x power cord
- 1 x declaration of conformity
- 2 x mounting bracket
- 1 x remote control
- 1 x battery
- 1 x bag
- 2 x knurled screw
- 2 x washer
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 265 W |
| Protection class: | Protection class I |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Cable construction: | H05VV-F |
| Power output: | 1 x P-Con (gray), mounting version |
| Fuse: | 5 x 20 mm, T 5 A fuse replaceable |
| Equipment: | Color wheel; gobo wheel with static gobos |
| Color generation: | Color wheel with 7 dichroic filters plus open |
| Gobos: | Gobo wheel with static gobos, 7 gobos and open |
| DMX channels: | 3; 7; 13; 14; 15; 18; 19; 30; 32; 39 |
| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Cooling: | Cooling fan |
| Control: | Stand-alone; sound to light via microphone; master/slave function; IR remote control; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); wireless footswitch (optional); quick select potentiometer for brightness |
| Fixtures available for: | Light Captain; EASY SHOW 2; EASY SHOW 3 |
| Projection: | Flicker-free |
| Housing color: | Black |
| Attachment system: | Tube: Ø 35mm 2x mounting bracket |
| Display type: | OLED display |
| Dimensions: | Length: 112 cm Depth: 10 cm Height: 42 cm |
| Weight: | 13.30 kg |
| Noise classification: | Class 3 (clearly perceptible sounds) |
| Remote control | |
| Battery: | 1 x button cell 3.0 V CR2025 lithium manganese built-in |
| Bar | |
| LED type: | 4 x 1 W SMD 8072 ultra violet (UV) |
| Illuminance in Lux (lx): | Ultra violet (UV) 1m: 30 lx, 3m: 4 lx, 6m: 1 lx |
| Light effect | |
| LED type: | 2 x 3 W R/G/B |
| Spotlight | |
| LED type: | 5 x 7 W SMD 9080 4in1 RGB/WW (homogenous color mix) |
| Beam angle (1/2 peak): | 15° |
| Beam angle (1/10 peak): | 30° |
| Illuminance in Lux (lx): | Spot red (R) 1m: 2300 lx, 3m: 235 lx, 6m: 58 lx Spot green (G) 1m: 4187 lx, 3m: 422 lx, 6m: 107 lx Spot blue (B) 1m: 760 lx, 3m: 78 lx, 6m: 20 lx Spot warm white (WW) 1m: 3290 lx, 3m: 325 lx, 6m: 85 lx Spot all 1m: 10283 lx, 3m: 1010 lx, 6m: 259 lx |
| Moving light | |
| LED type: | Each with 1 x 37.5 W cold white (CW) |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
