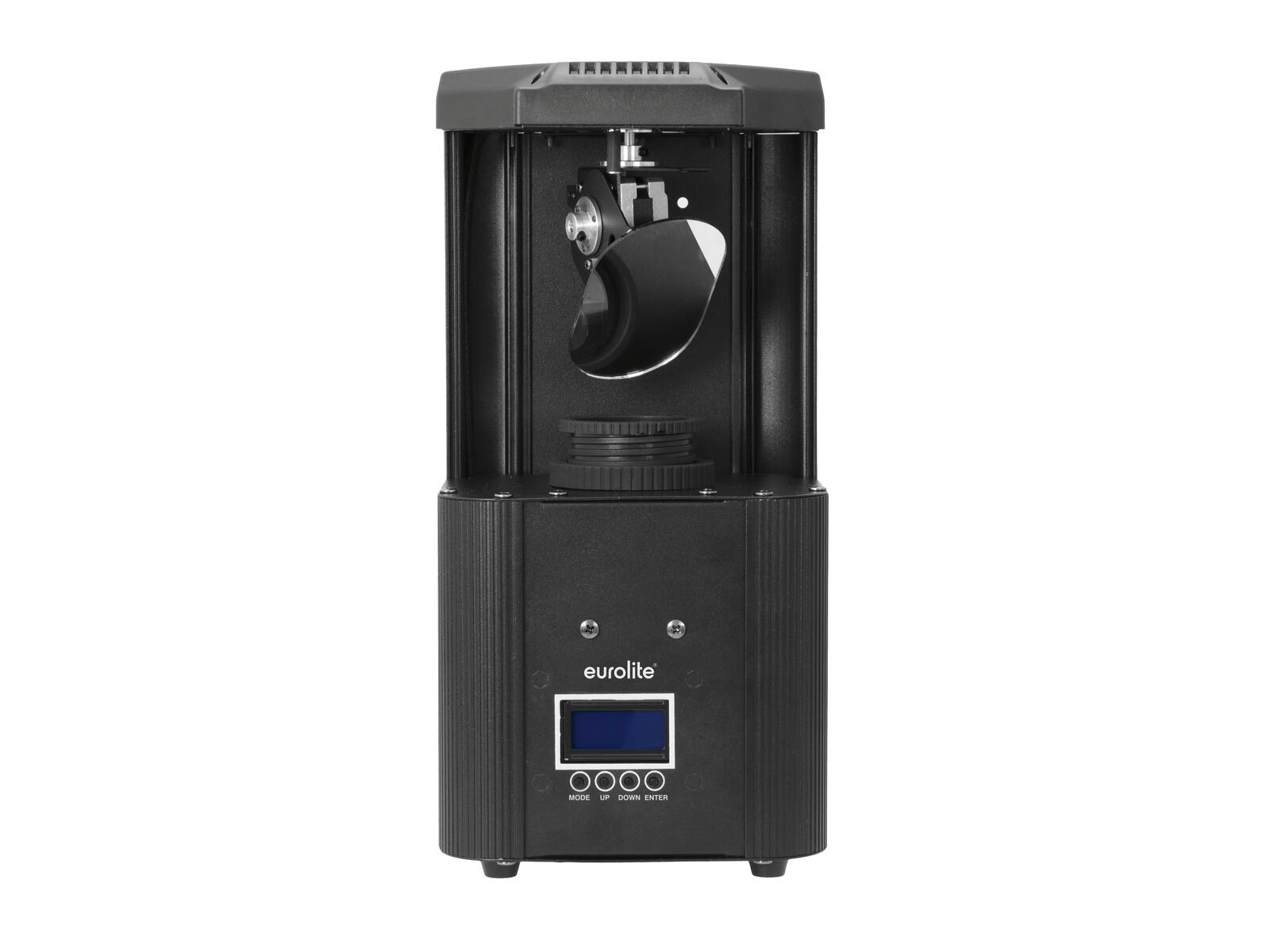

Handy scanner with 60 W COB LED, gobo and color wheel
- Compact design
- 1 LED 60 W COB (chip-on-board) cold white (CW)
- Positioning within
- Color wheel; gobo wheel with rotating gobos; focus manual
- Dimmer electronic
- Color wheel with 7 dichroic filters plus open
half colors selectable, Rainbow effect with adjustable speed - Gobo wheel with rotating gobos, 7 gobos and open
gobos changeable - Slot-in gobo system for easy gobo replacement
- Shake effect
- Integrated show programs
- The device is cooled by cooling fan
- Control via stand-alone; DMX; QuickDMX via USB (optional); master/slave function; sound to light via microphone; W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- Flicker-free
- With a beam angle of 11°
- LCD display
- Rubber feet
- Available in various colors
- For application areas such as: Clubs/dancing school; party room; mobile djs / entertainer
- Application possibility: Standing; suspended; on stand
Scope of delivery
- 1 x moving light
- 1 x user manual
- 1 x power cord
- 1 x mounting bracket
- 3 x gobos
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 70 W |
| Protection class: | Protection class I |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Fuse: | 5 x 20 mm, T 1.5 A fuse replaceable |
| Lamp type: | LED lamp |
| LED type: | 1 x 60 W COB (chip-on-board) cold white (CW) |
| Equipment: | Color wheel; gobo wheel with rotating gobos; focus manual |
| Color generation: | Color wheel with 7 dichroic filters plus open Half colors selectable, Rainbow effect with adjustable speed |
| Gobos: | Gobo wheel with rotating gobos, 7 gobos and open Outside diameter 14mm Image diameter 10mm Gobos changeable Slot-in gobo system for easy gobo replacement Shake effect |
| DMX channels: | 10 |

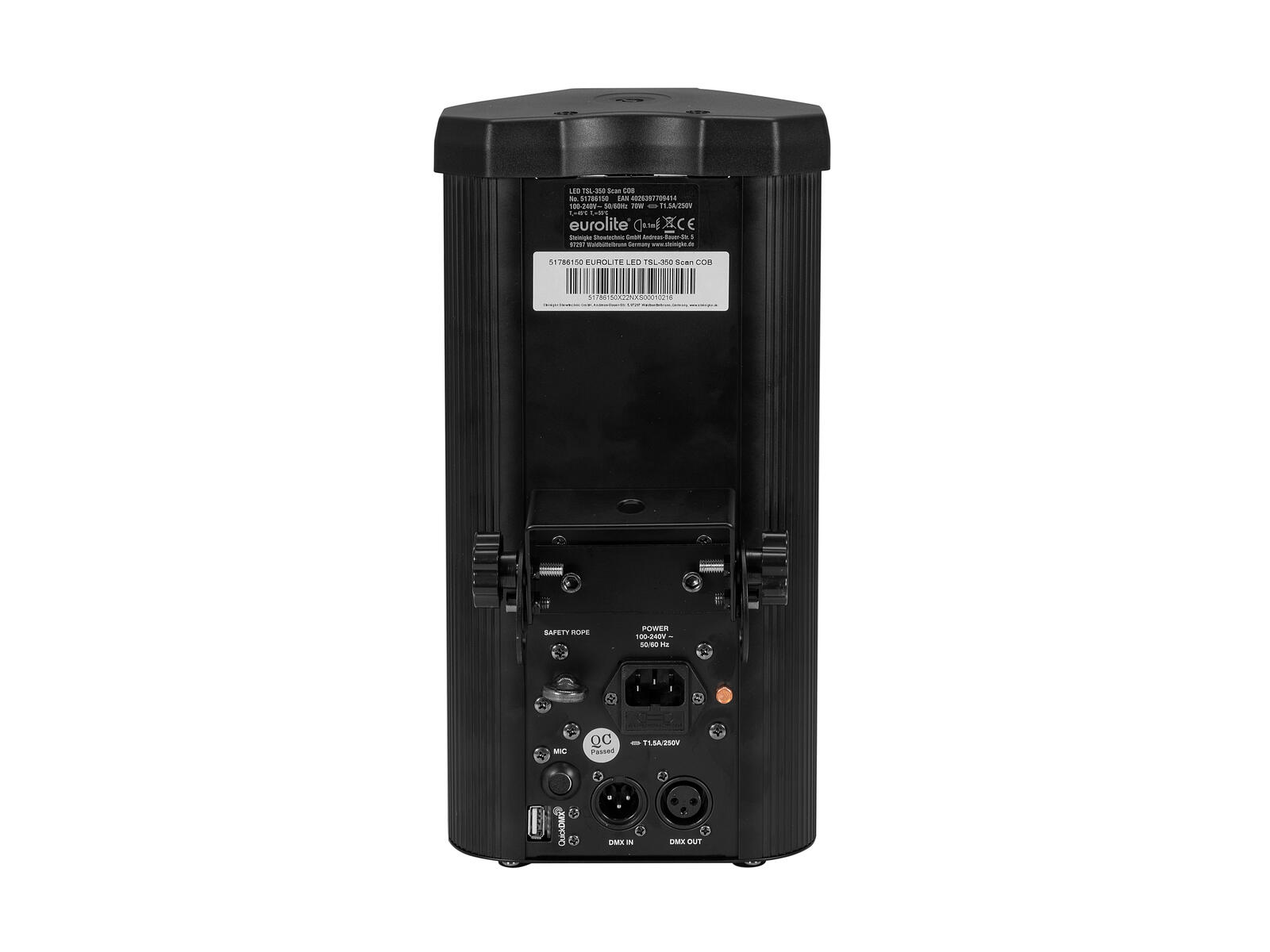

| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Cooling: | Cooling fan |
| Control: | Stand-alone; DMX; QuickDMX via USB (optional); master/slave function; sound to light via microphone; W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
| Fixtures available for: | Light Captain; Light´J; EASY SHOW 2; EASY SHOW 3 |
| Projection: | Flicker-free |
| Beam angle (1/2 peak): | 11° |
| Illuminance in Lux (lx): | Cold white (CW) 1m: 12034 lx, 3m: 1489 lx, 6m: 388 lx |
| Housing color: | Black |
| Display type: | LCD display |
| Transport aid: | Rubber feet |
| Dimensions: | Width: 16.0 cm Depth: 15.0 cm Height: 33.0 cm |
| Weight: | 3.22 kg |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
