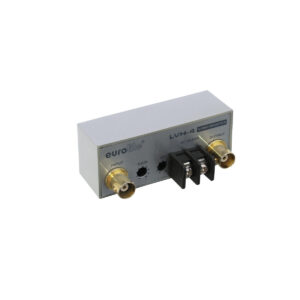

The Video Booster amplifies your signal to keep the quality high even over long distances of up to 600 meters. Of course, it can also be used to amplify a naturally weak signal to reach the desired quality standard. All this comes in an extremely compact design.
Video line amplifier with equalizer
- Equalizes and compensates for signal losses inherent in long cable runs (max. 600 m)
- 75 ohms input and outputs via BNC plugs
- Separate controls for amplification and equalization
- Ultra compact
Scope of delivery
| Power supply: | 12-24V DC 30 mA 12-24V AC 30 mA |
| S/N ratio: | >70 dB |
| Dimensions: | Width: 7.6 cm Depth: 4.1 cm Height: 3.1 cm |
| Weight: | 0.07 kg |
| 1 x video input: | 1 Vpp/ 75 ohms, BNC |
| 1 x video output: | 1 Vpp/ 75 ohms, BNC |
| Gain: | adjustable to +5 dB |
| Bandwidth: | 10 MHz |
| Equalization adjustment: | 0 dB to +4 dB/ 3.58 MHz |
| 0 dB to +7 dB/ 5 MHz |
