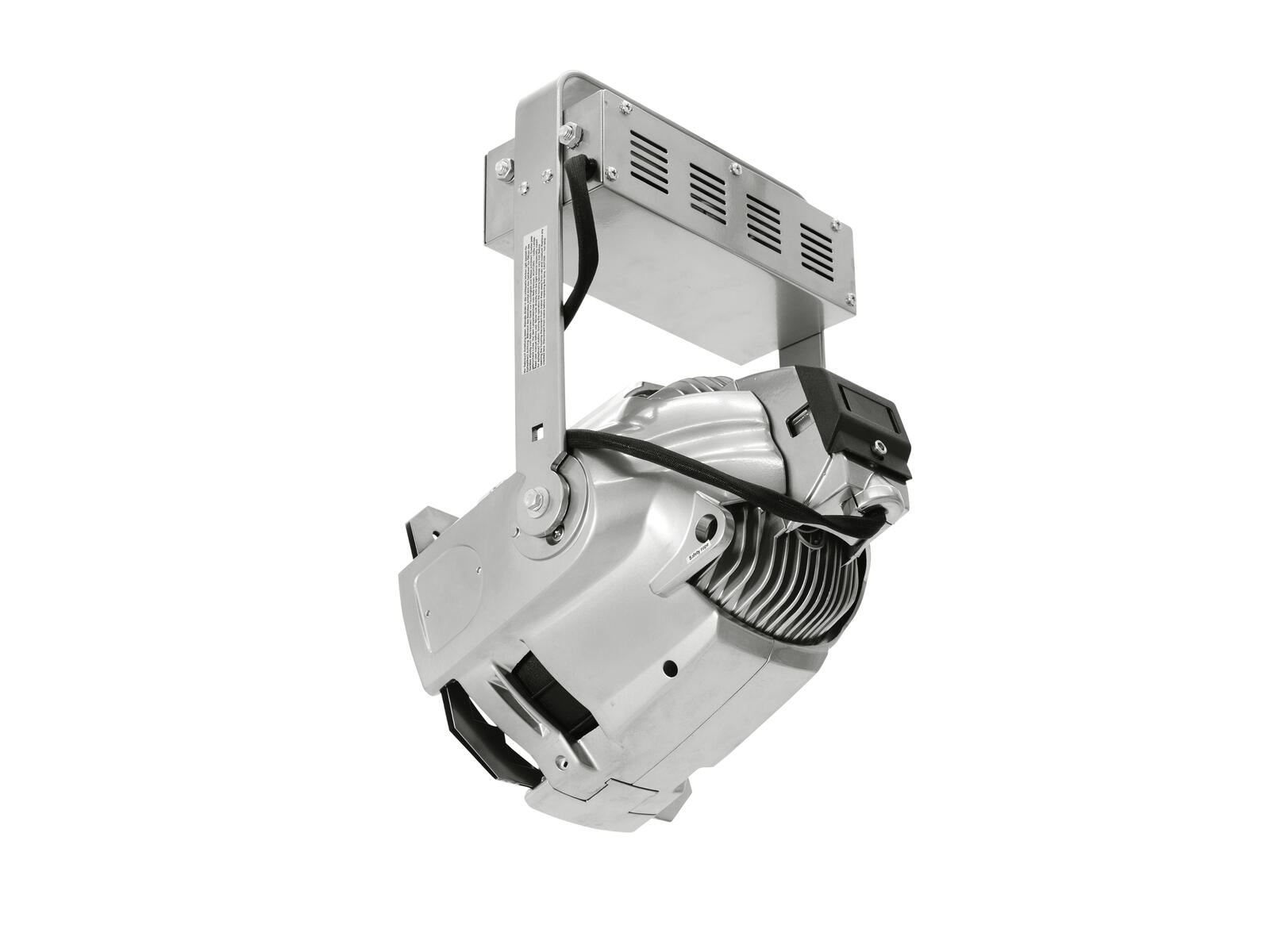

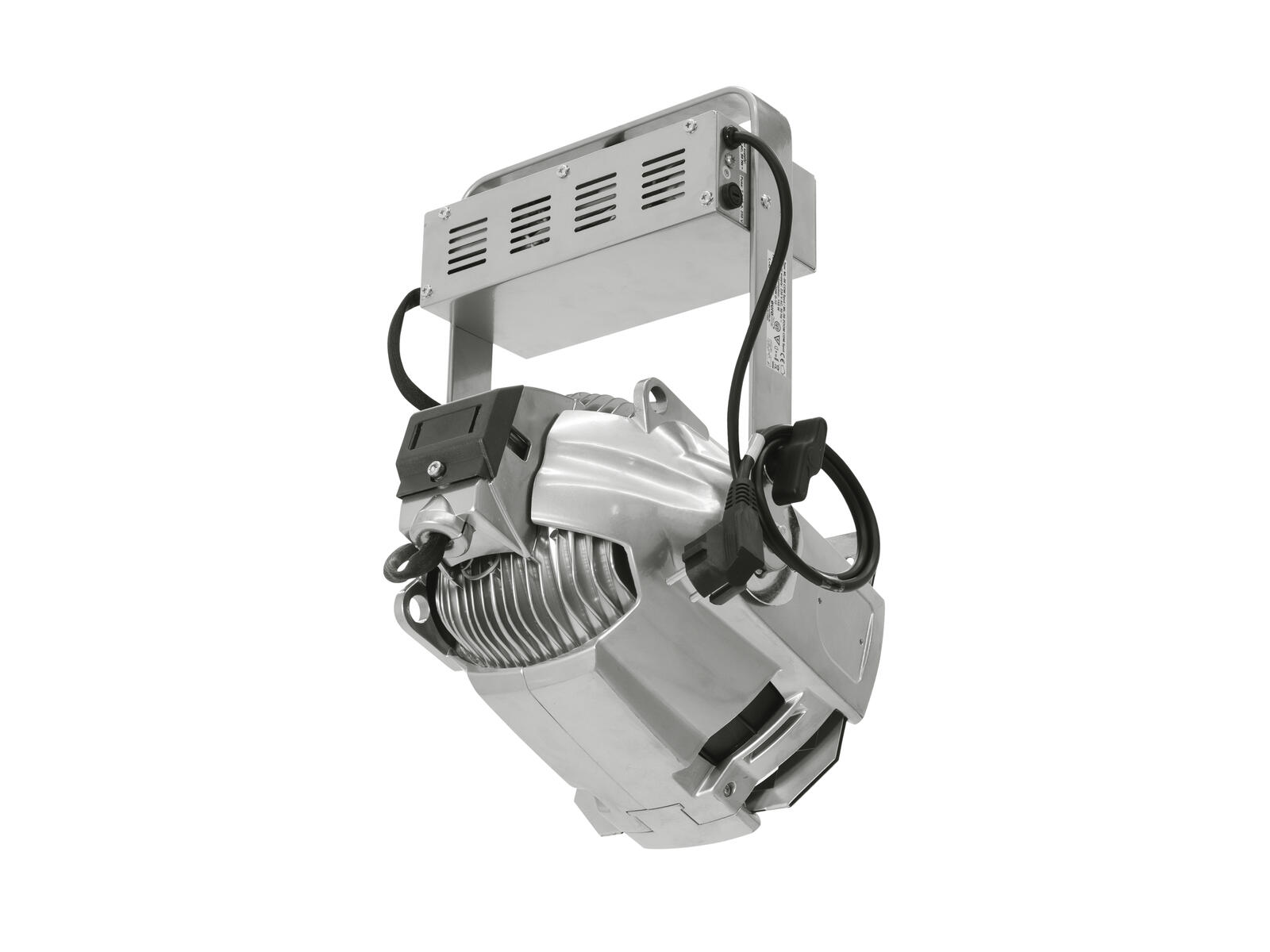

Spot for CDM-T 150 discharge lamp with 4 lenses/beam angles
- Spot with 4 exchangeable lenses (VNSP, NSP, MFL and WFL)
- Light output of a conventional PAR 56 spot with less power consumption
- High-quality die-cast housing for highest stability
- High-quality aluminum reflector
- The device is cooled by passive convection cooling
- Control via plug and play
- For application areas such as: Trade fair and shop fitting
Scope of delivery
- 1 x device
- 1 x filter frame
- 4 x lens
- 1 x user manual
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 155 W |
| Protection class: | Protection class I |
| Power connection: | Fixed power supply cord with safety plug |
| Cable length: | 0.85 m |
| Fuse: | 5 x 20 mm, T 3.15 A fuse replaceable |
| Base: | G-12 |
| Lamp type: | Discharge lamp |
| Color generation: | Via color filter frame (optional) |
| Cooling: | Passive convection cooling |
| Control: | Plug and play |
| Beam angle (1/2 peak): | NSP 20° x 36° MFL 21° x 36° WFL 30° x 53° VNSP 15° x 36° |
| Housing color: | Silver |
| Dimensions: | Width: 28 cm Depth: 22 cm Height: 40 cm |
| Weight: | 6.65 kg |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
