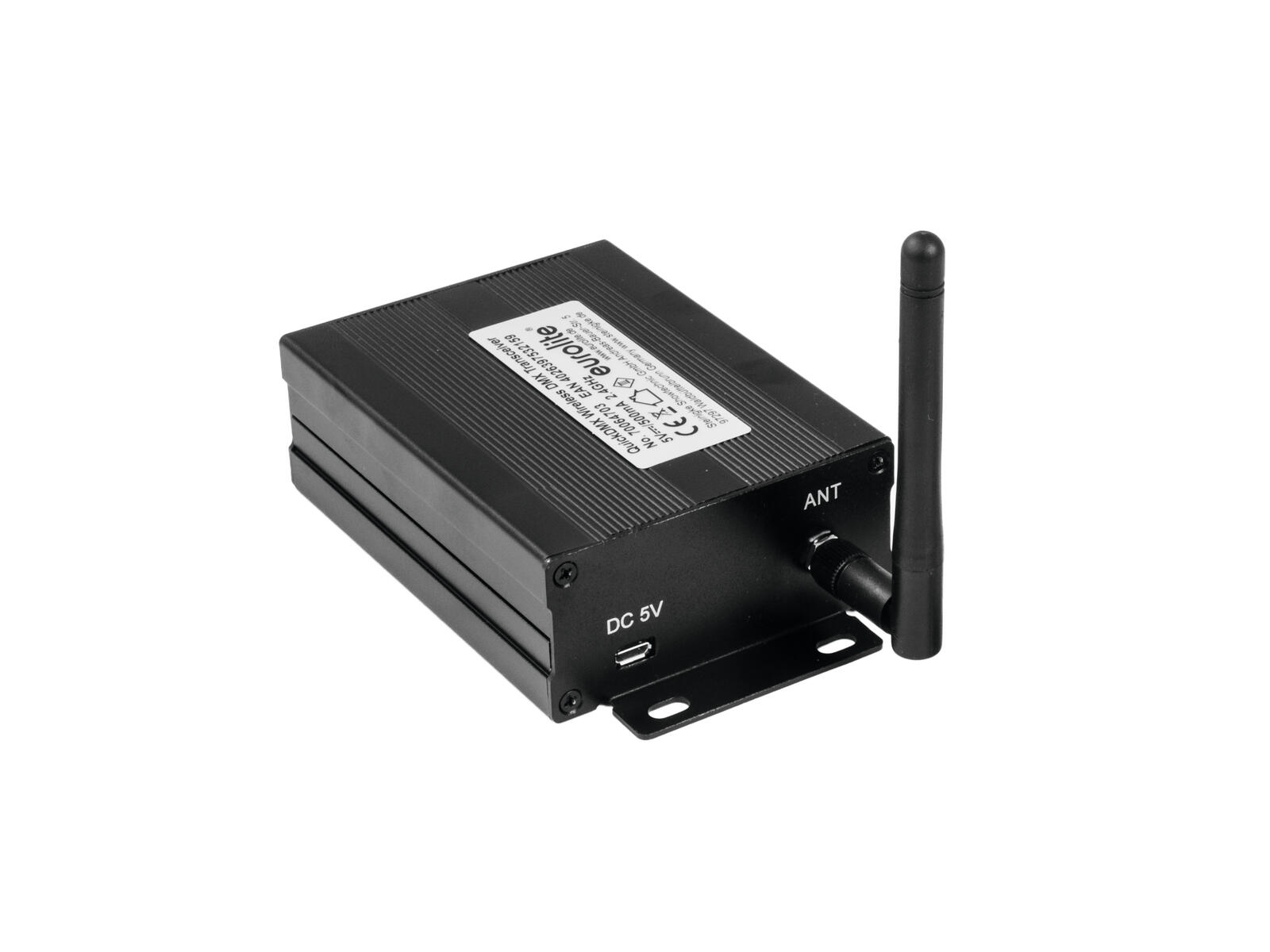

Wireless DMX system 2.4 GHz
- Auto-switching transceiver
- Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
- Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX transceiver and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
- 1 to 512 QuickDMX receivers can be controlled by each transmitter
- LED indication for functions
- Can receive and process up to 512 DMX channels
- Can transmit up to 512 DMX channels
- Control via DMX; QuickDMX; plug and play
- Operating range up to 400m
- Up to 6 transmitters can be operated in parallel without interference
Scope of delivery
- 1 x device
- 1 x user manual
- 1 x external mains adapter
- 1 x USB cable
- 1 x antenna
- 1 x declaration of conformity
| Power supply: | 100-240 V AC, 50/60 Hz 5V DC 500 mA |
| Power connection: | Mains input via USB C (W) mounting version power supply cord for USB A mains connection (provided) |
| DMX channels: | Input 512 Output 512 |
| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Control: | DMX; QuickDMX; plug and play |
| Range: | Range up to 400m |
| Carrier frequency: | 2.4 GHz |
| Parallel mode: | Max. 6 transmitter |
| RF power output: | 19 dBm |
| Modulation: | GFSK |
| Color: | Black |
| Dimensions: | Width: 21.2 cm Depth: 10 cm Height: 7.5 cm |
| Weight: | 0.29 kg |
