Approved safety bond
- Rope with thimble and connector

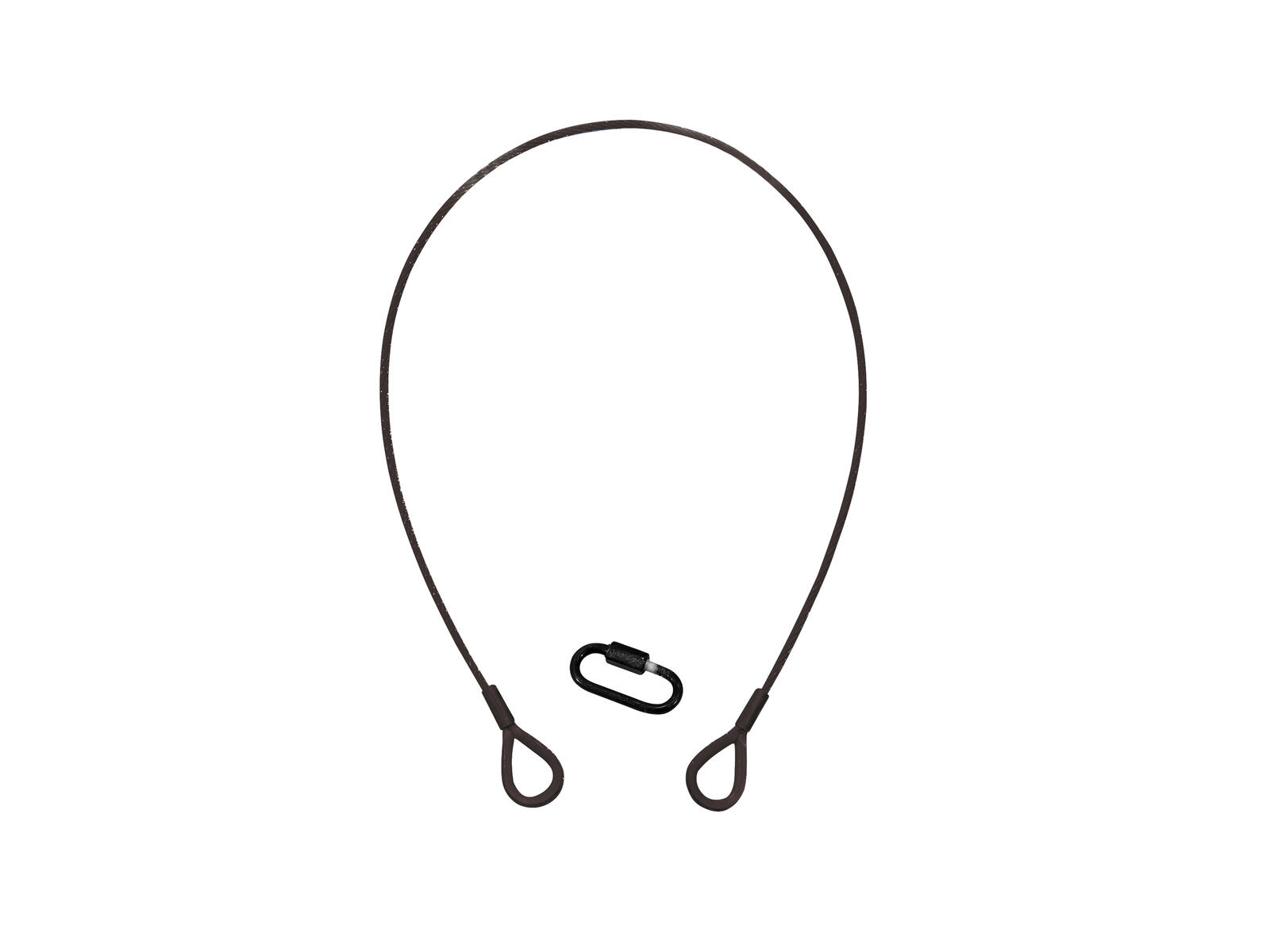

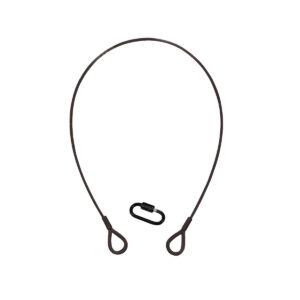

EUROLITE Steel Rope (SC) 600x3mm black with thimbles
Installation rope, safety bond, safety
- Round strand rope 6 x 19 with fibre core
- With two thimbles
- Suitable for installing and securing loads above persons
- Complies with DIN EN 12385-4:2008-06 and DIN 56927:2009-03
- Rope with thimble

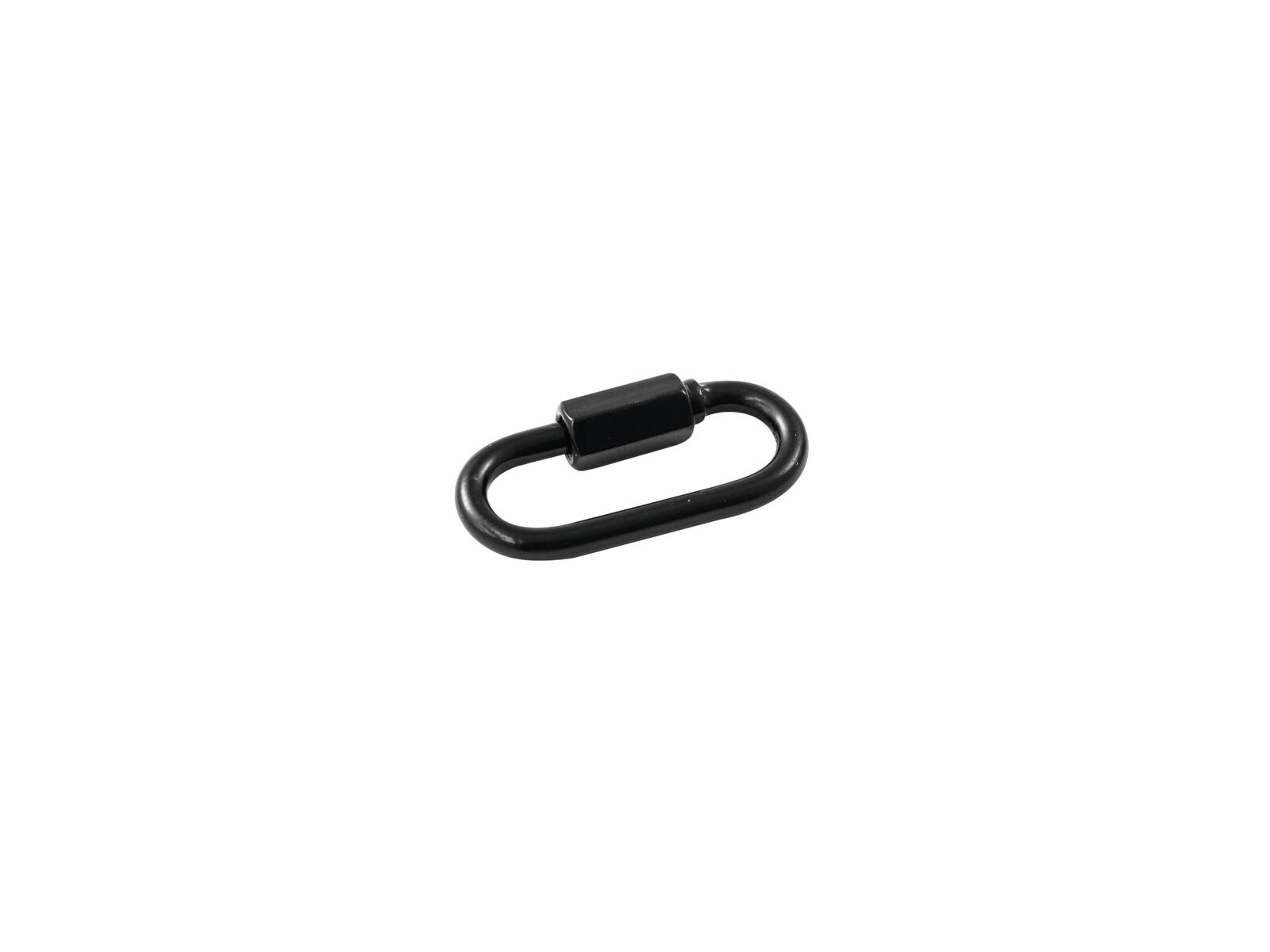

EUROLITE Quick Link Typ A-50 black
Quick link
- Complies with DIN 56927:2009-03
Scope of delivery
1 x EUROLITE Quick Link Typ A-50 black
- 1 x device
| Secured weight (BGV C1): | Max. 5 kg |
| Strength classification: | 1770 |
| Temperature range: | -40° C – +100° C |
| Weight: | 0.05 kg |
| EUROLITE Steel Rope (SC) 600x3mm black with thimbles | |
| Maximum load WLL (5-fold): | 100 kg |
| Design of the core: | 6 x 19 WSC |
| Standard: | DIN EN 12385-4:2008-06, DIN 56927:2009-03 |
| Nominal tensile strenght of rope: | 1770 N/mm² |
| Wire surface: | Zinc-plated |
| Color: | Black |
| Temperature range: | -40° C – +100° C |
| Dimensions: | Length: 60 cm Diameter: Ø 0.30 cm |
| Weight: | 0.04 kg |
| Length weigth: | 0.0311 kg/m |
| EUROLITE Quick Link Typ A-50 black | |
| Maximum load WLL (10-fold): | 50 kg |
| Standard: | DIN 56927:2009-03, |
| Shape: | A – small opening |
| Material: | Steel, zinc-plated |
| Opening: | 0-5.5 mm |
| Dimensions: | Length: 2.90 cm Width: 3.50 cm Depth: 1.90 cm Diameter: Ø 0.30 cm |
| Weight: | 0.01 kg |
