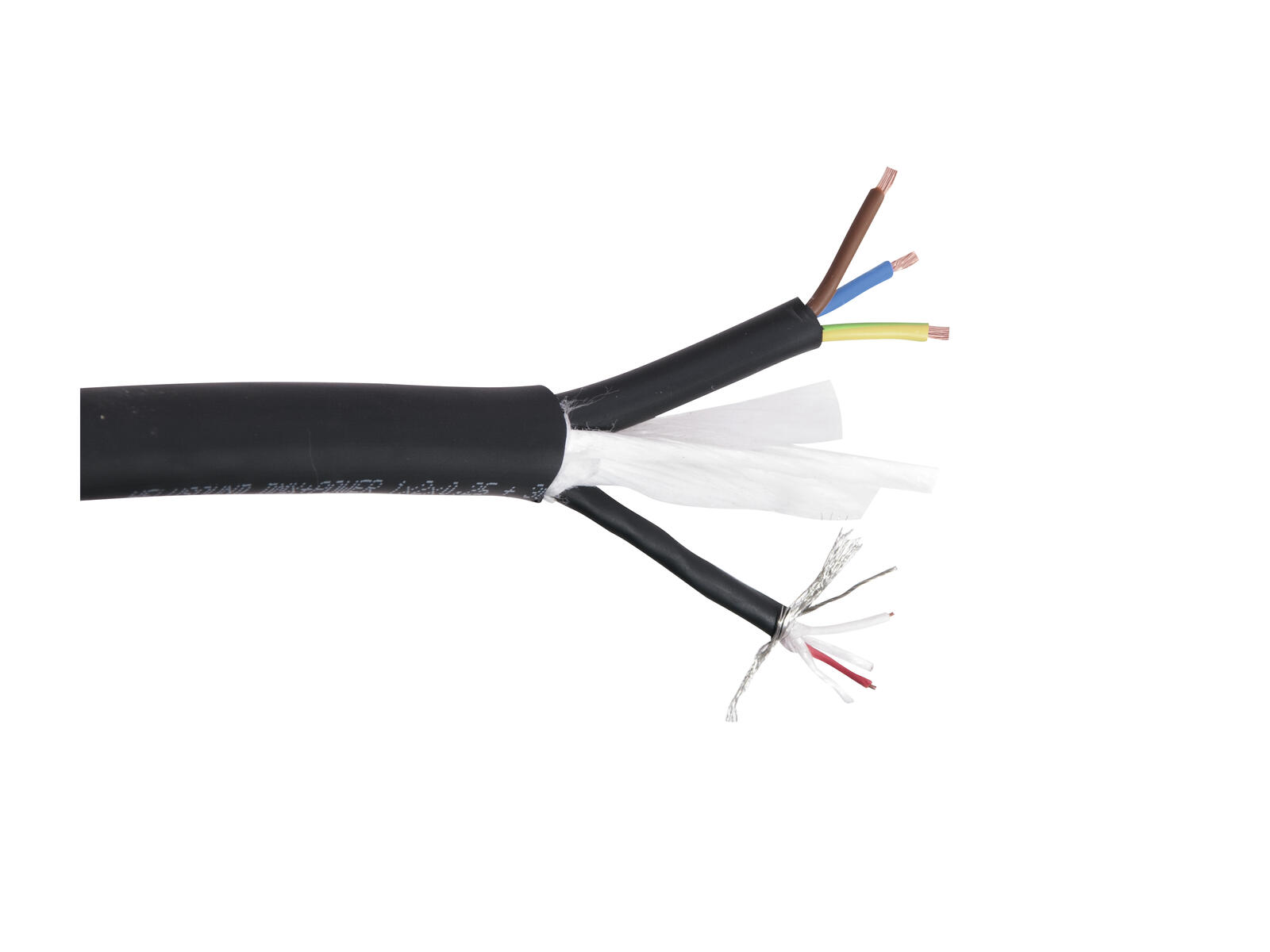

The HELUSOUND® DMX+POWER hybrid cable combines a shielded light control wire and the power supply wire. The DMX-cable, which is shielded by a tin-coated copper braiding is perfectly suited for the control of light systems and mixing boards (110 Ohm characteristic intrinsic impedance). It highlights a soft PVC insulation and it is qualified for the use at indoor and outdoor installations. The DMX cable can also be used for the transmission of audio signals such as a microphone wire or as a power supply wire for active loudspeaker systems.
High quality combi cable
- Parallel control for lighting boards through one cable via power line and DMX signal
- Very flexible and enormously tread-resistant
- Very good pairwise shielding of the DMX lines
- Control line for DMX lighting consoles (wave impedance of 110 ohms)
- Analogue + digital audio multipair with power supply
Scope of delivery
| Cable construction: | 2 x 0.22 mm² DMX cable; 3 x 1.5 mm² power cable |

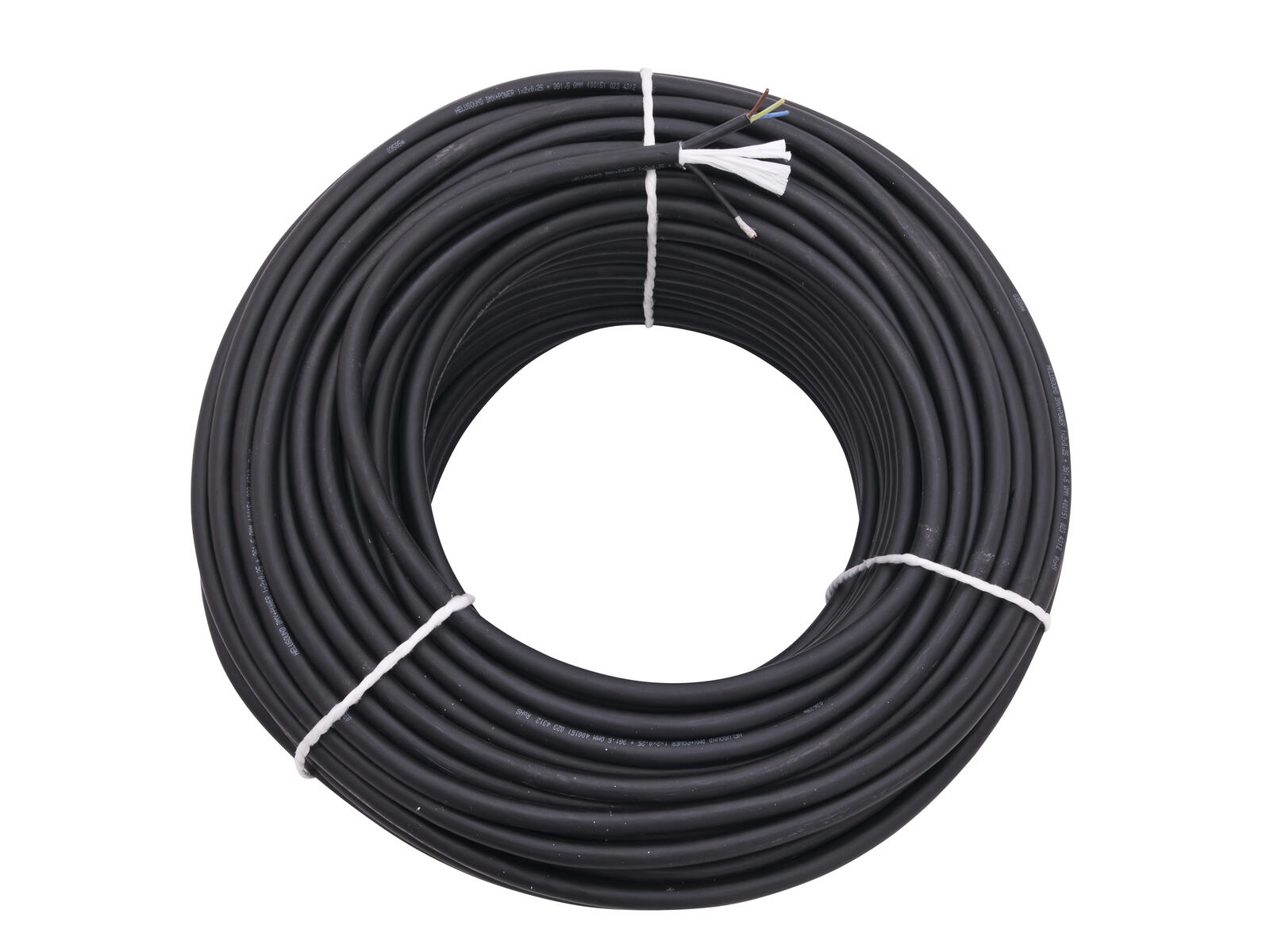

| Cable length: | 100 m |
| Dimensions: | Length: 10000 cm |
| Weight: | 21.10 kg |
