100 V transformer to units with line input
- RCA and XLR output, unbalanced
- Adjustable line output level (0-1.7 V at 100 V input voltage)
- Input and outputs galvanically isolated
- Robust steel housing
- No power supply via power unit or battery necessary
- With Lens head fitting

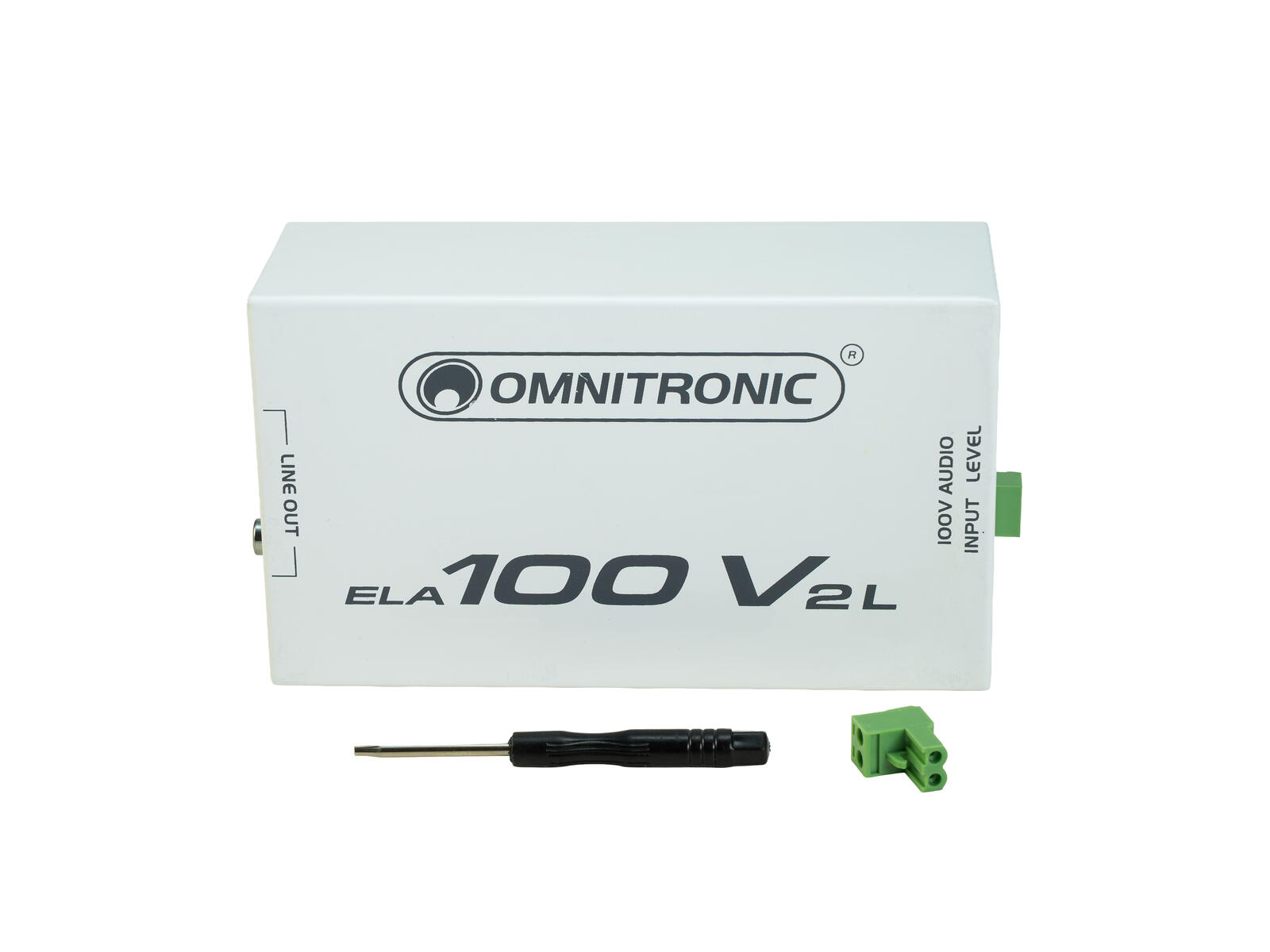

Scope of delivery
- 1 x device
- 1 x screw plug-in terminal
- 1 x screwdriver
- 1 x user manual
| Impedance: | Public address systems 100V |
| Attachment system: | 2x Ø 14mm Lens head fitting |

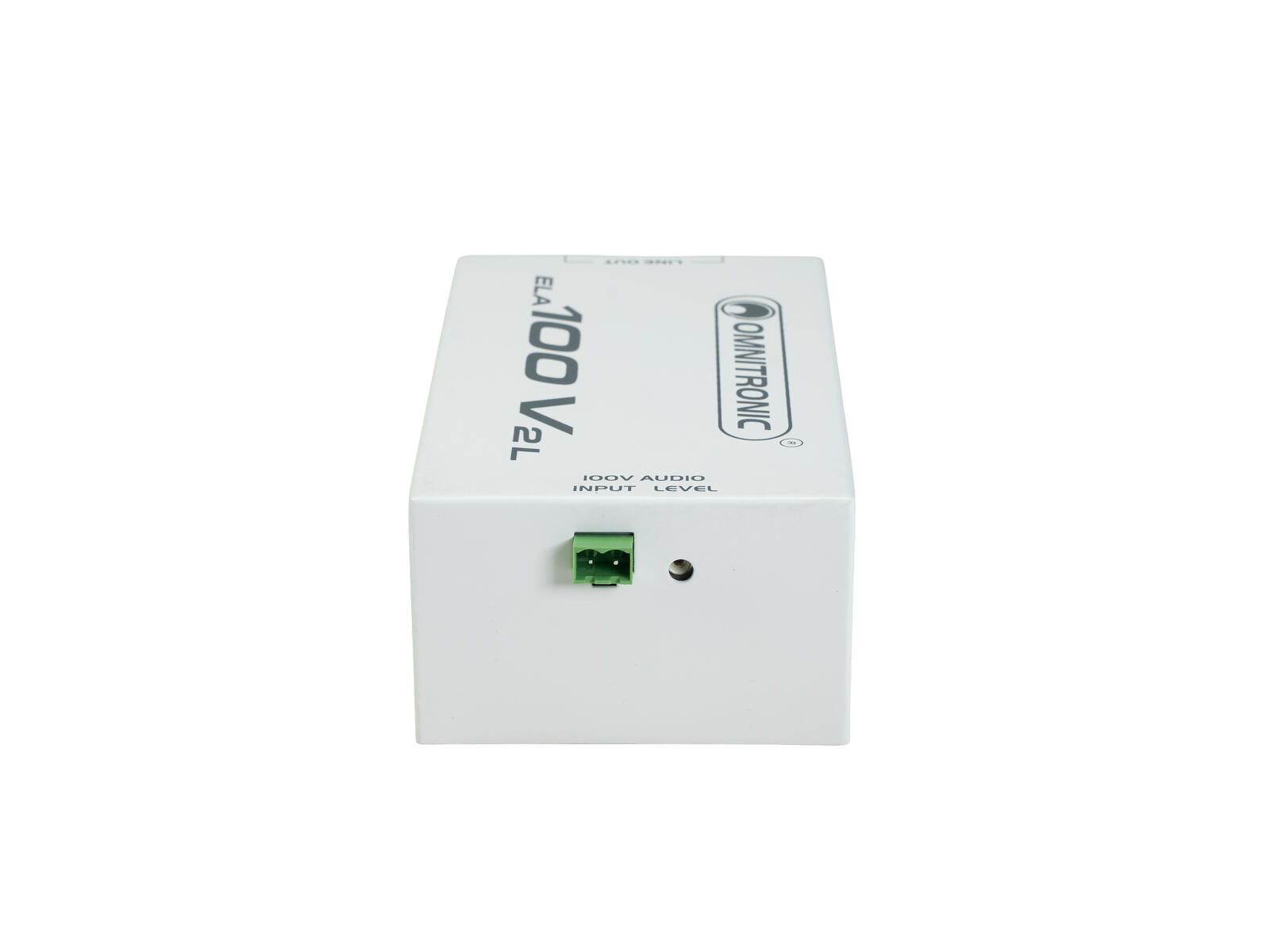

| Connections: | Input: public address systems 100V via screw plug-in terminal Output: line via 1 x 3-pin XLR (M) mounting version Output: line via 1 x RCA (F) mounting version |
| Material: | Steel, painted |
| Color: | White |
| Dimensions: | Width: 18 cm Depth: 9 cm Height: 5.5 cm |
| Weight: | 0.75 kg |
