The 1 U flat stereo mixing amplifier EPA-100BT with efficient class D output circuitry is particularly suitable for permanent installations in restaurants, gyms and retail locations which require quick-access music playback control. It provides 2 x 50 watts at 4 ohms and lets you play and control music from multiple sources. Equipped with connections for a microphone and a line-level audio source, it also features a built-in audio player with USB port and memory card slot as well as a Bluetooth receiver for wireless audio streaming directly from your smartphone, tablet or any other Bluetooth-enabled device.
19” mixing amplifier with audio player, Bluetooth and 2 x 50 W power
- Built-in audio player with USB port and SD card slot
- Adjustable stereo line input via XLR and RCA jacks
- Adjustable microphone input on the front panel
- Controls for volume, bass and treble
- Stereo line output via XLR and RCA jacks
- Screw terminals for low-impedance speakers
- Efficient Class D technology
- Extremely low weight and height due to integrated switch mode power supply
- (19" ) 48.3 cm rack installation possible 1 U
- The device is cooled by cooling fan
- Monochrome LCD display
- For application areas such as: Trade fair and shop fitting sports centres/gyms restaurants, bars and hotels
audio player
- Control via Bluetooth
- Bluetooth: operating range up to 10m
Scope of delivery
- 1 x amplifier
- 1 x power cord
- 1 x user manual
- 1 x declaration of conformity
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 100 W |
| Output power: | 30 W RMS (8 ohms) 50 W RMS (4 ohms) |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Frequency range: | 20 – 20000 Hz |
| Cooling: | Cooling fan |
| Circuitry: | Class D |
| Display type: | Monochrome LCD display |
| Control elements: | Groundlift selector |
| Controls: | Limiter |
| Status LED: | Power, signal, clip |

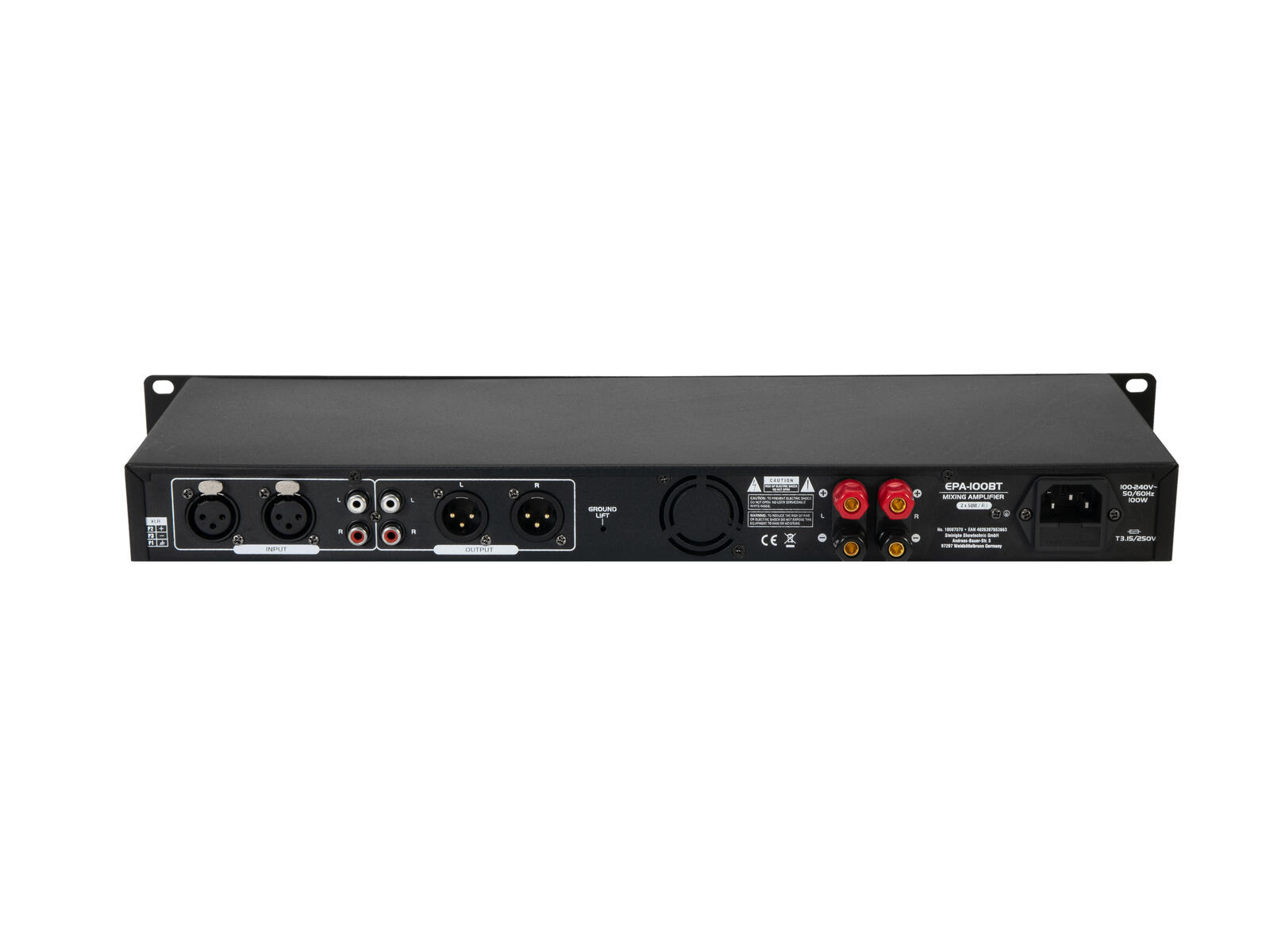

| Connections: | Input: microphone via 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) Input: line via 2 x 3-pin XLR Input: line via 1 x stereo RCA Output: line via 2 x 3-pin XLR Output: line via 1 x stereo RCA Output: speaker via screw terminal |
| Equalizer: | Master: 1 x 2-band tone control stereo |
| Housing design: | (19" ) 48.3 cm rack installation possible 1 U |
| Dimensions: | Width: 48.3 cm Depth: 21 cm Height: 4.45 cm |
| Weight: | 2.59 kg |
| Audio player | |
| Control: | Bluetooth |
| Audio player: | USB + SD + Bluetooth |
| Range: | Bluetooth: range up to 10m |
| Carrier frequency: | 2.4 GHz |
| Music format: | WMA MP3, WAV |
| Available storage media: | USB devices/SD cards max. 32GB |
