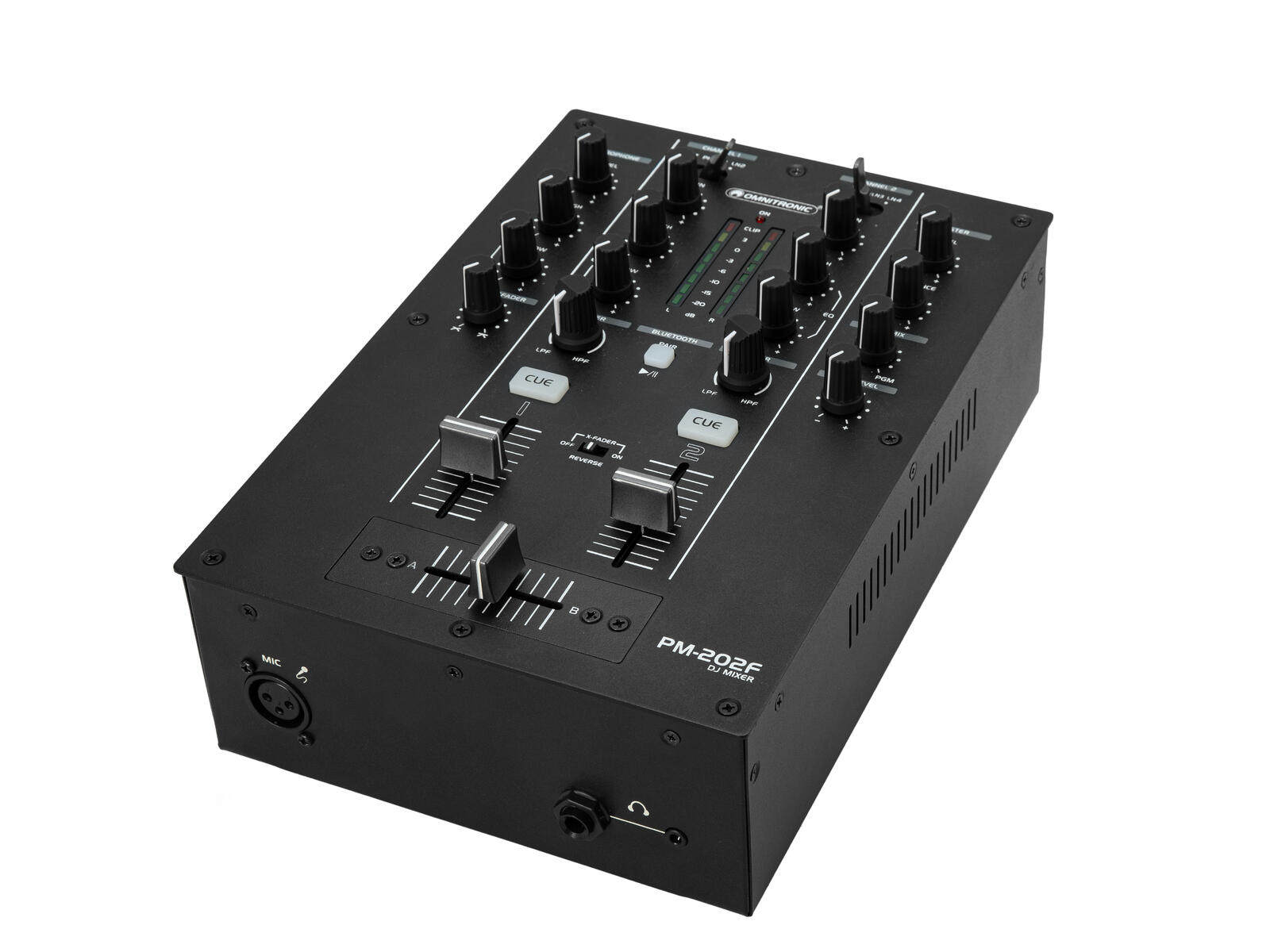

DJ mixer with Bluetooth connectivity and sound filter
- Bluetooth signal routable to channel 1 and 2
- DJ filter LPF/HPF bipolar per channal
- DJ microphone channel with level control and 2-band equalizer
- Crossfader with adjustable curve and reverse function
- Master channel with level control and stereo LED level meter
- 4 line and 2 phono inputs via RCA jacks
- Additional recording output
- Pre-fader listening to all input channels and the master output via adjustable stereo headphones output
- Control via Bluetooth
- Bluetooth: operating range up to 15m
- Desktop console housing
- For application areas such as: Party room mobile use mobile djs / entertainer
Scope of delivery
- 1 x mixer
- 1 x power cord
- 1 x antenna
- 1 x RCA cable
- 1 x user manual
- 1 x declaration of conformity
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | Max. 8 W |
| Protection class: | Protection class II |
| Power connection: | Mains input via C8 (M) " figure 8" mounting version power supply cord with Euro plug (provided) |
| Frequency range: | 20 – 20000 Hz |
| S/N ratio: | > 80 dB |
| THD: | < 0.1 % at 1 kHz |
| DJ filter: | Per channal: LPF/HPF bipolar, |
| Control: | Bluetooth |
| Bluetooth device name: | PM-202F |
| Range: | Bluetooth: range up to 15m |
| Crosstalk: | > 60 dB |
| Control elements: | Crossfader, Crossfade curve control, crossfade reverse switch, FX Parameter control, power switch |
| Status LED: | Power, master level meter |
| Connections: | Input: line/phono via 2 x stereo RCA Input: line via 2 x stereo RCA Input: microphone via 1 x 3-pin XLR (F) mounting version Input: antenna via 1 x SMA (F) mounting version Input: Earthing connection via 2 x screw terminal Output: master via 2 x 3-pin XLR (M) mounting version Output: master via 1 x stereo RCA Output: rec. via 1 x stereo RCA Output: headphones via 1 x 6.3 mm jack socket (stereo) mounting version Output: headphones via 1 x 3.5 mm jack (stereo) mounting version |
| Channels: | Input channel: 2 x stereo with Line-Line/Phono-Bluetooth switch via RCA, channel control via 60mm fader, 2-band tone control EQ, gain control, CUE switch Microphone channel: 1 x mono via XLR, channel control via rotary dial, 2-band tone control EQ Master output: 1 x stereo via XLR or RCA, channel control via rotary dial, balancecontrol Headphones output: stereo via jack, channel control via rotary dial, cue mix function Rec. output: stereo via RCA |
| Material: | Metal |
| Color: | Black |
| Housing design: | Desktop console housing |
| Dimensions: | Length: 30.5 cm Width: 19.0 cm Height: 11.0 cm |
| Weight: | 2.18 kg |
| Power cord | |
| Cable length: | 2.10 m detachable |
