2-channel DJ mixer
- 2 input channels with gain control, 2-way equalizer and phono/line switching
- DJ microphone input with separate level control
- Pre-fader listening (CUE) to the input channels via adjustable headphones output, with cue mix control
- Replaceable crossfader for crossfading between both channels
- 6-digit stereo LED level meter and master level control
- Outputs: master and record (stereo RCA)
- Desktop console housing
- For application areas such as: Clubs/dancing school mobile djs / entertainer installation
Scope of delivery
- 1 x user manual
- 1 x power cord
- 1 x mixer
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 30.00 W |
| Protection class: | Protection class II |
| Power connection: | Mains input via C8 (M) " figure 8" mounting version power supply cord with Euro plug (provided) |
| Frequency range: | 20 – 20000 Hz |
| S/N ratio: | > 70 dB |
| THD: | < 0.025 % at 1 kHz |
| Impedance: | Input: microphone 47 kOhm Input: line 47 kOhm Input: phono 47 kOhm |
| Gain: | Input: variable |
| Control elements: | Power switch, source selector, crossfader |
| Status LED: | Master level meter, power |

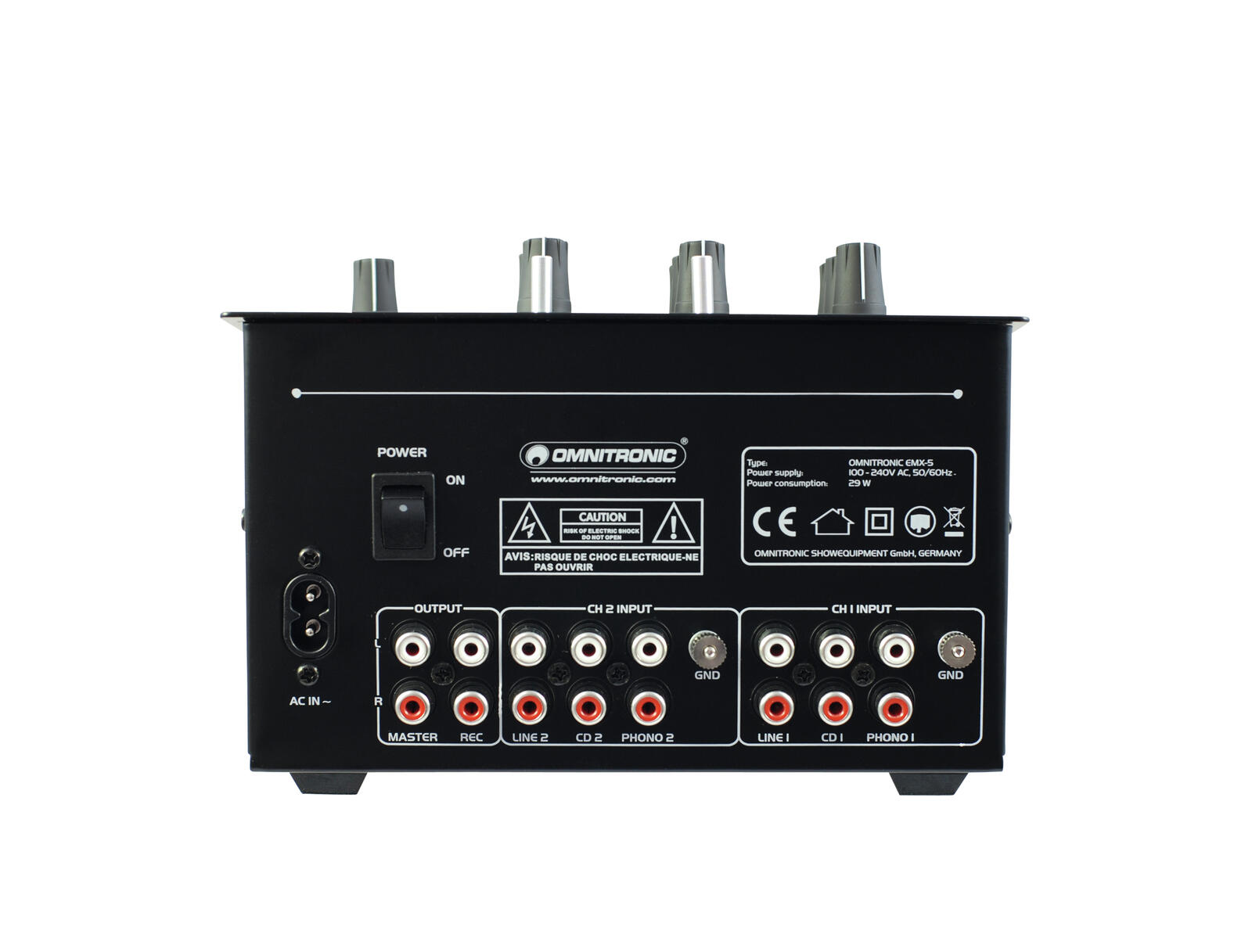

| Connections: | Input: microphone via 1 x 6.3 mm jack socket (mono) mounting version Input: line via 4 x stereo RCA Input: phono via 2 x stereo RCA Output: master via 1 x stereo RCA Output: rec. via 1 x stereo RCA Output: headphones via 1 x 6.3 mm jack socket (stereo) mounting version |
| Channels: | Input channel: 2 x stereo with line-line-phono switch via RCA, channel control via fader, 2-band tone control EQ, gain control Microphone channel: 1 x mono via jack, channel control via rotary dial, cue mix function Master output: 1 x stereo via RCA, channel control via rotary dial Headphones output: 1 x stereo via jack, channel control via rotary dial |
| Max. level: | Output: master +19 dBu |
| Housing design: | Desktop console housing |
| Dimensions: | Width: 19 cm Depth: 26 cm Height: 13.7 cm |
| Weight: | 2.00 kg |
