Microphone with PLL multifrequency transmitter for WAM-402, 823-832 + 863-865 MHz
- Dynamic hand-held microphone with UHF pilot tone technology (PLL)
- Ergonomic aluminum alloy housing, applicable for touring
- Easy and error-free synchronization between receiver and transmitter via infrared signal
- RF output power Hi/Low adjustable
- Gain level Hi/Mid/Low adjustable
- Polar pattern: Cardioid
- Operating range up to 60m
- UHF 823 – 832 MHz License-free and approved in large parts of Europe
- UHF 863 – 865 MHz License-free and approved in Europe
- OLED display
- Charge status indicator
Scope of delivery
- 1 x microphone
- 1 x user manual
- 1 x declaration of conformity
| Type: | Hand-held transmitter |
| Power supply: | 3V DC |
| Capsule type: | Dynamic |
| Polar pattern: | Cardioid |

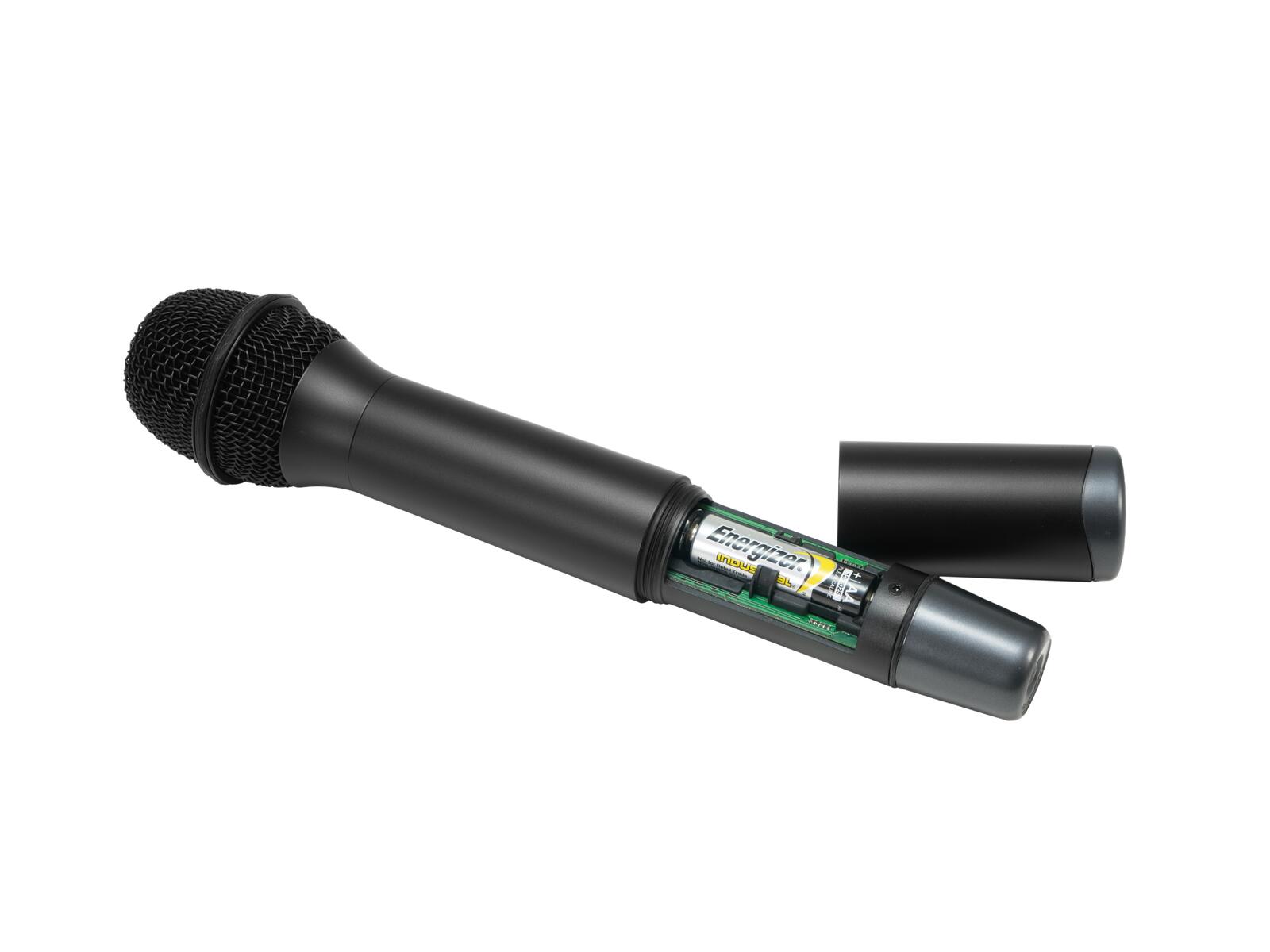

| Battery: | 2 x Mignon (AA) (not included) |
| Range: | Range up to 60m |
| Frequency band: | UHF 823 – 832 MHz; UHF 863 – 865 MHz |
| Switching bandwidth: | 11 MHz |
| RF power output: | 10 mW |
| Modulation: | FM |
| Frequency selection: | 90 switchable frequencies In 10 groups with up to 10 preset frequencies each |
| Display type: | OLED display |
| Display: | Charge status indicator , frequency , channel |
| Control elements: | Gain-switch (high-mid-low), transmitter power switch (high-low) |
| Switch: | On/off/mute switch |
| Material: | Aluminum |
| Color: | Black |
| Dimensions: | Length: 26.5 cm Diameter: Ø 5.6 cm |
| Weight: | 0.31 kg |
