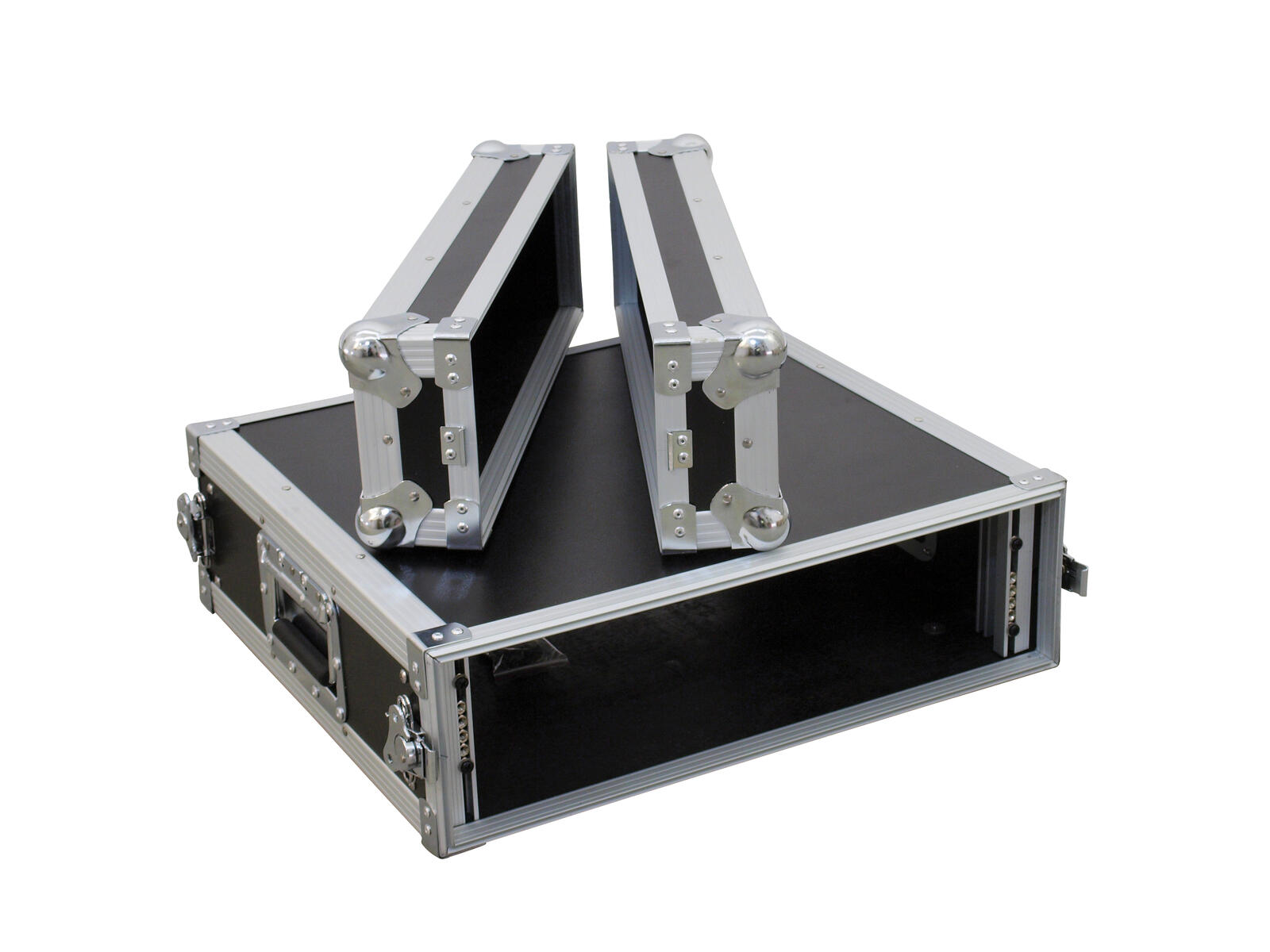

Flightcase for 483 mm devices (19”)The ROADINGER amplifier rack PR-1 with 3 U is optimally suited for your 19” equipment such as power amplifiers and other accessories. The maximum installation depth is 420 mm plus 90 mm per cover. The case features high-quality, 7 mm thick sides made of multi-layer glued and black laminated wood. The aluminium profile frame with rounded corners and the three-legged, medium-sized steel ball corners provide additional stability. The amplifier rack is equipped with four snap locks, two chrome-plated case folding handles and two wooden sliding rails on the floor. Both lids are removable.The maximum load is 50 kg.
Rack case
- 3 U
- High-quality workmanship with plywood multi-layer glued 7 mm, black, laminated
- 2 removable covers (double-Door-Version)
- Aluminum profile frames 30mm with rounded edges
- 2 hinged, chromium plated case handles
- 4 high-quality spring locks
- 2 x wooden slide rails on the bottom
- Available in different height units (1 U = 44 mm)
- With profile rails suitable for 19" units
- For further information about this product, please refer to the Data Sheet under "Downloads"
Scope of delivery
| Maximum load: | 50 kg |
| Removable covers: | 2 pc/pcs |
| Aluminum profile frames: | 30 mm |
| Case handle: | 2 pc/pcs |
| Lock: | Spring lock: 4 pc/pcs |
| Transport aid: | 2 x wooden slide rails on the bottom |
| Material: | Plywood multi-layer glued, 7 mm |
| Color: | Black, laminated |
| Front panel width: | 19" |
| Mounting height: | Approx. 13.5 cm (3 U) |
| Mounting depth: | 470 mm |
| Housing design: | 3 U |
| Dimensions: | Width: 54.5 cm Depth: 64 cm Height: 17.5 cm |
| Weight: | 8.60 kg |
