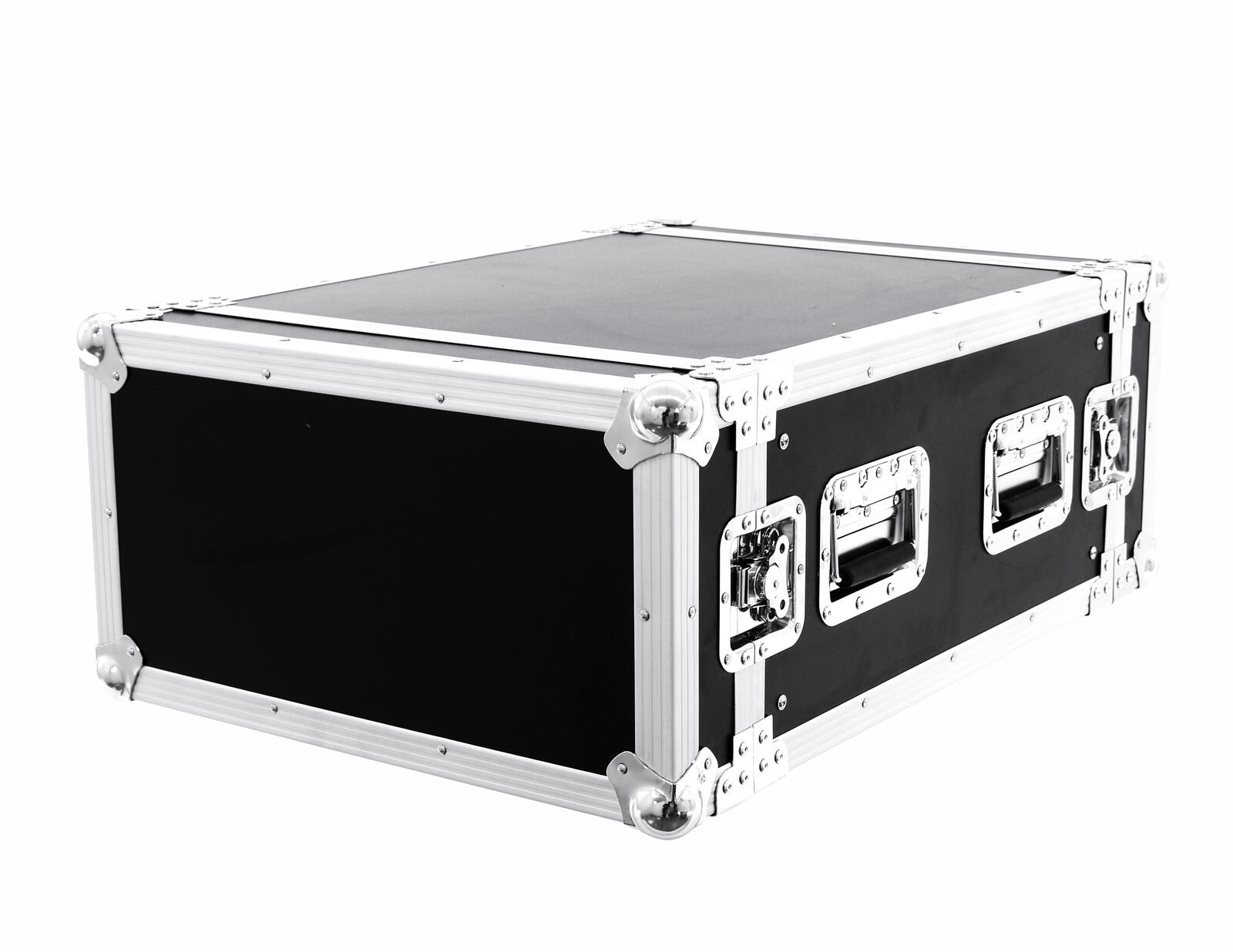

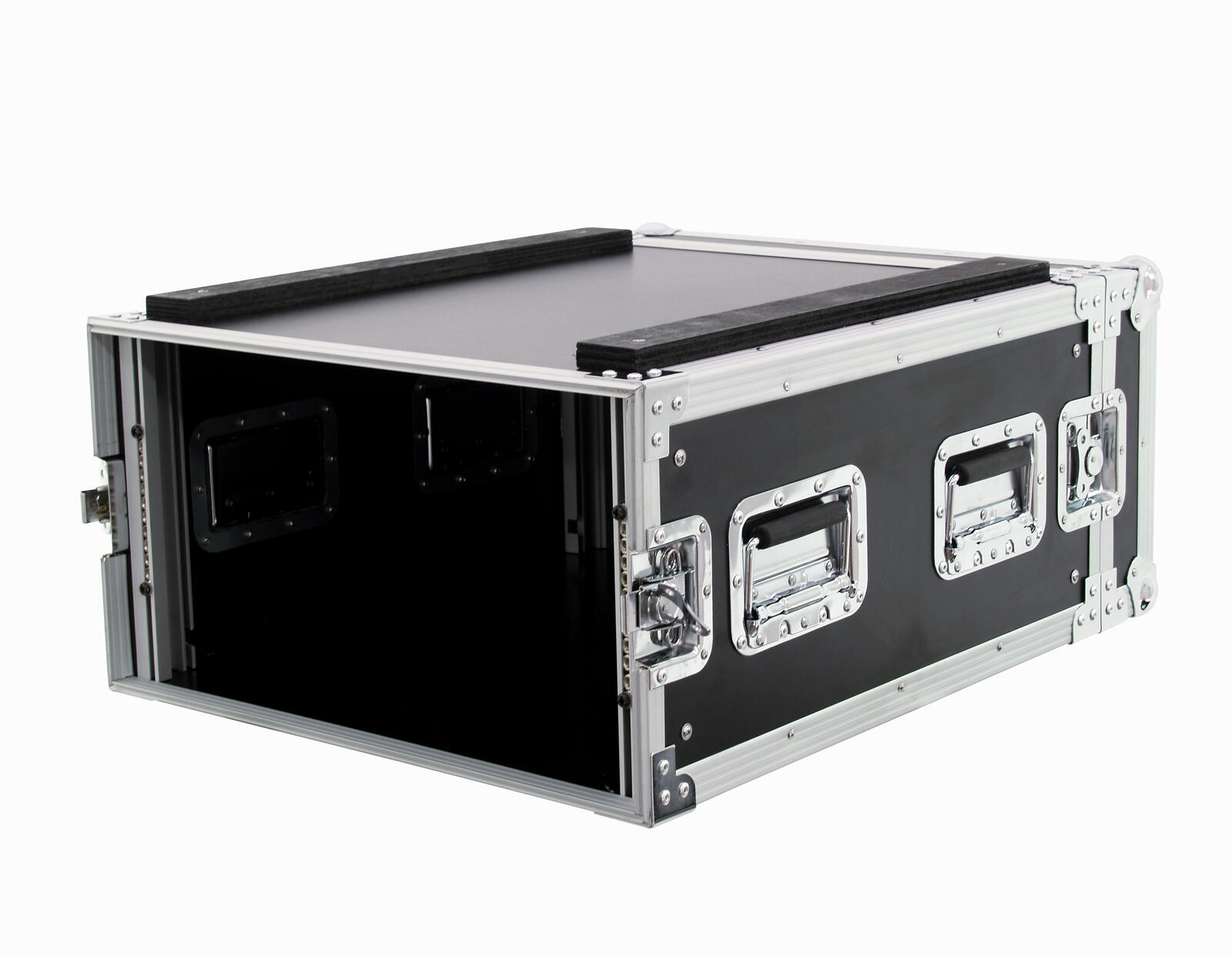

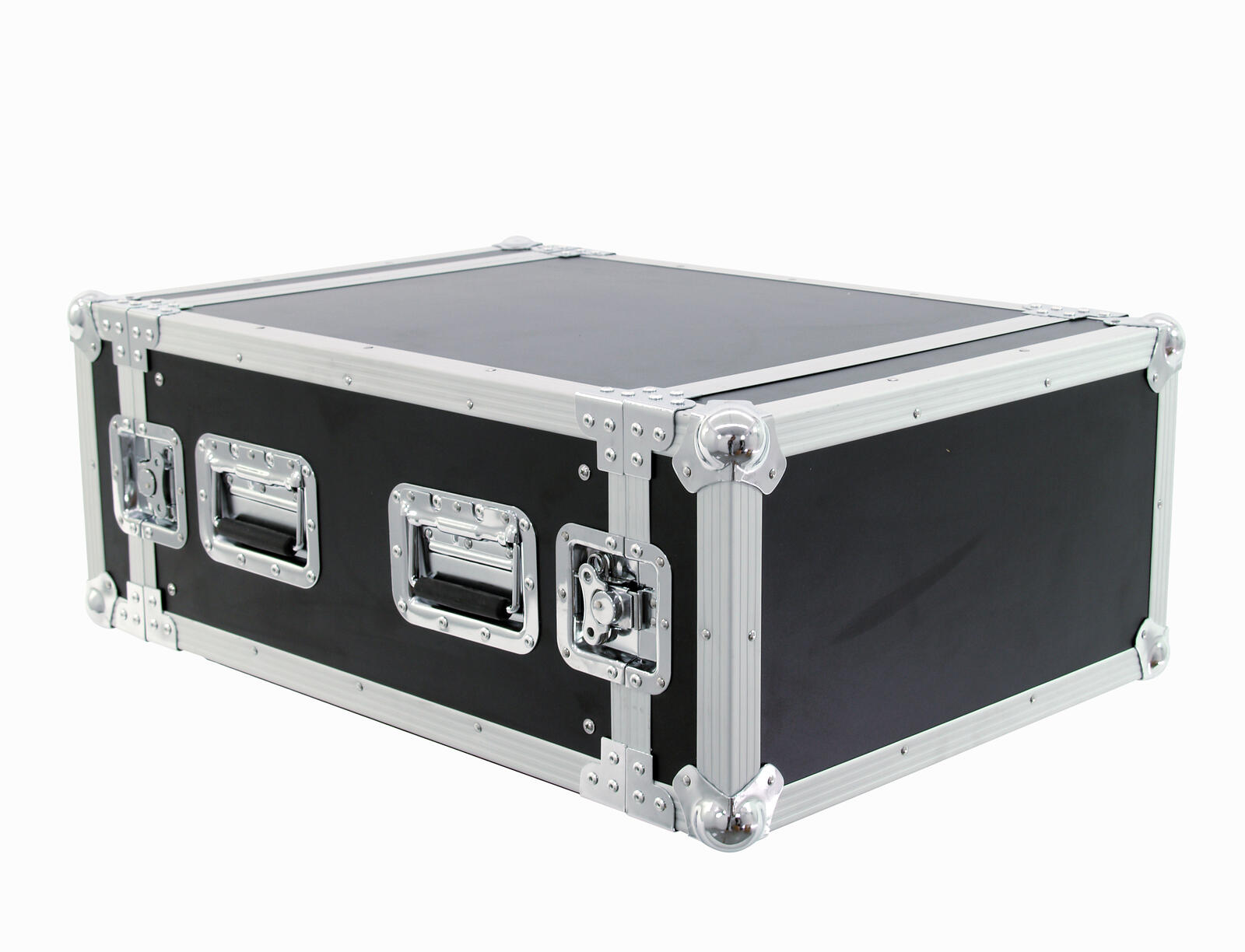

Rack case

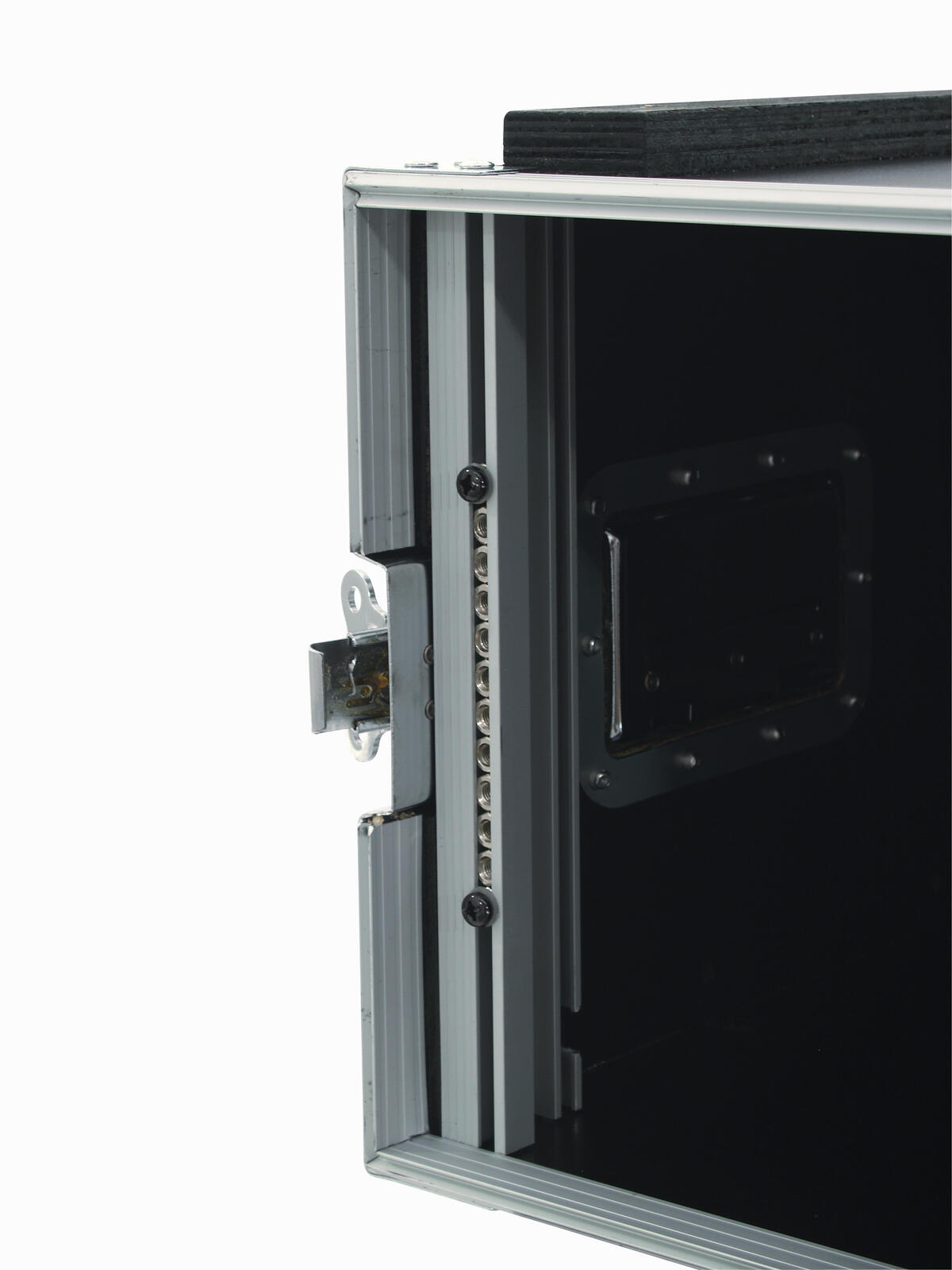

- Front and rear rack rails
- 6 U
- High-quality workmanship with plywood multi-layer glued 7 mm, black, laminated
- Aluminum profile frames 30mm with rounded edges
- 4 hinged, chromium plated case handles
- 4 high-quality butterfly locks
- Wooden slide rails on the bottom
- Available in different height units (1 U = 44 mm)
- With profile rails suitable for 19" units
- With extra large installation depth
- For further information about this product, please refer to the Data Sheet under "Downloads"
Scope of delivery
| Maximum load: | 60 kg |
| Aluminum profile frames: | 30 mm |
| Case handle: | 4 pc/pcs |
| Lock: | Butterfly lock: 4 pc/pcs |
| Transport aid: | Wooden slide rails on the bottom |
| Material: | Plywood multi-layer glued, 7 mm |
| Color: | Black, laminated |
| Front panel width: | 19" |
| Mounting height: | Approx. 26.5 cm (6 U) |
| Mounting depth: | 550 mm |
| Housing design: | 6 U |

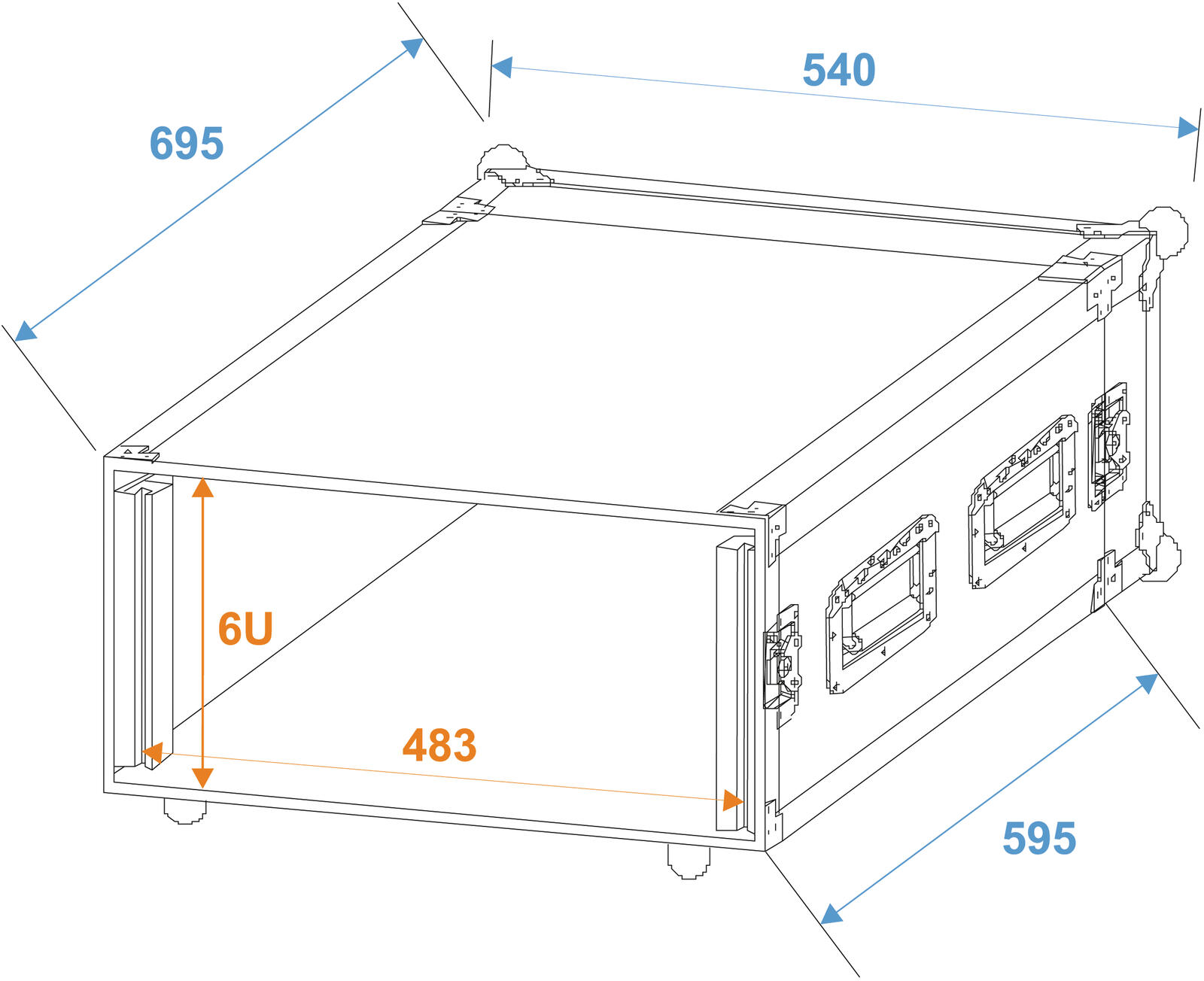

| Dimensions: | Width: 55 cm Depth: 80 cm Height: 31 cm |
| Weight: | 13.40 kg |
