Flightcase for 483 mm units (19”)Transport your 483 mm control and effect units (19”) easily and safely with the ROADINGER effect rack CO DD. Two removable lids (double-door version), four large, steel-reinforced rubber feet and built-in rack rails make handling with the flightcase easy and comfortable.Multi-layered glued wood, the stable aluminium profile frame with rounded corners and three-legged, medium-sized steel ball corners give the case stability.The flight case is equipped with four snap locks with eyelets for locking, built-in rack rails and a case handle. The maximum load is 25 kg.
Rack case
- Built-in rack rails
- 4 U
- High-quality workmanship with plywood multi-layer glued 7 mm, black, laminated
- 2 removable covers (double-Door-Version)
- Aluminum profile frames 22mm with rounded edges
- Rugged carrying handle
- 4 high-quality spring locks with shut-off function
- Rubber feet
- Available in different height units (1 U = 44 mm)
- With profile rails suitable for 19" units
- For further information about this product, please refer to the Data Sheet under "Downloads"
Scope of delivery
| Maximum load: | 25 kg |
| Removable covers: | 2 pc/pcs |
| Aluminum profile frames: | 22 mm |
| Carrying handle: | 1 pc/pcs |
| Lock: | Spring lock: 4 pc/pcs with shut-off function |
| Transport aid: | Rubber feet |
| Material: | Plywood multi-layer glued, 7 mm |
| Color: | Black, laminated |
| Front panel width: | 19" |
| Mounting height: | Approx. 18 cm (4 U) |
| Mounting depth: | 250 mm |
| Housing design: | 4 U |

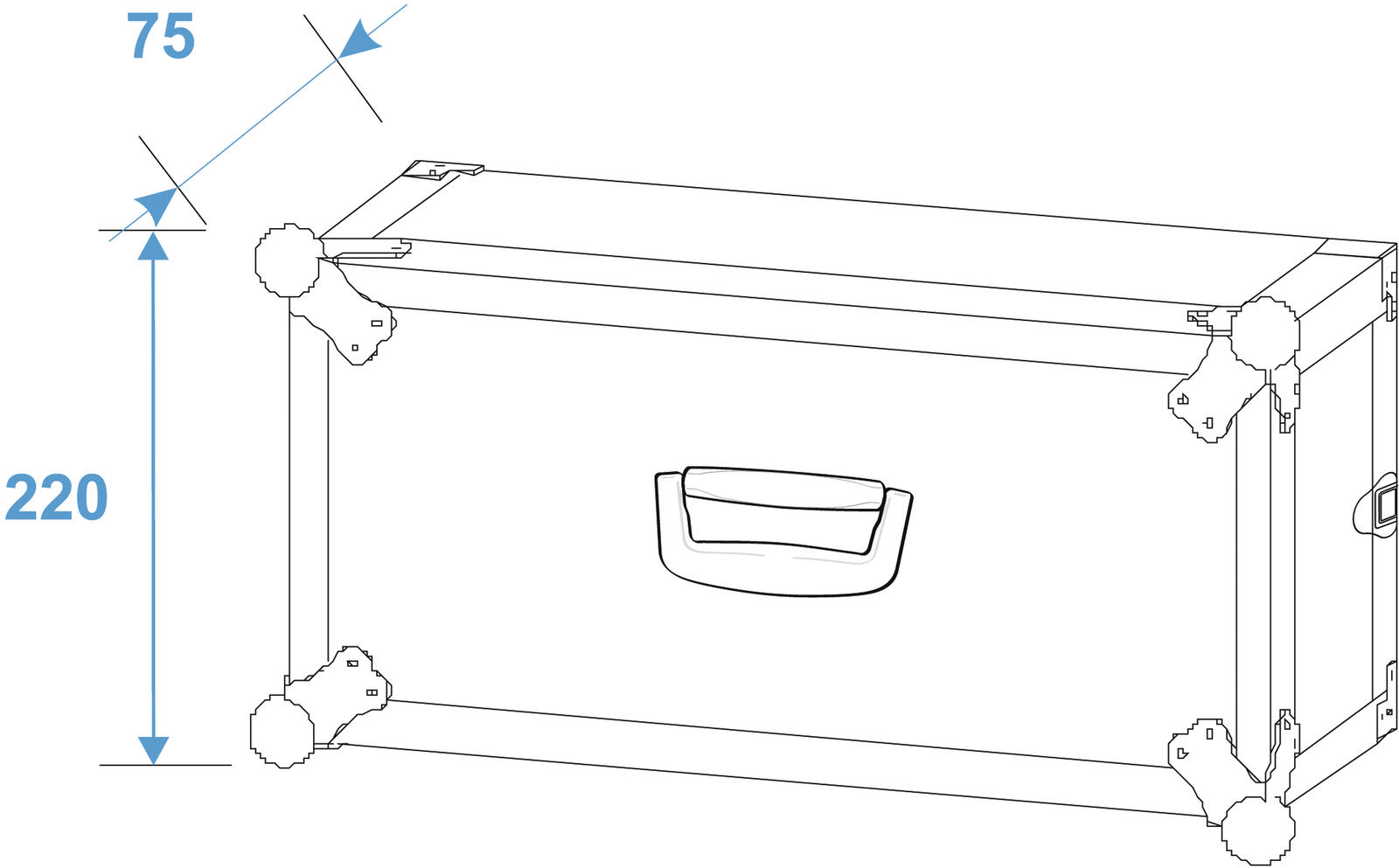

| Dimensions: | Width: 52.5 cm Depth: 40 cm Height: 23.5 cm |
| Weight: | 5.50 kg |
