Rack case with castors
- 17 U
- High-quality workmanship with plywood multi-layer glued 9 mm, black, laminated
- 3 removable covers
- Aluminum profile frames 30mm with rounded edges
- 4 hinged, chromium plated case handles
- 5 high-quality butterfly locks
- 4 x castors with 2 locking brakes
- With profile rails suitable for 19" units
- With extra large installation depth
- For further information about this product, please refer to the Data Sheet under "Downloads"
Scope of delivery
| Maximum load: | 100 kg |
| Removable covers: | 3 pc/pcs |
| Aluminum profile frames: | 30 mm |
| Case handle: | 4 pc/pcs |
| Lock: | Butterfly lock: 5 pc/pcs |
| Transport aid: | 4 x castors with 2 locking brakes |
| Material: | Plywood multi-layer glued, 9 mm |
| Color: | Black, laminated |
| Front panel width: | 19" |

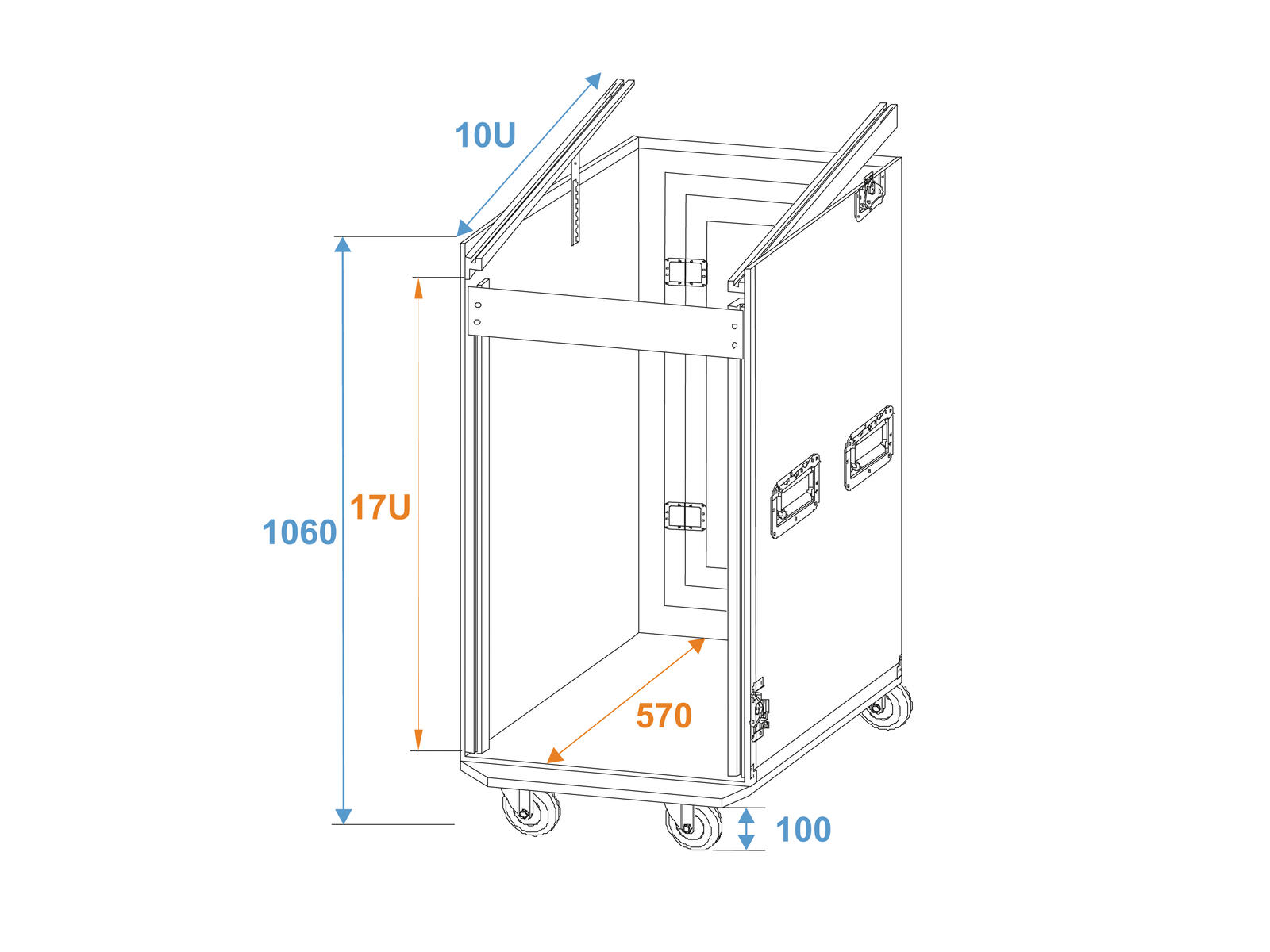

| Mounting height: | Top with adjustable tilt angle approx. 44.5 cm (10 U) Front approx. 75.5 cm (17 U) |
| Mounting depth: | 570 mm |
| Housing design: | 17 U |
| Dimensions: | Width: 55 cm Depth: 61.5 cm Height: 103.5 cm |
| Weight: | 34.20 kg |
