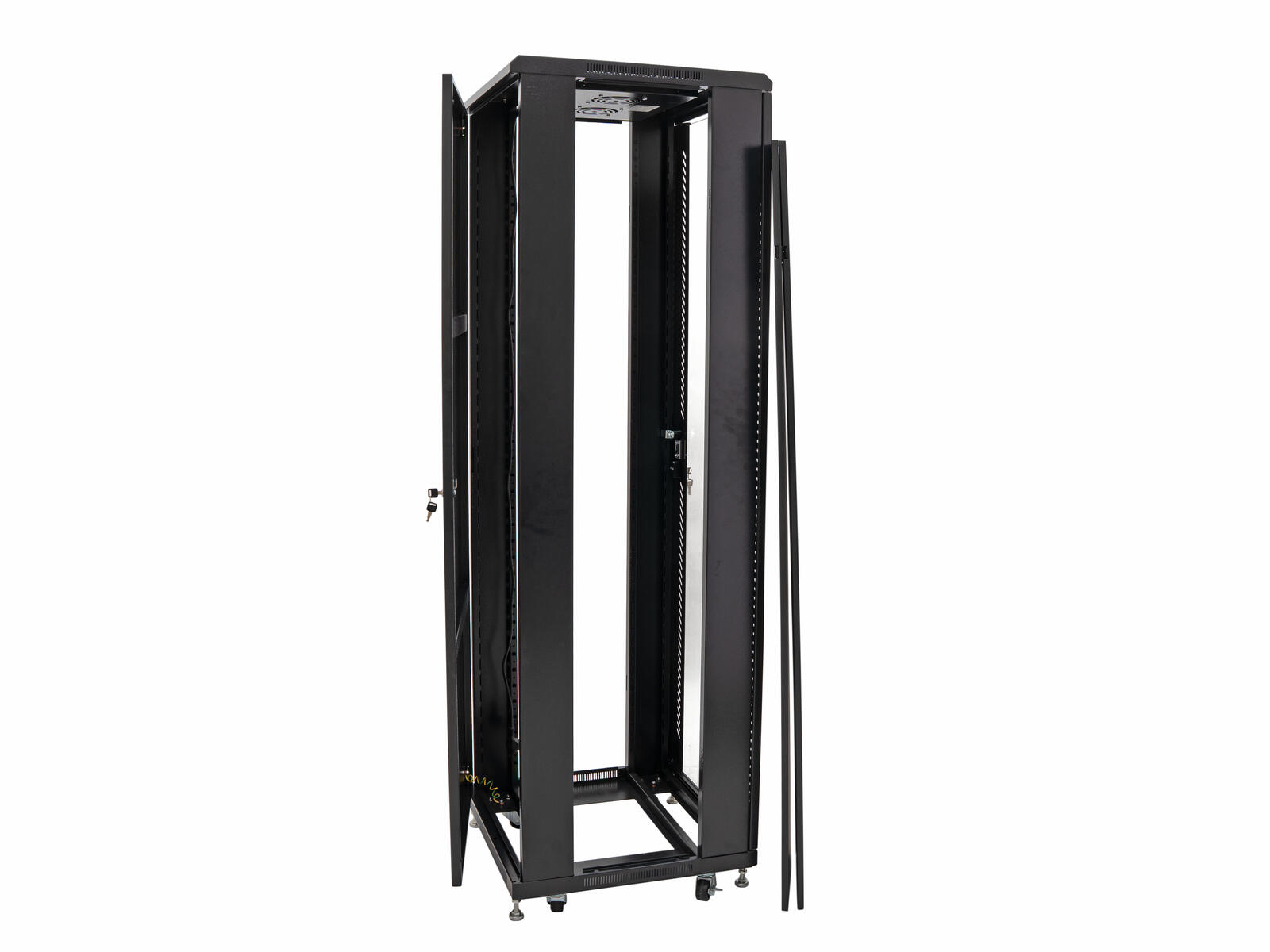

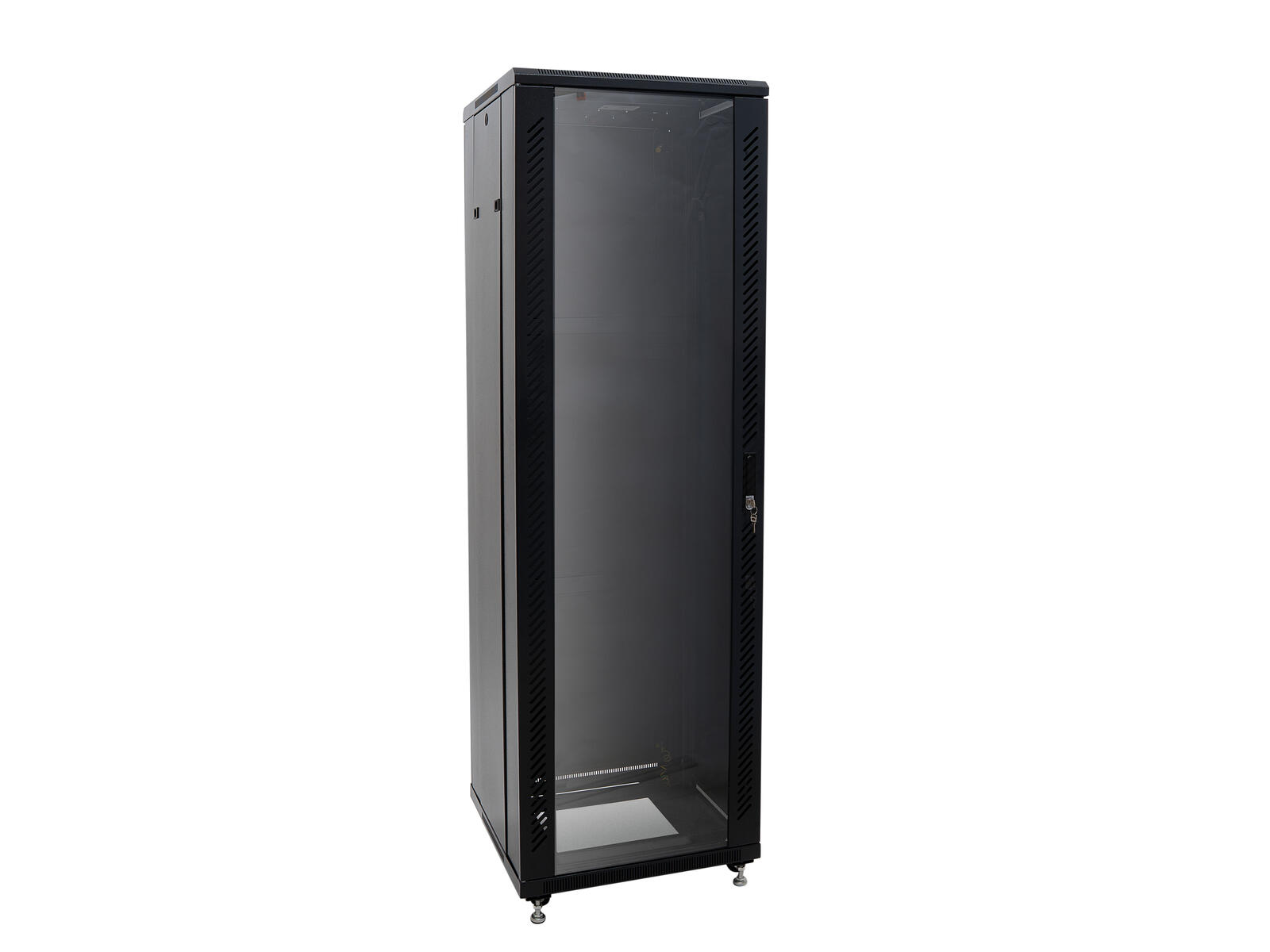

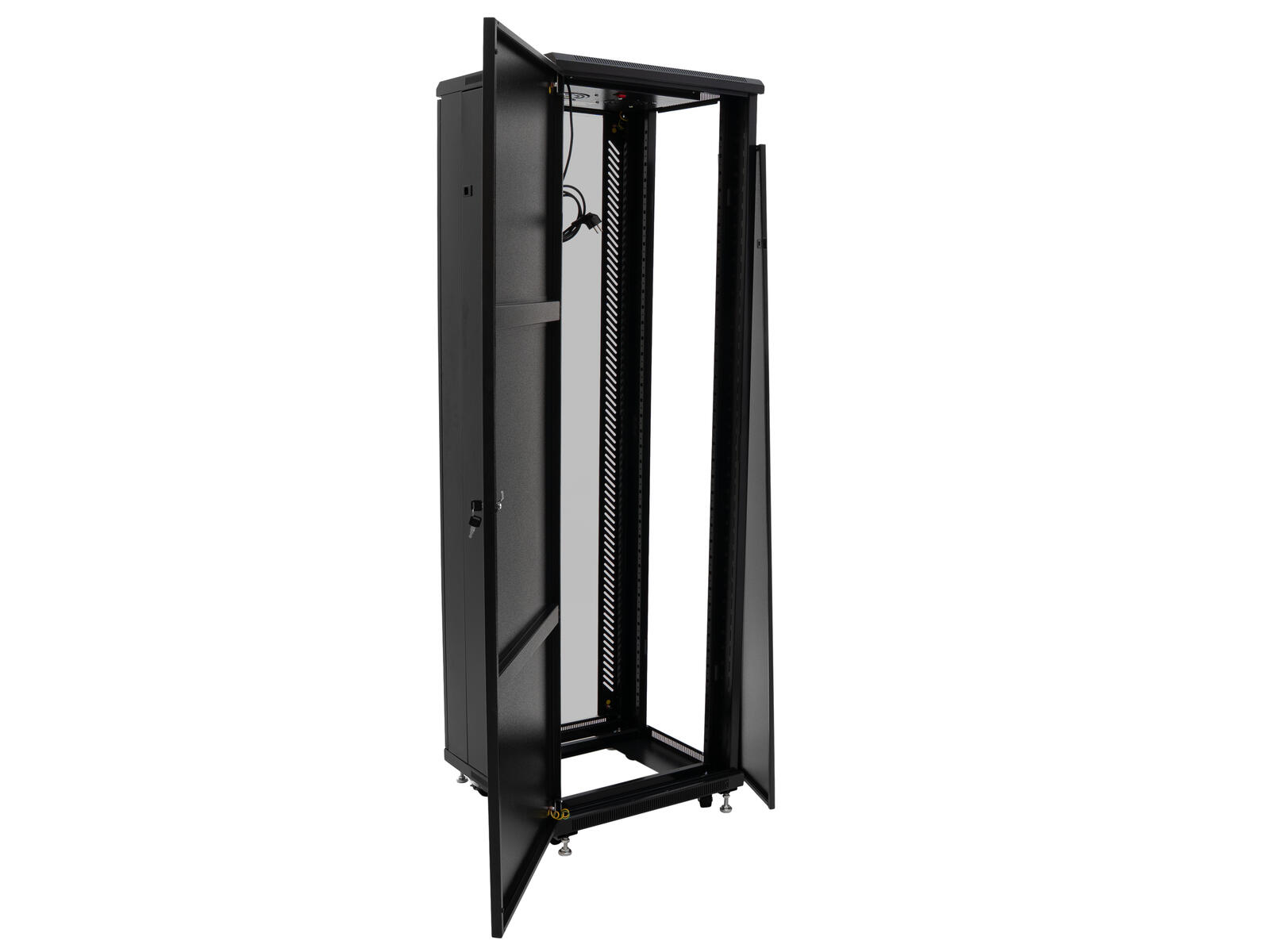

19” steel cabinet with lockable doors and fan unit
- The article is delivered dismantled
- Available in different height units (1 U = 44 mm)
ROADINGER Steel Cabinet Door/Side Panels for SSC-28, 28U
- Door front panel made of 4mm-Safety glass (ESG)
- Door front panel with cylinder lock
- Door hinge can be changed
- Door rear panel with cylinder lock
- Removable side panels
ROADINGER Steel Cabinet Base and Top Part for SSC Series

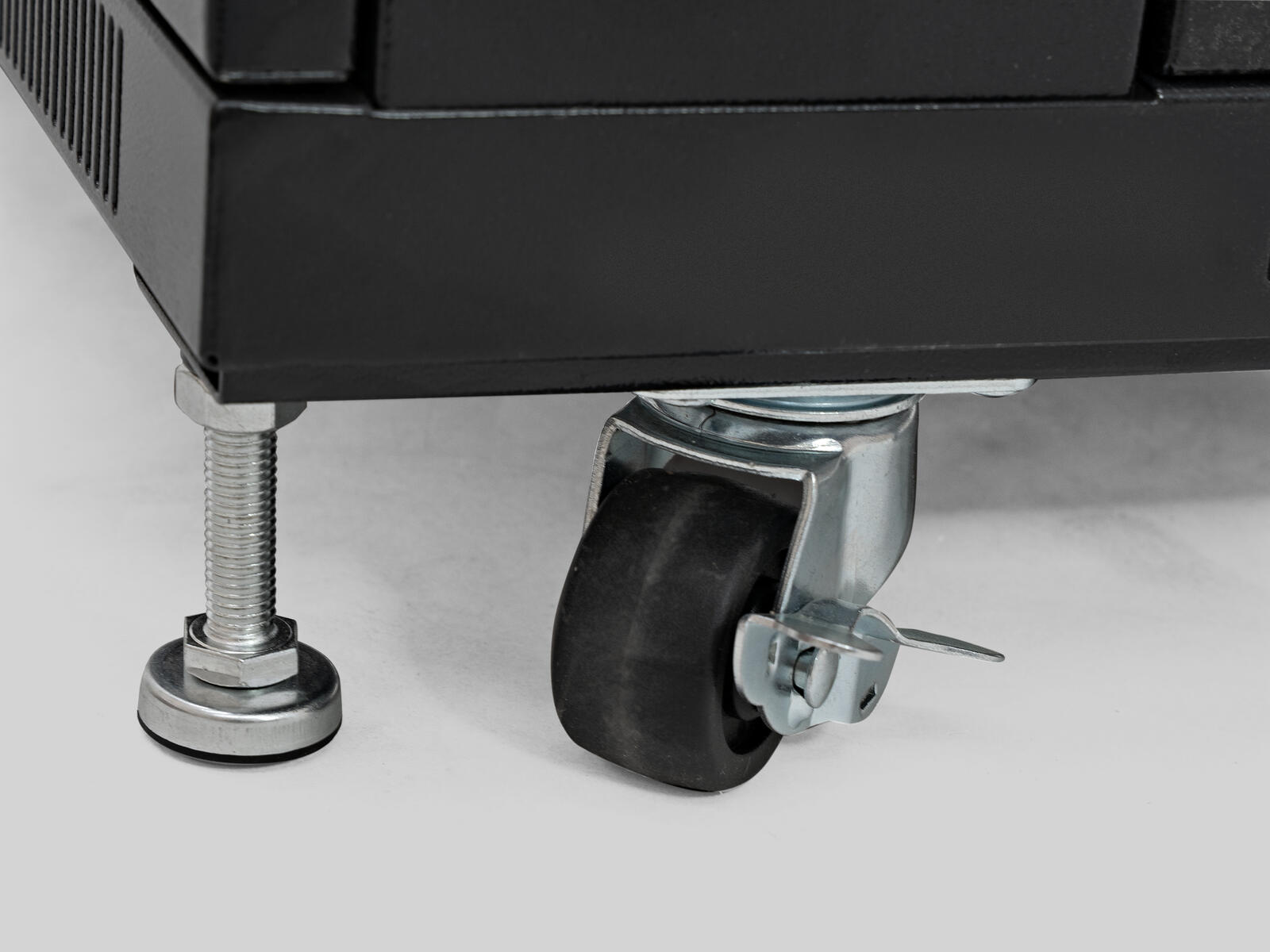

- 4 x castors with 2 locking brakes
- 4 x levelling feet
- Provision for cable inlets

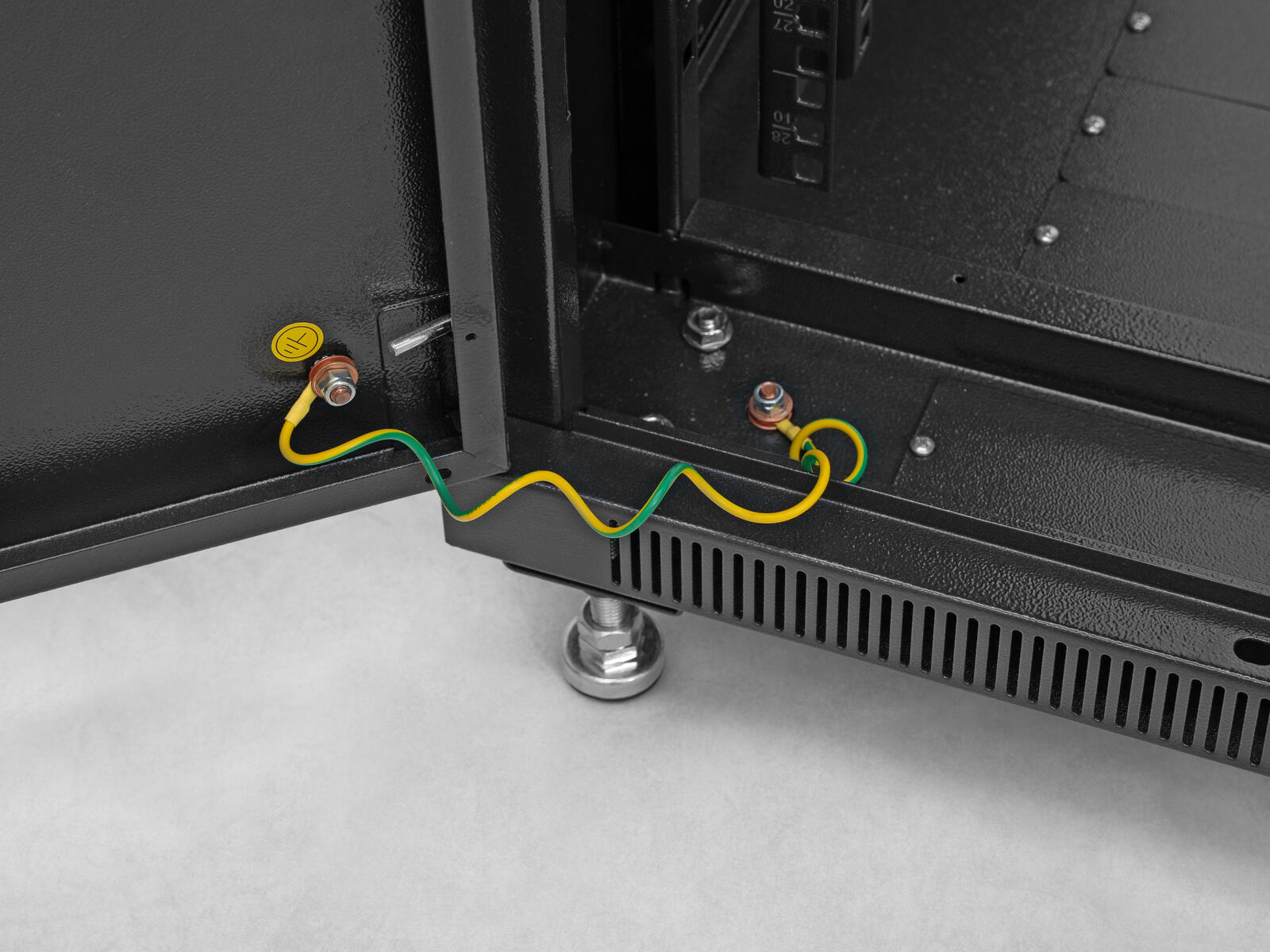

- With earthing screw
- The device is cooled by cooling fan
Scope of delivery
1 x ROADINGER Steel Cabinet Door/Side Panels for SSC-28, 28U
- 2 x door
- 2 x side element
1 x ROADINGER Steel Cabinet Frames for SSC-28, 28U
- 2 x segment
- 4 x flying connector
1 x ROADINGER Steel Cabinet Base and Top Part for SSC Series
- 1 x bottom
- 1 x top
- 4 x castors
- 1 x mounting material
- 4 x flying connector
- 9 x cover
- 1 x user manual
- 1 x cooling fan
- 4 x key
| Maximum load: | 150 kg |
| Material: | Steel |
| Mounting height: | Front approx. 125 cm (28 U) |
| Mounting depth: | 470 mm front side and back side |
| Dimensions: | Width: 60 cm Depth: 60 cm Height: 143.5 cm |
| Weight: | 66.10 kg |
| ROADINGER Steel Cabinet Door/Side Panels for SSC-28, 28U | |
| Door: | Door front panel; door rear panel |
| Mounting height: | Front side and back side approx. 125 cm (28 U) |
| Weight: | 25.50 kg |
| ROADINGER Steel Cabinet Frames for SSC-28, 28U | |
| Weight: | 19.60 kg |
| ROADINGER Steel Cabinet Base and Top Part for SSC Series | |
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 30 W |
| Cooling: | 2 x cooling fan |
| Transport aid: | 4 x castors with 2 locking brakes 4 x levelling feet |
| Weight: | 16.80 kg |
