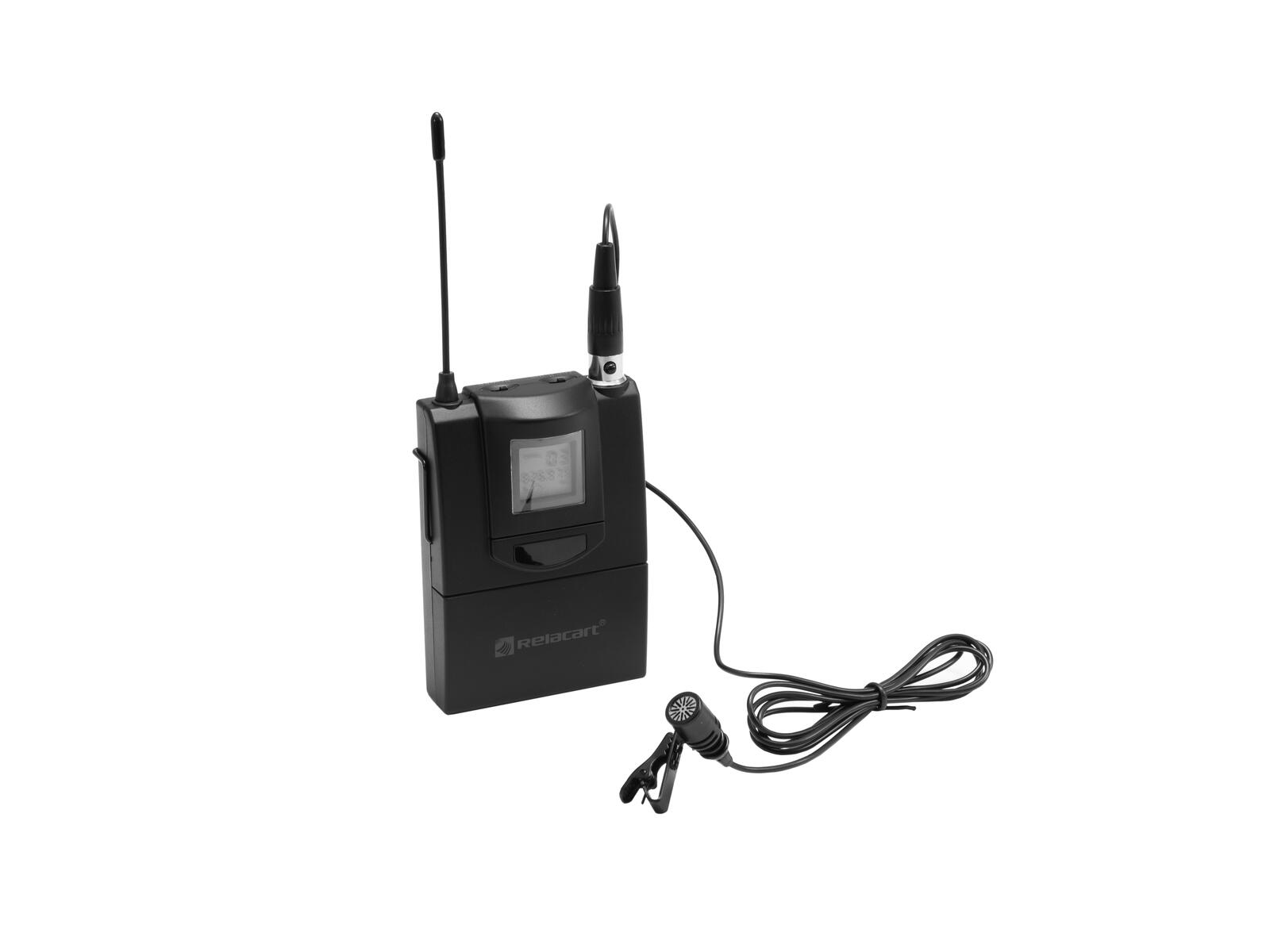

UHF pocket transmitter for model WAM-402, 823-832 + 863-865 MHz
- Pilot frequency squelch technology delete wireless RF interference
- 10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
- Easy and error-free synchronization between receiver and transmitter via infrared signal
- LED for battery status, frequency, channel and group
- UHF 823 – 832 MHz License-free and approved in large parts of Europe
- UHF 863 – 865 MHz License-free and approved in Europe
- Up to 8 transmitters can be operated in parallel without interference
transmitter
- Operating range up to 80m
microphone
- Polar pattern: Cardioid
Scope of delivery
- 1 x transmitter
- 1 x microphone
- 1 x windshield
- 1 x user manual
- 1 x declaration of conformity
| Type: | Bodypack with microphone |
| Power consumption: | 0.42 W |
| Frequency band: | UHF 823 – 832 MHz; UHF 863 – 865 MHz |
| Switching bandwidth: | 11 MHz |
| Parallel mode: | Max. 8 transmitter |
| RF power output: | 10 mW |
| Modulation: | FM |
| Frequency selection: | 90 switchable frequencies In 10 groups with up to 10 preset frequencies each |
| Weight: | 0.11 kg |

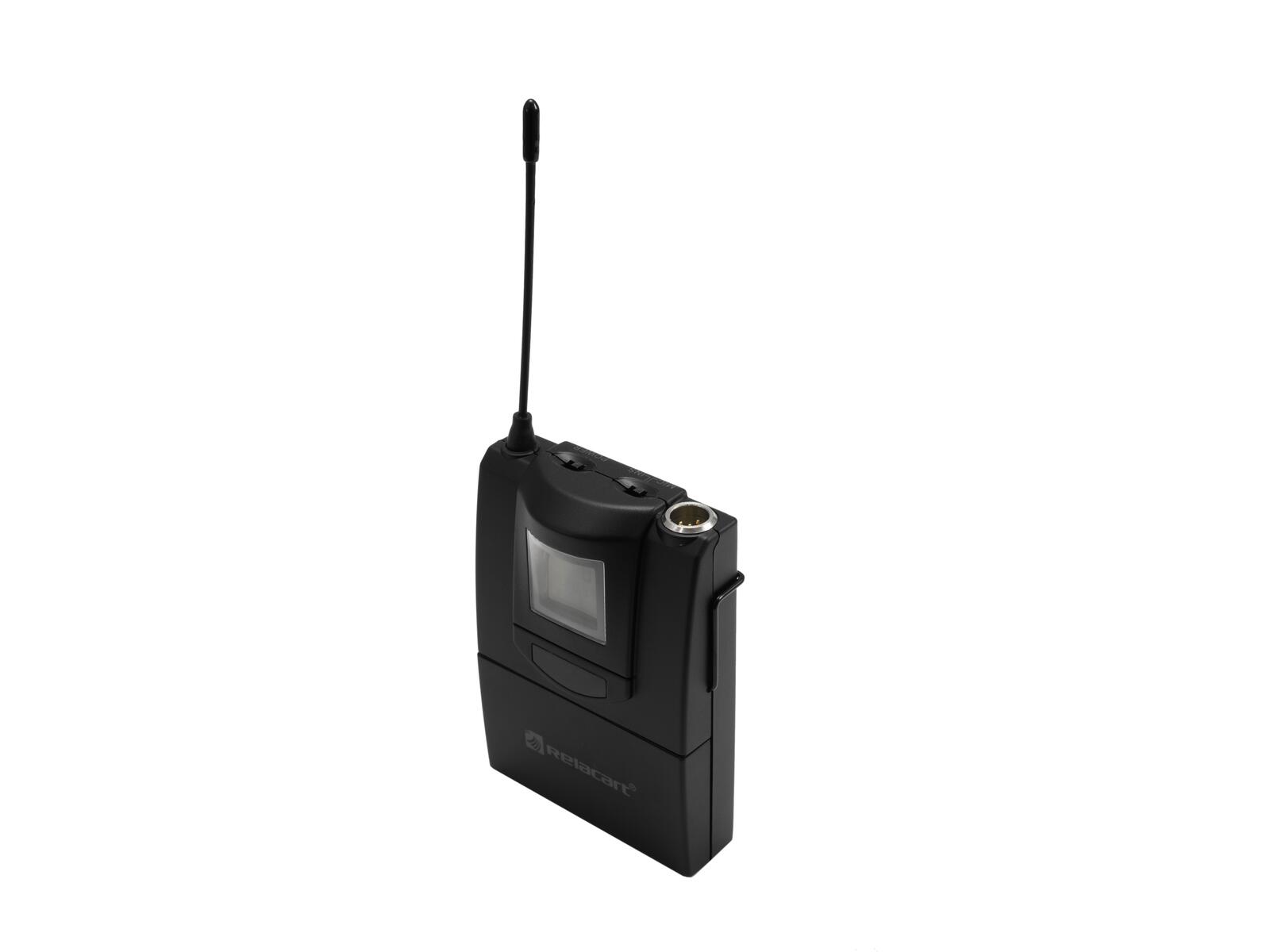

| Transmitter | |
| Power supply: | 3V DC |
| Power connection: | Battery/battery pack |
| Battery: | 2 x Mignon (AA) (not included) |
| Range: | Range up to 80m |
| Control elements: | Transmitter power switch (high-low) |
| Switch: | On/off switch; Mic/Ins switch |
| Material: | Plastic |
| Color: | Black |
| Dimensions: | Width: 6.5 cm Depth: 2.5 cm Height: 9.5 cm |
| Weight: | 0.086 kg |

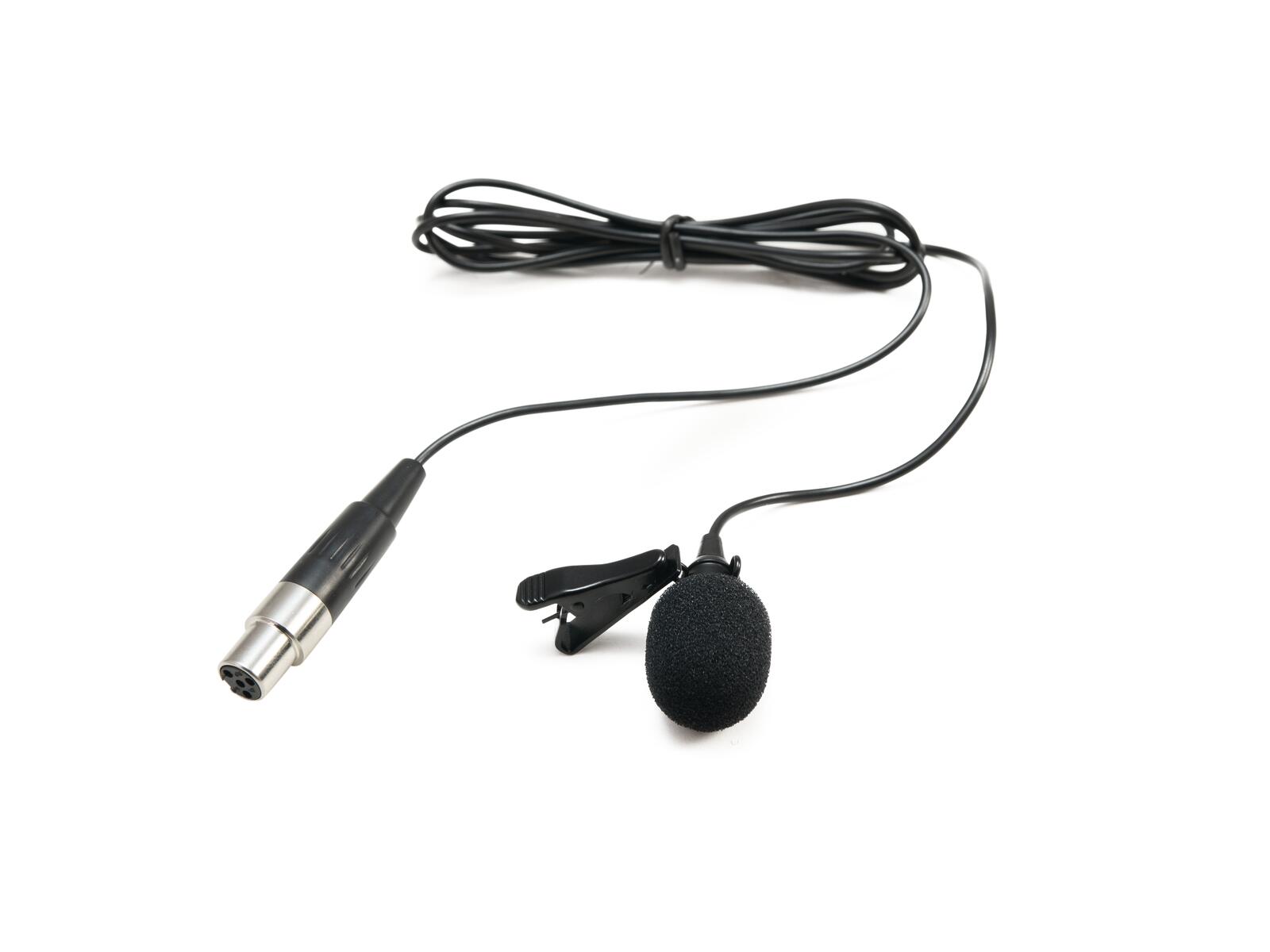

| Microphone | |
| Type: | Lavalier microphone |
| Cable length: | 1.20 m |
| Capsule type: | Electret |
| Polar pattern: | Cardioid |
| Frequency range: | 60 – 12000 Hz |
| Sensitivity: | -42 dB |
| Connector type: | Mini XLR (F) 4-pin |
| Material: | Metal |
| Color: | Black |
| Weight: | 0.020 kg |
