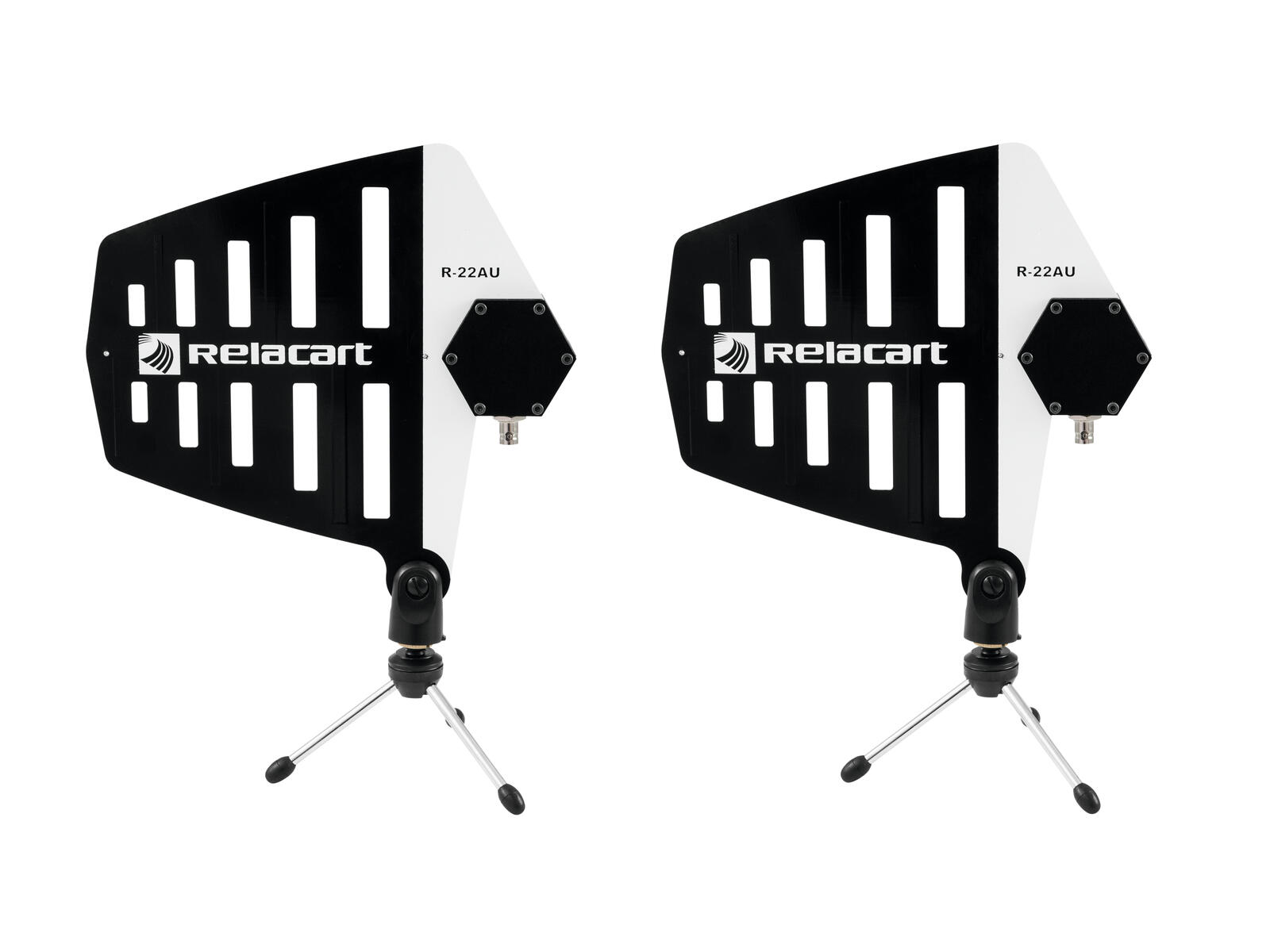

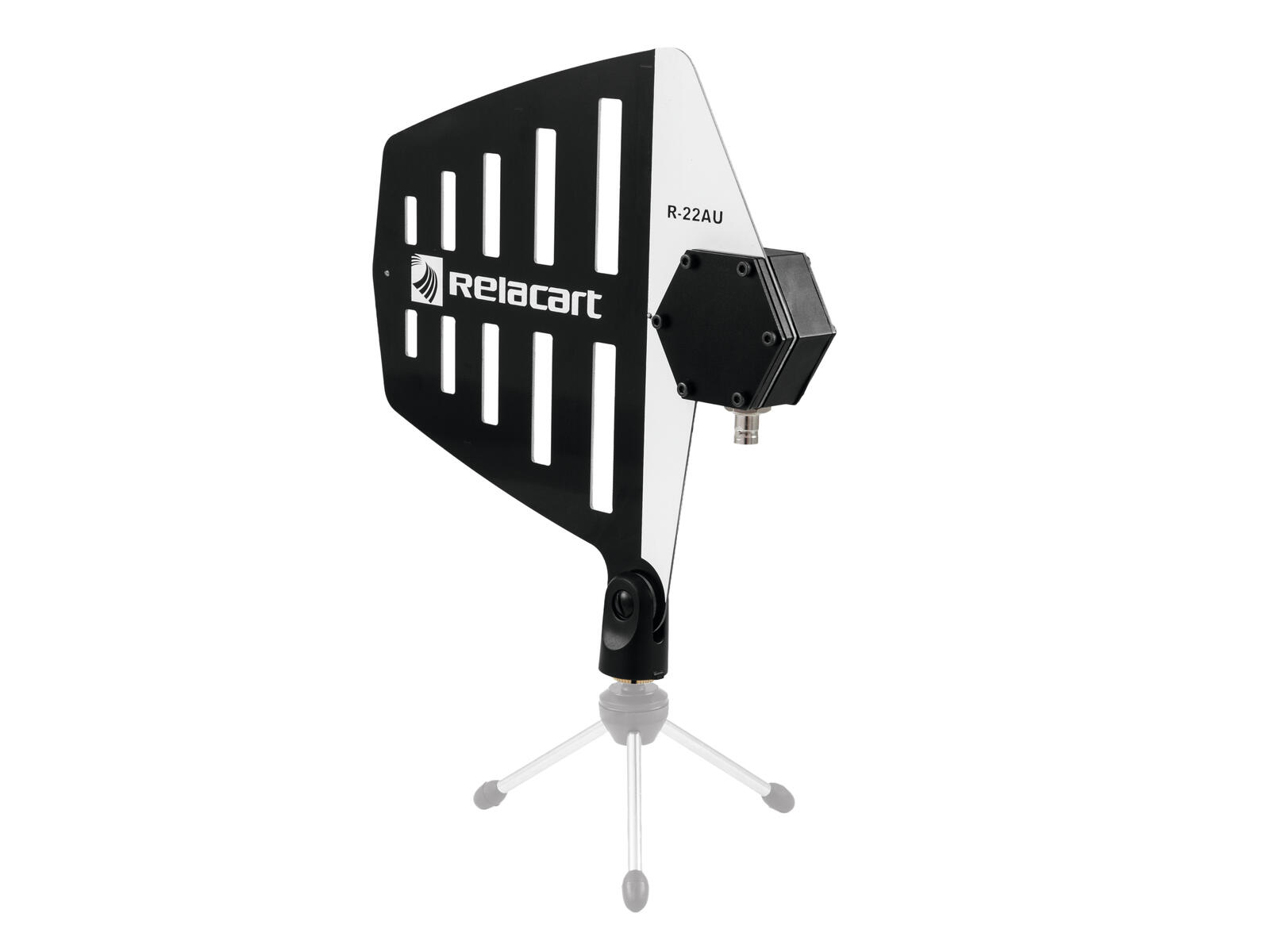

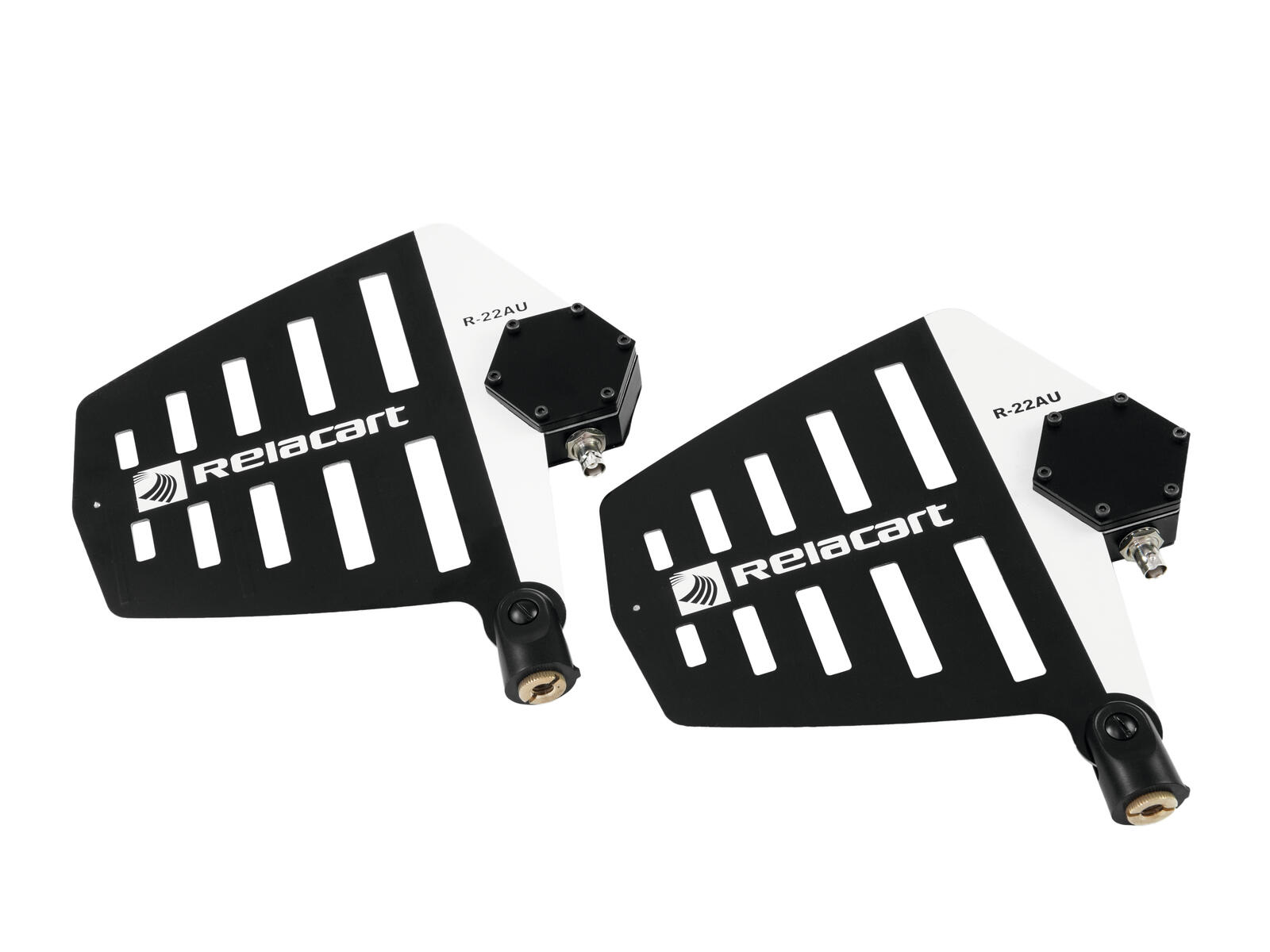

Wide-band directional antenna
- Active directional antennas with built-in booster
- For use with the RELACART R-14D antenna distributor
- 1.5 cm (5/8") thread
- Polar pattern: Cardioid
Scope of delivery
- 2 x antenna
- 2 x adapter
- 1 x user manual
- 1 x declaration of conformity
| Type: | Antennas and distributors |
| Power supply: | 8-12V DC |
| Polar pattern: | Cardioid |
| Impedance: | 50 Ohm |
| Gain: | Output: 5 dB to +13 dB |
| Frequency band: | UHF 640 – 950 MHz |
| Antenna gain: | 6 dBi |
| Attachment system: | 5/8 inch thread 3/8 inch to 5/8 inch adapter |
| Control elements: | Transmitter power switch (high-low) |
| Connections: | Output: antenna via BNC (F) Input: 8-12 V |
| Dimensions: | Width: 23.7 cm Height: 24.5 cm |
| Weight: | 0.69 kg |
